3M Dynatel 955 User Manual

Operation
Section 1
Page 35

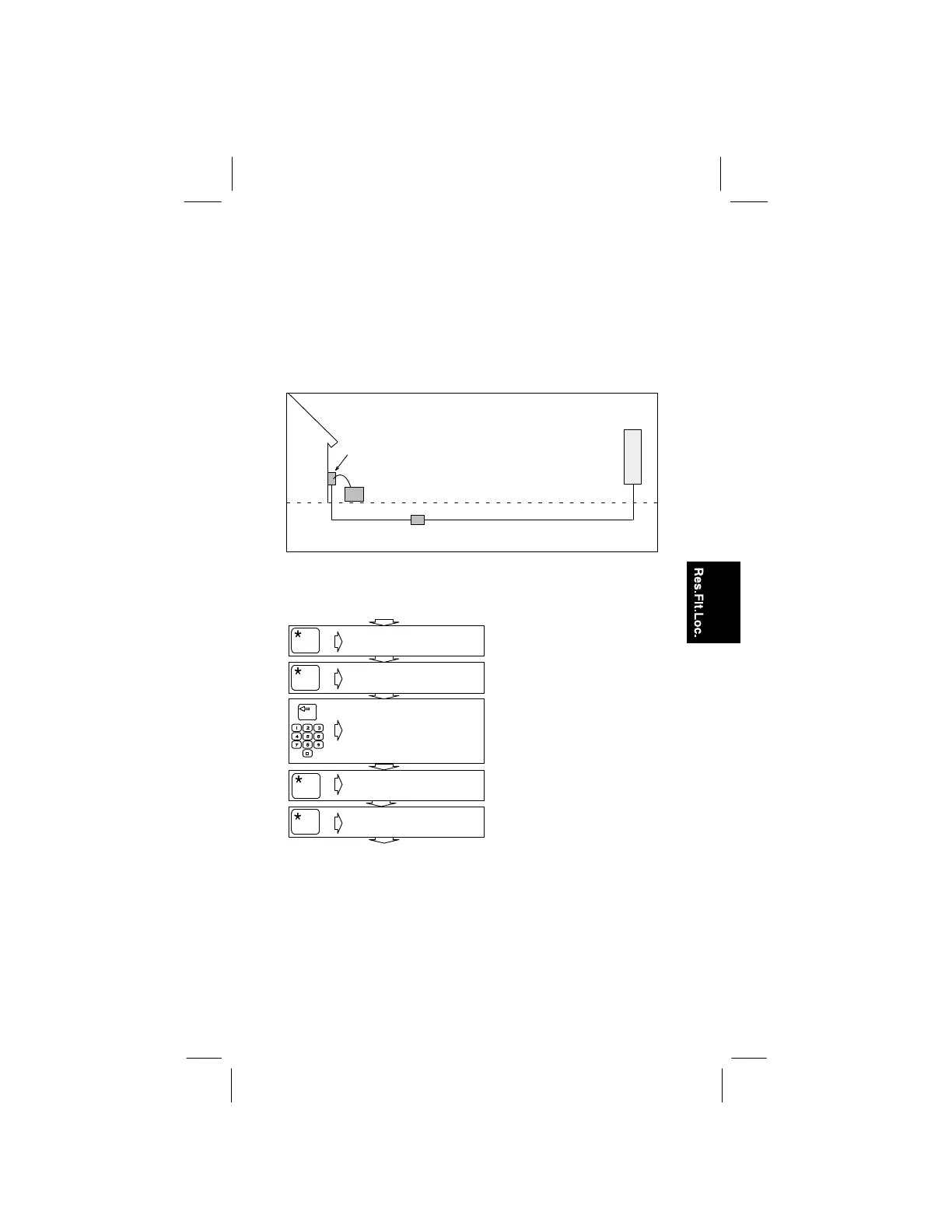

RFL Example 4, continued
Splice Locate – Multiple Gauge
4. Complete the setups:
26 AWG or .4 mm
“unknown”
“unknown”
Test Set
House
Protector
24 AWG or .511 mm
Strap
Stored setups –
splice locate
Cable temperature
Enter DTS (distance
to straps)
Select hookup –
separate good pair
Use arrow keys to
move cursor; use
keypad to enter DTS:
2500 ft or 762 m
Use the arrow keys to see
the rest of the setups.
Use the default, 21
° C or
70
° F , for this example.
continued from previous page...
continued on next page...
