Operation
Section 1
Page 36

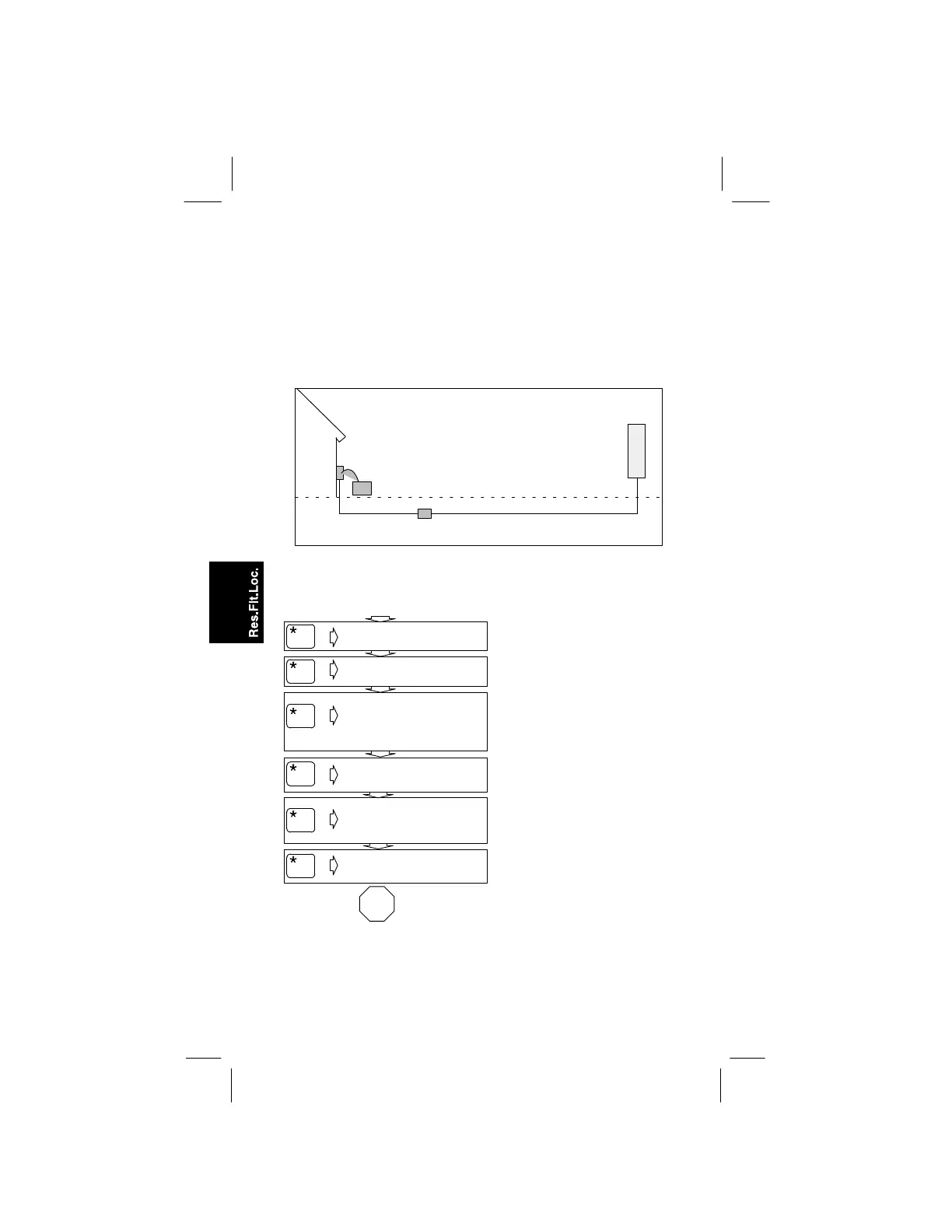

RFL Example 4, continued
Splice Locate – Multiple Gauge
5. Hookup and measurement:
Test Set
Sec. 1 = 330 ft/114 m
Sec. 2 = 2121 ft/648 m
Results:
330 ft/114 m
Strap
26 AWG or .4 mm24 AWG or .511 mm
2121 ft/648 m
Hookup instruction
Additional message,
if any
Fault resistance,
strap checks
Calculated Splice
Sec 1=330 ft/114 m
Sec 2=2121 ft/648 m;
DTS=2500 ft/762 m
DTF=360 ft/115 m
STF=2140 ft/647 m
DTS=2500 ft/762 m Sec 2
Do Fault Locate
End
of Test
In this example, the display
shows that the fault is in
section 2.
continued from previous page...
In the field, you would use
the arrow keys here to view
the rest of the instructions
and continue making the
hookup as instructed.
The numbers displayed may
vary due to variations in the
resistors in the Cable Self Test
Circuit. See page 85 for limits.
