3M Dynatel 955 User Manual

Operation
Section 1
Page 58

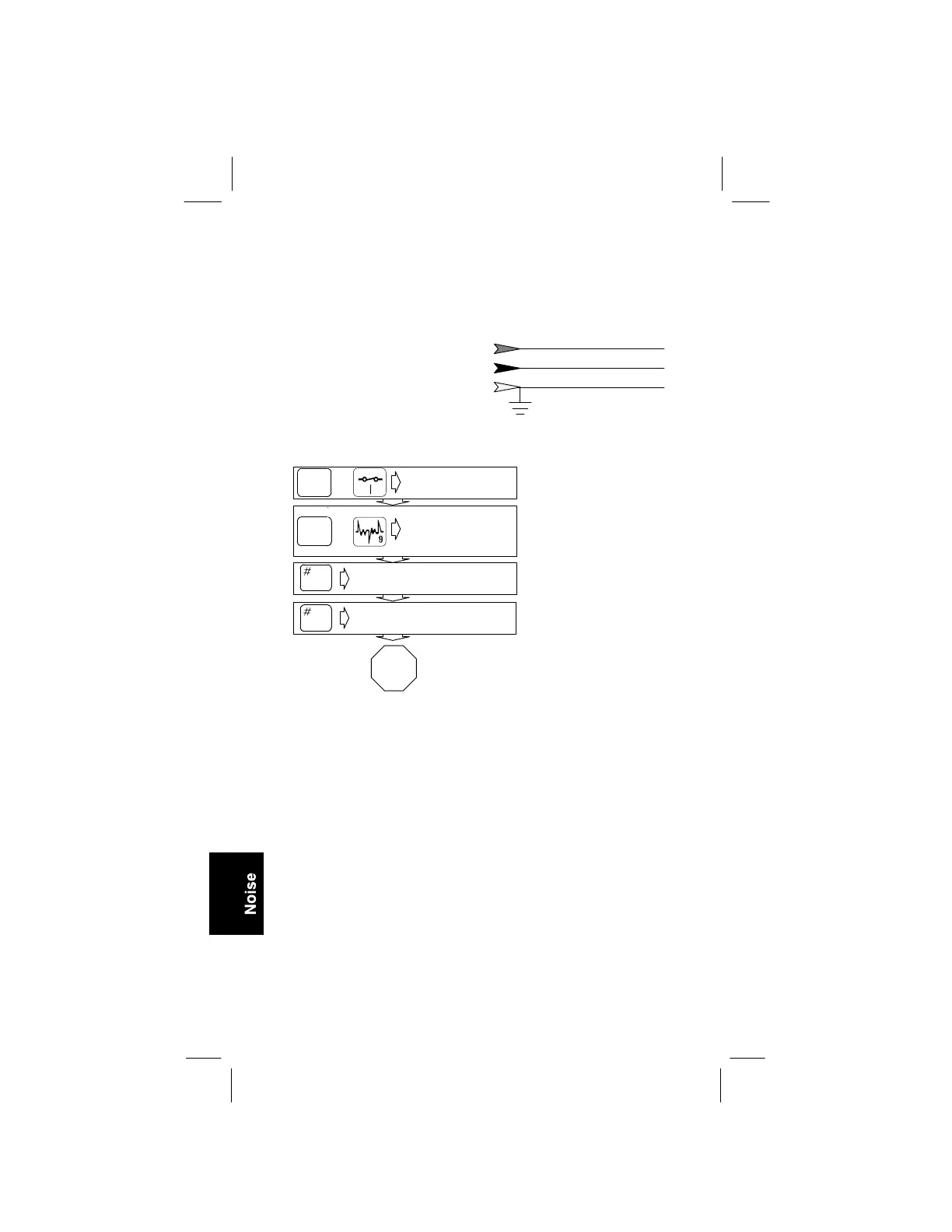

Noise Routine – Measure Longitudinal
Balance
1
RED to RING
BLACK to TIP
GREEN to GROUNDED SHIELD
Hookup:
R
B
G
1
Longitudinal balance test in accordance with
ANSI/IEEE standard 455–1985.
The unit measures
longitudinal balance
and displays the results.
The results are
continuously updated
on the screen.
On
Reset
Disregard this step if the
unit is on.
Turn unit on.
Select to dial or
measure.
You can press the *
(star key) to use the
dial function.
Unit measures, displays
longitudinal balance.
End
of
Test
Select to measure
noise or longitudinal
balance.
Noise
You can press the #
(pound key) to measure
longitudinal balance.
OR
OR
