3M™ Dynatel™ Advanced Modular System 965AMS VDSL2 Service Module User’s Guide
VDSL2 Service Module
Introduction
The VDSL2 Service Module is used with the 3M™ Dynatel™
Advanced Modular System 965AMS to test and troubleshoot
both xDSL circuits and ethernet networks.
DSLAM
DSL
Modem
Computer
Test Leads or
RJ-11 Adapter
RJ-45 Adapter

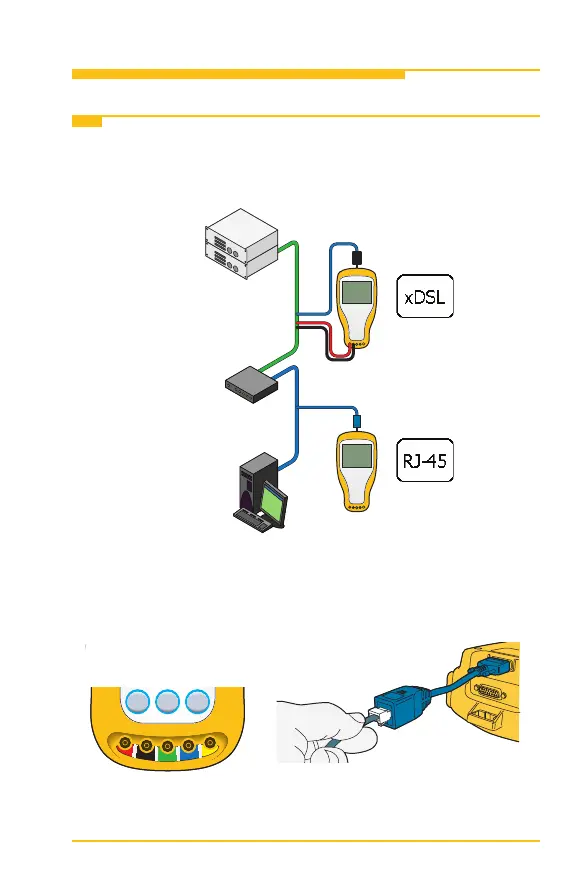

When testing xDSL circuits, the tester can be connected using
either the regular test leads, or with the RJ-11 adapter.
Ethernet networks are only connected through the RJ-45 adapter.
