Operator’s Guide
3M
™
Super Close Projection System SCP725
© 3M 2011. All Rights Reserved.
ENGLISH

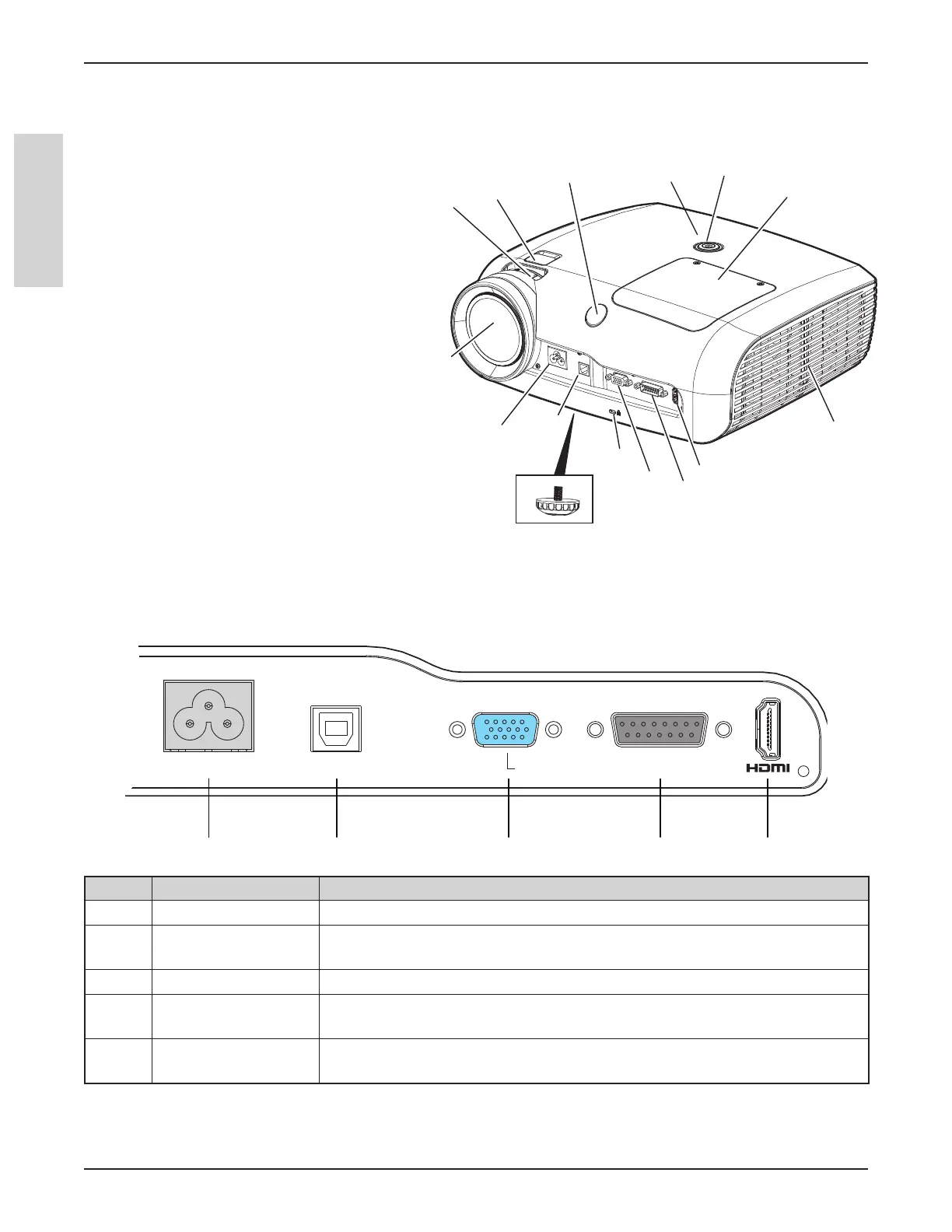

Parts Identification
1. Super Close Projection Lens
2. Focus Adjustment
3. Lens-shift
4. Remote Control IR Sensor
5. Status Indicator Light
6. Standby/On Button
7. Lamp Cover
8. Ventilation Slots
9. HDMI Port
10. Control Input
11. Computer/Component Input
12. Slot for Kensington
™
Lock
13. USB Port (For remote mouse functionality)
14. AC Power Cord Connection
15. Height Adjustment Foot
1
14
13
12
11
9
2
3
4
5
6
15
7
8
10
Projector Terminal Connections
1 2 3 4 5
AC Power USB
Computer
I/O Module Control
# Projector Panel Function
1 A/C Power Connect AC power cord to projector.
2 USB Connect projector USB (B-type) to computer USB port to control computer
pointer with remote control.
3 COMPUTER Input VIDEO signal from a computer source.
4 I/O Module Control Connect projector control port to computer serial port with RS232 adapter or
the 3M I/O Module and control the projector.
5 HDMI Connect the projector a HDMI video source or DVI-D video source. The
SCP725 does not connect audio through the HDMI port.
