Installation Instructions
www.3ware.com 105
9 Insert the battery power connector into the power receptacle on
the BBU.

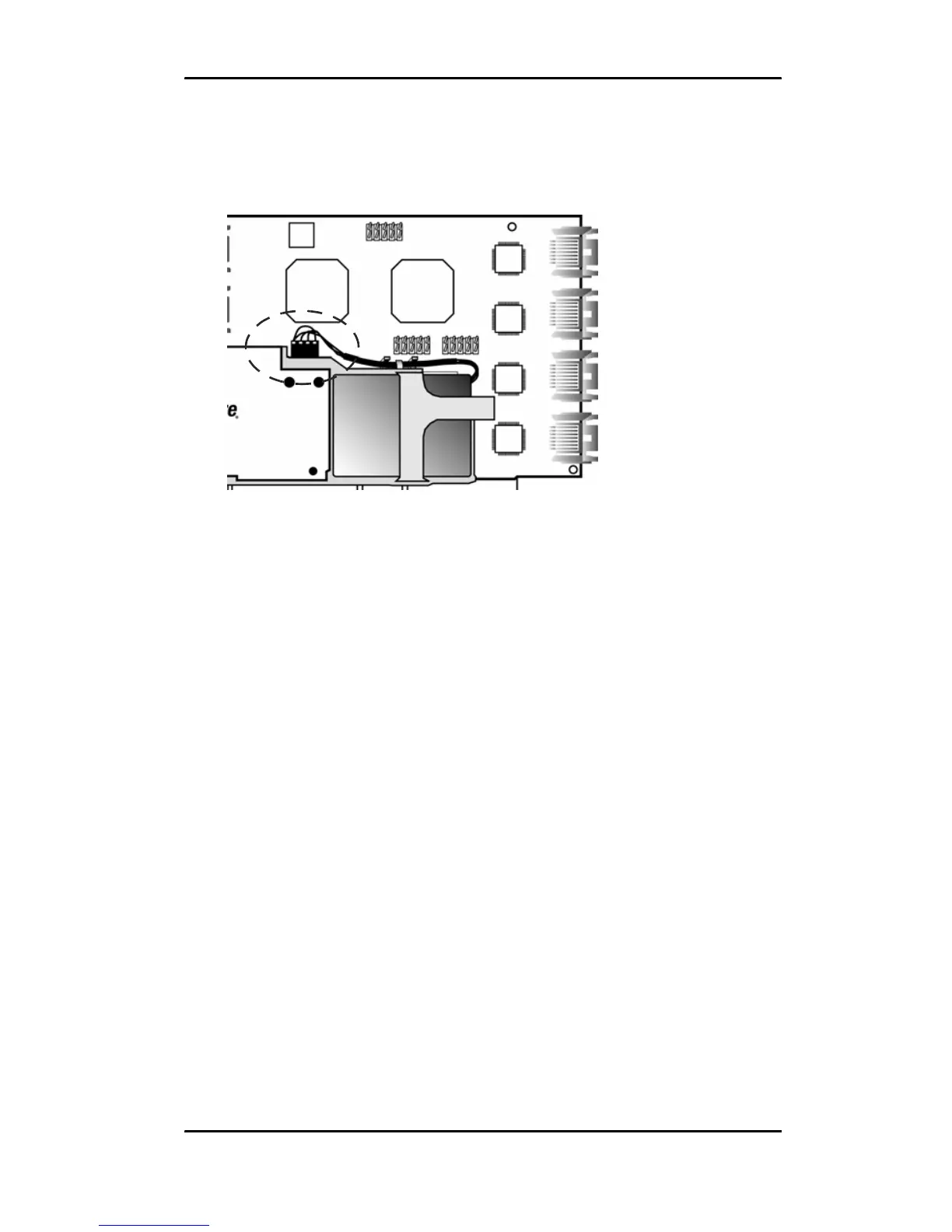

Figure 9. Battery power connector and power receptacle
The controller is now ready to install in your system. Figures 10
and 11 show the BBU fully installed on 3ware controllers.
You can check the status of the battery, and run a battery test to
determine if the battery needs to be replaced. For details, see
3ware 9000 Series Serial ATA RAID Controller User Guide.
