HoloSea S7 2 INTRODUCTION

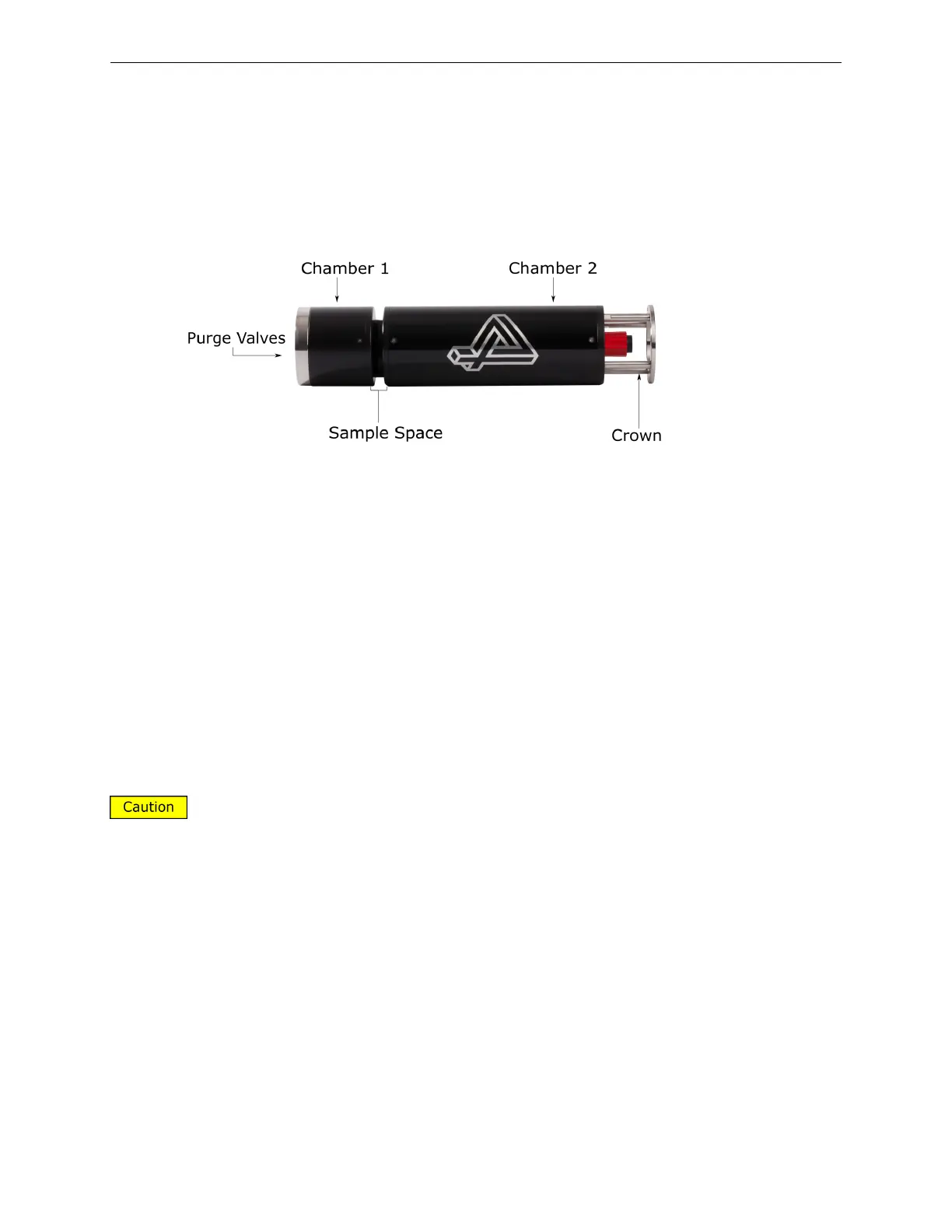

Figure 5: HoloSea components
2.5.1 Chamber 1
This Chamber contains a digital camera. The camera’s image sensor is protected by a sapphire
glass window. The sapphire window also has a copper ring around it, to reduce the effect of
biofouling on the instrument (shown in Figure 6).
This window is the most fragile external component of the microscope, and must be
handled carefully.
7
