STEREO RETURNS
Connector 2 x balanced 6,35mm (1/4”)
Impedance 10 kΩ
Frequency response 20~20kHz +/-1dB
Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
Gain OFF~+15dB
DSP
A/D - D/A converters 24 bit
Number of effects 16 for 6FX – 100 for 8Fx and 12FX
Controls
Presets rotary selector - 16 position (6FX)
or 100 position (8FX & 12FX)
DFX MUTE footswitch
DFX MUTE switch
DFX button (only 8FX & 12FX)
OUTPUTS
MAIN MIX connectors 2 x TRS 6,35mm (1/4”) connector (XLR in 12FX)
MAIN MIX max output level +22 dBu XLR balanced (+16 dBu unbalanced)
MAIN MIX output impedance 120 Ω
GR1-2 in connectors
(12FX only)
2 x TRS balanced 6,35mm (1/4”)
GR1-2 max output level
(12FX only)
+22 dBu XLR balanced (+16 dBu unbalanced)
GR1-2 output impedance
(12FX only)
120 Ω
Headphones connector Unbalanced TRS 6,35mm (1/4”)
Headphones impedance 30 Ω
Control room connectors 2 x balanced TRS 6,35mm (1/4”)
Control room impedance 120 Ω
2-TK connectors 2 x unbalanced RCA
2-TK impedance 1 kΩ

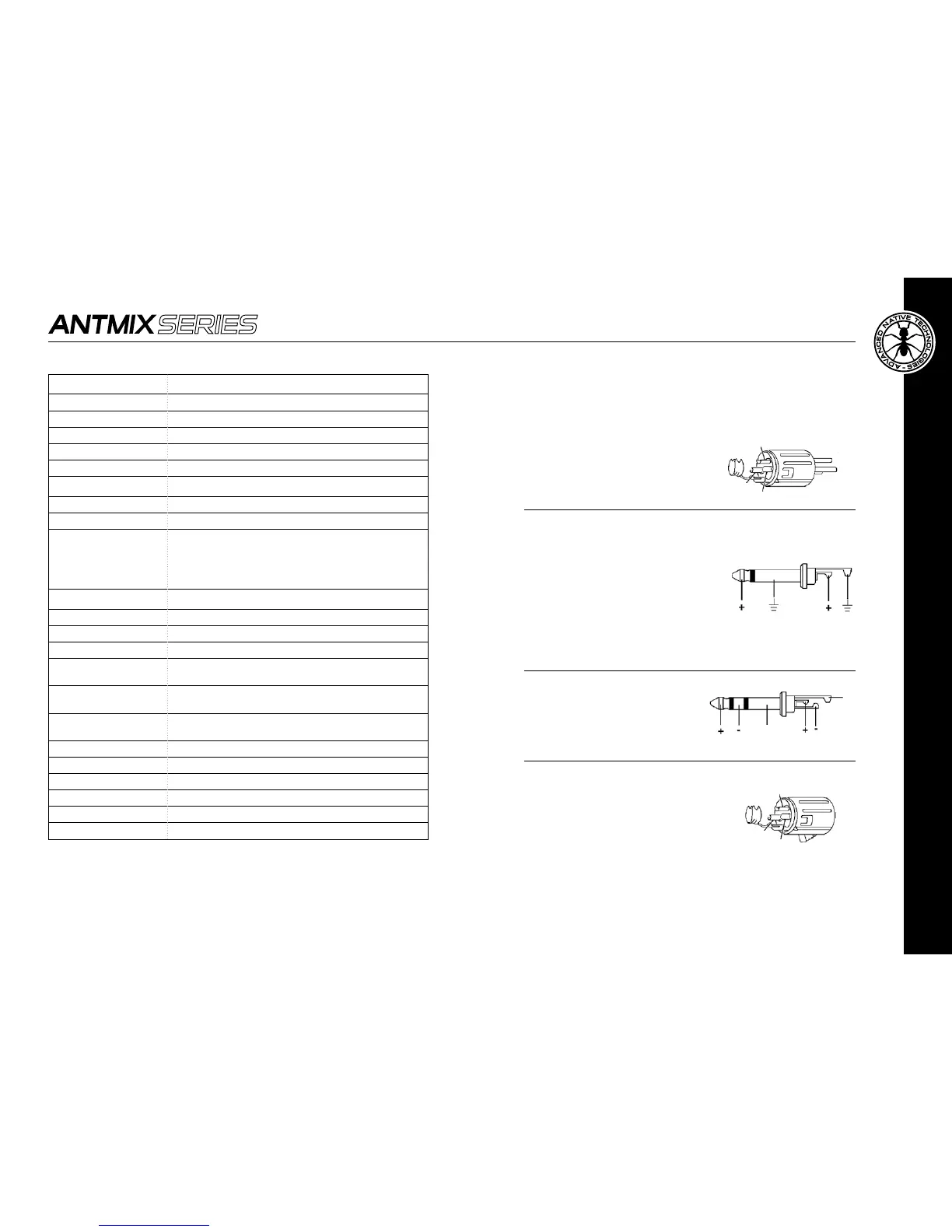

6 | CONNECTORS
A BALANCED XLR-M
MICROPHONE INPUT- MONO AND MONO/STEREO CHANNELS
1 - ground
2 - positive (or hot)
3 - negative (or cold)
B TS JACK
DFX SEND - Master section
STEREO RETURN - Master section
CONTROL ROOM - Master section
DFX MUTE - Master section
MAIN MIX OUT - 6FX and 8FX
GROUP OUT - 12FX only
AUX SEND - 12FX only
C TRS JACK
Line input - all channels
D BALANCED XLR-F
MAIN MIX OUT - 12FX only
1 - ground
2 - positive (or hot)
3 - negative (or cold)
