E TRS JACK
Insert - mono channels
F RCA PLUG
2 TRACK IN - Master section
2 TRACK OUT - Master section
G STEREO JACK
Phones - Master section
OUT
OUT
GND
tip (out)
tip
ring (in)
ring
MONO JACKS
STEREO JACK
IN
IN
GND
tip (L)
tip
ring (R)
ring
STEREO JACK
• AUX SEND - 12FX ONLY
Connect this output to one or more - daisy-chained– monitors.
FIG. B | MAIN MIX OUT
Connect MAIN MIX (XLR-M for 12FX, balanced jack for 6FX e 8FX) outputs
to powered speakers or ampliers.
• MAIN MIX OUTPUT FOR 6FX AND 8FX

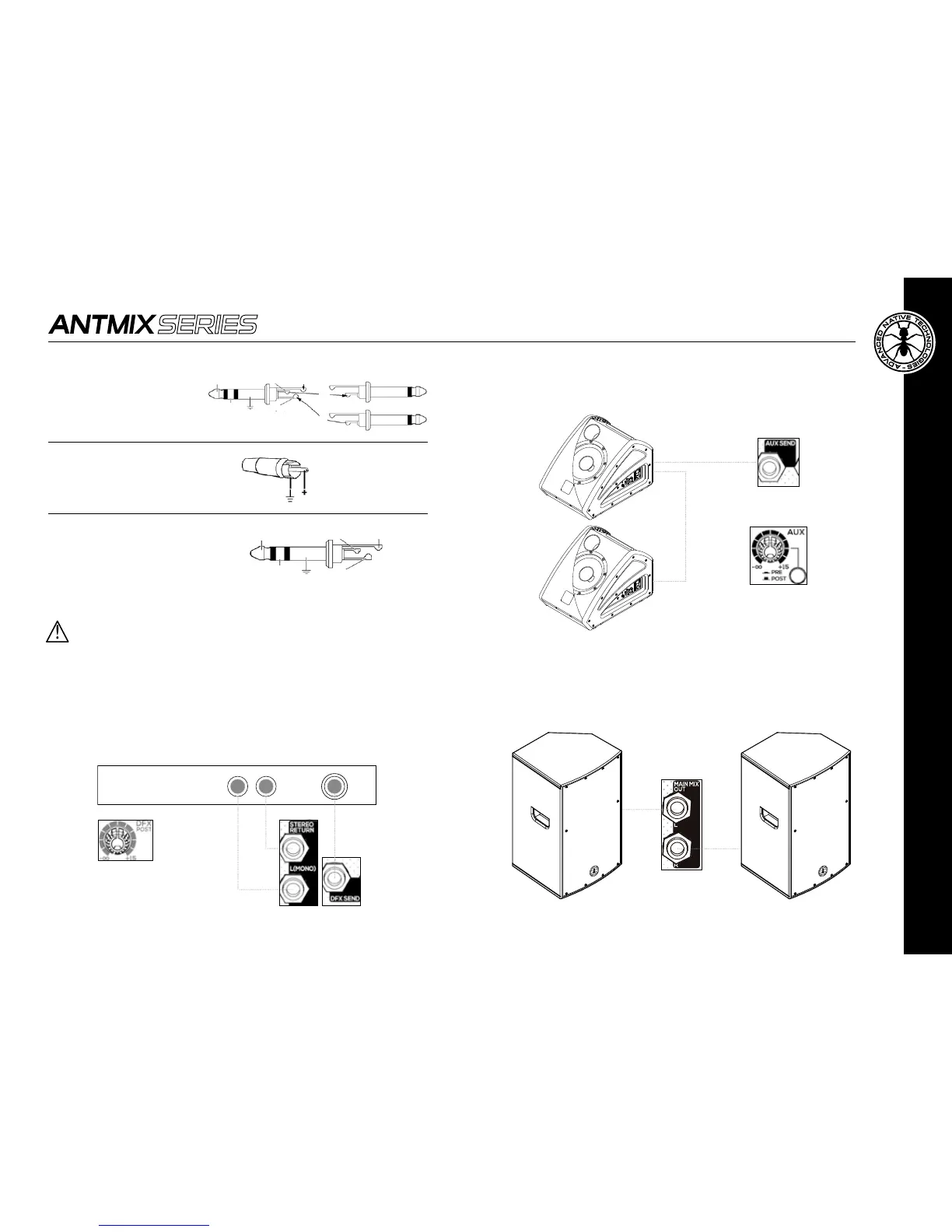

7 | SYSTEM CONNECTIONS
Check the correct functioning of the cables and always connect the cables
properly according to the type of device and the mixer input/output.
Always use good quality cables.
FIG. A | AUX / DFX POST
• DFX POST send
Connect to this output to an external effects unit.
Connect external effects unit outputs to STEREO RETURN inputs.
