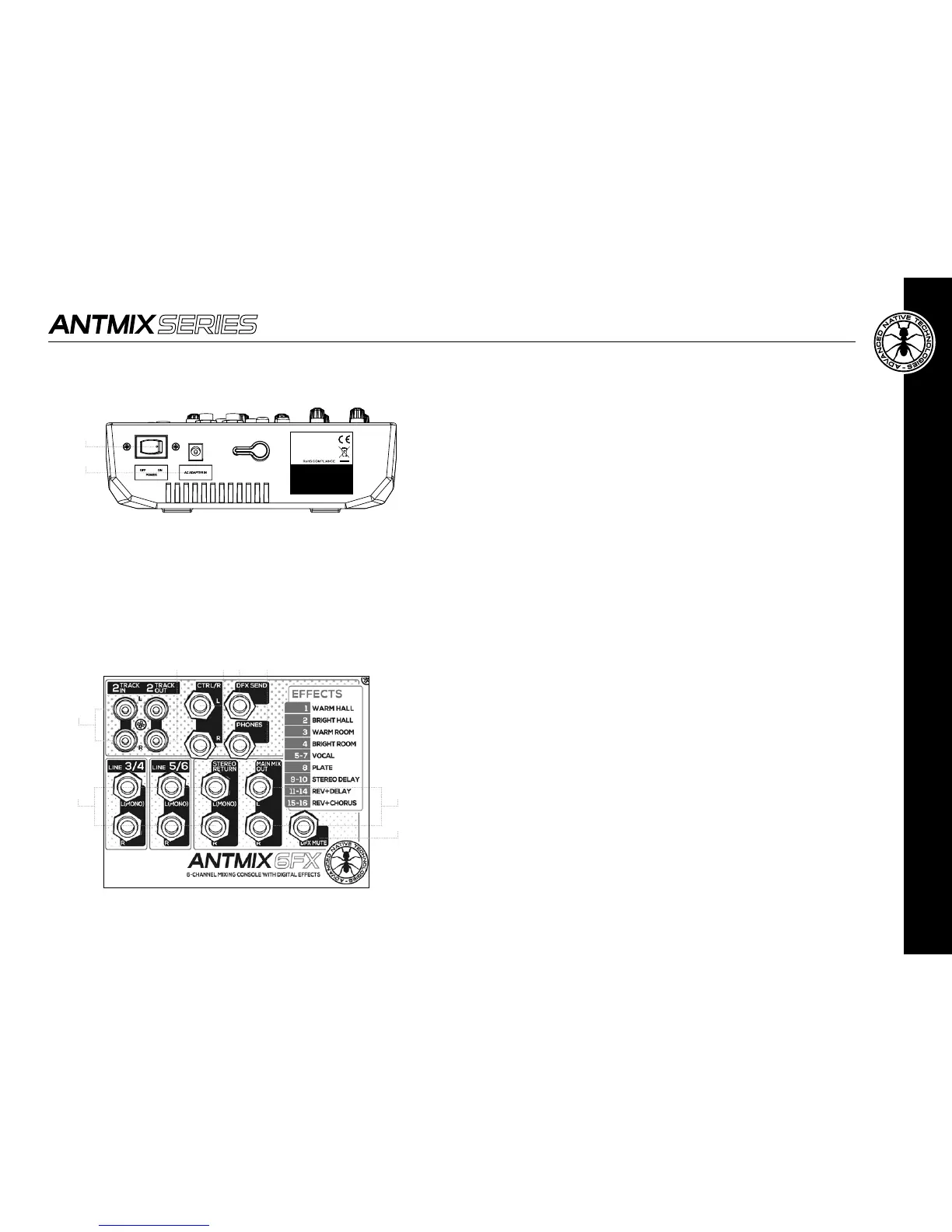

3.1.4 | 6FX - POWER SUPPLY AND MASTER SECTION
1 POWER ON/OFF
Press this switch, located on mixer rear panel, to turn ON or OFF the unit.
2 AC ADAPTER IN
Connect only the power supply provided to this socket.
WARNING: to prevent accidental unit switch-off, x the cable to the rear panel hook.
3 2-TRACK IN
Unbalanced line input with RCA L/R sockets.
Connect to this socket the output of a hi- equipment (CD) or other device
with RCA outputs.
4 2-TRACK OUT
Unbalanced line output with RCA L/R sockets.
Connect these outputs to a hi- device, e. g. a recorder; the output level is
set by MAIN MIX control.
5 CTRL/R
CONTROL ROOM output with two 6.35 mm. (1/4”) line sockets.
This output allows you to connect a second set of powered speakers with
independent level control from the master, thus creating two separate
listening zones with different volumes. In recording studio applications the
typical use is for studio monitors. This output volume is adjusted by the knob
PHONES - CTRL / ROOM, regardless of the amount of the MAIN MIX outputs.
6 DFX SEND
6.35 mm. (1/4”) output socket.
Connect this output to your external effects units, if any.
The output signal is the sum determined by the DFX sends for each channel.
7 PHONES
Output for connection to an headphones with 6,35mm. (1/4”) jack.
WARNING: Carefully adjust the volume of PHONES CTRL/ROOM knob, thus
avoiding temporary or permanent damage to your hearing
8 STEREO RETURN
Two 6.35 mm. (1/4”) output sockets. Connect these inputs to the outputs
of an external effects or a further stereo device.
9 MAIN MIX OUT
Two 6.35 mm. (1/4”) output sockets. Connect these outputs to the inputs
of your sound system.
10 DFX MUTE
Footswitch 6.35 mm. (1/4”) TS socket. It allows to mute the internal effects
unit using a footswitch.
