User manual | ANTMIX Series

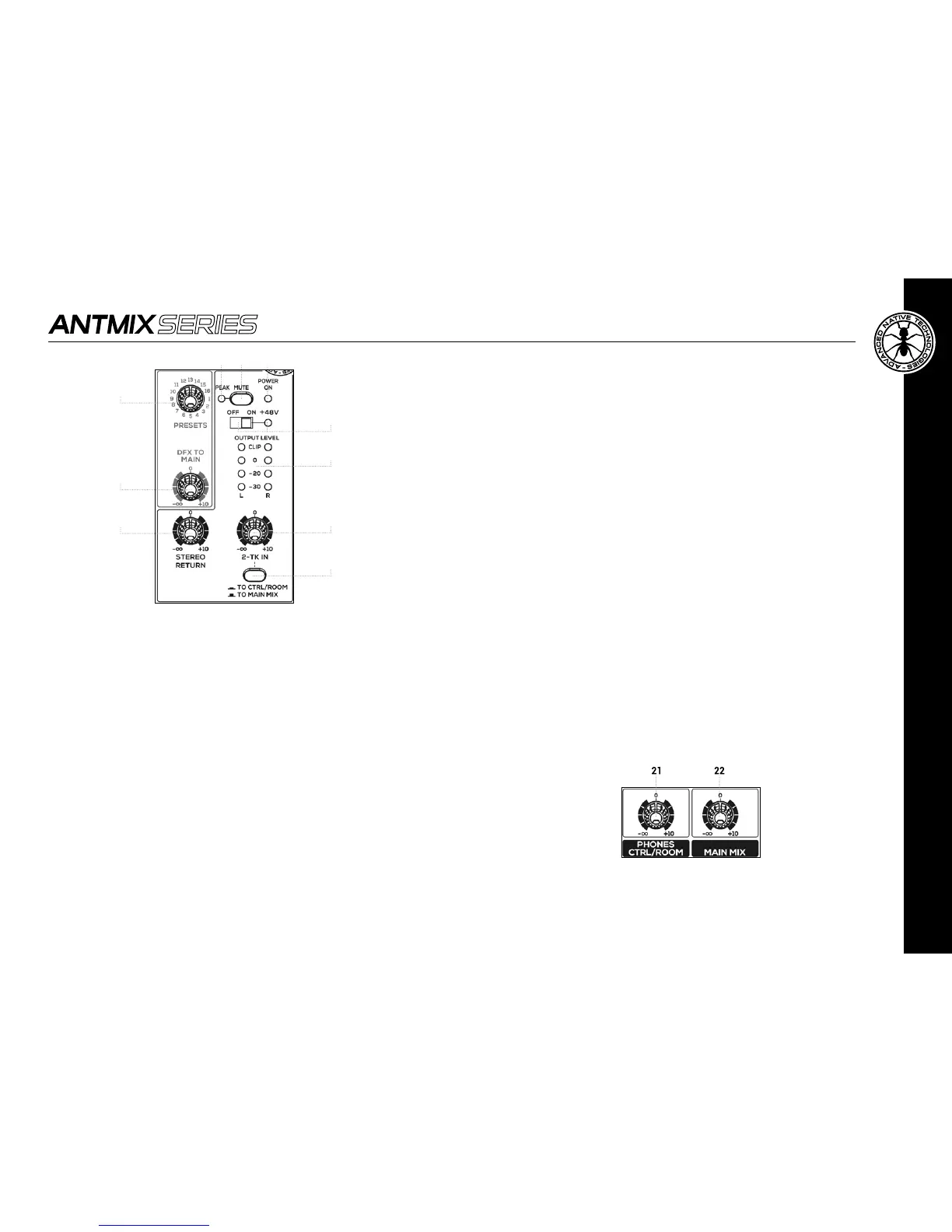

16 POWER ON
This LED is lit green when the mixer is ON.
17 +48V
This two-position switch allows you to turn ON or OFF the phantom power
for condenser microphones:
ON = Switch to the right, LED lit.
OFF = Switch to the left, LED turned off.
WARNING: To prevent loud noises to your sound system, activate the
phantom power only after lowering the levels of the channels and connecting
the microphones.
18 OUTPUT LEVEL
MAIN MIX output level LED indicators.
19 2-TK IN
This knob sets the level of 2-TRACK IN input signal.
20 TO CTRL/ROOM - TO MAIN MIX
Press this switch to assign 2-TRACK IN input signal to CTRL/ROOM or to
MAIN MIX outputs.
21 PHONES CTRL/ROOM
Adjust this knob to set the level for PHONES and CONTROL ROOM outputs.
22 MAIN MIX
Adjust this knob to set MAIN MIX OUTPUT level.
11 PRESETS
This 16 position selector allows you to choose DSP type of effect.
The rst 4 presets emulate different reverbs characterized by sound reflections within
an environment, the next 4 (5-8) are recommended in particular for voice or percussion
in general, stereo delay reproduce the classical delay effect to main signal, nally, there
are the multi-effect combinations (11-16) generally used for complex effects, useful
for voice and a lot of soloist instruments reinforcement.
12 DFX TO MAIN
This knob sets the signal level of the internal effects unit to the main output.
Use it to increase or decrease the amount of processed signal to be sent to the MAIN MIX.
13 STEREO RETURN
This knob sets the signal level of external stereo effects unit to the main output.
Use it to increase or decrease the amount of processed signal to be sent to the MAIN MIX.
14 PEAK
This LED is lit when the signal sent to DFX is too high, and there's a risk to saturate the
internal effect. It's a good setting of the effect sends when the LED flashes occasionally,
only on signal peaks. When the LED remains continuously lit, it is an indication of
saturation. In that case please cut the volume of DFX POST channel sends.
15 MUTE
This button allows you to enable or disable the return signal of the internal effects unit.
