5) Slowlyre‐openthemanualgasvalve.Checktoseethattherearenogasleaks.

6) Opensomeofthefixturesthatusethehighestflowratetoactivate.

7) Checktheinletgaspressure.Appropriatepressuresarelistedinthespecificationpageat

thefrontofthismanual.



PURGETHEGA SLINEOFAIR:

1) Theunitshouldnotberunningduringthisprocedure.Turnoffpowertotheunit.

2) Turnthegasvalvetotheoffposition(perpendiculartothegasline).

3) Loosenthegaslineontheunitsideofthegasvalve(ataflarefittingorunion).

4) Next

openthegasvalveveryslightlyuntilyoucansmellgasbywaftingtheairtowardsyour

nose.Thismeansanyairpreviouslyinthegaslinehasbeenremovedandonlygasremains.

5) Turngasbackoffandre‐tightengasline.

6) Turngasbackonand

checkforleaks.Spraywater&dishsoapmixtureontofittings.No

bubblesmeanstherearenoleaks.



CHECKINGMANIFOLDGASPRESSURE:

1) Ensuretheunitisnotinoperation.

2) Removethescrewoffthemanifoldport.

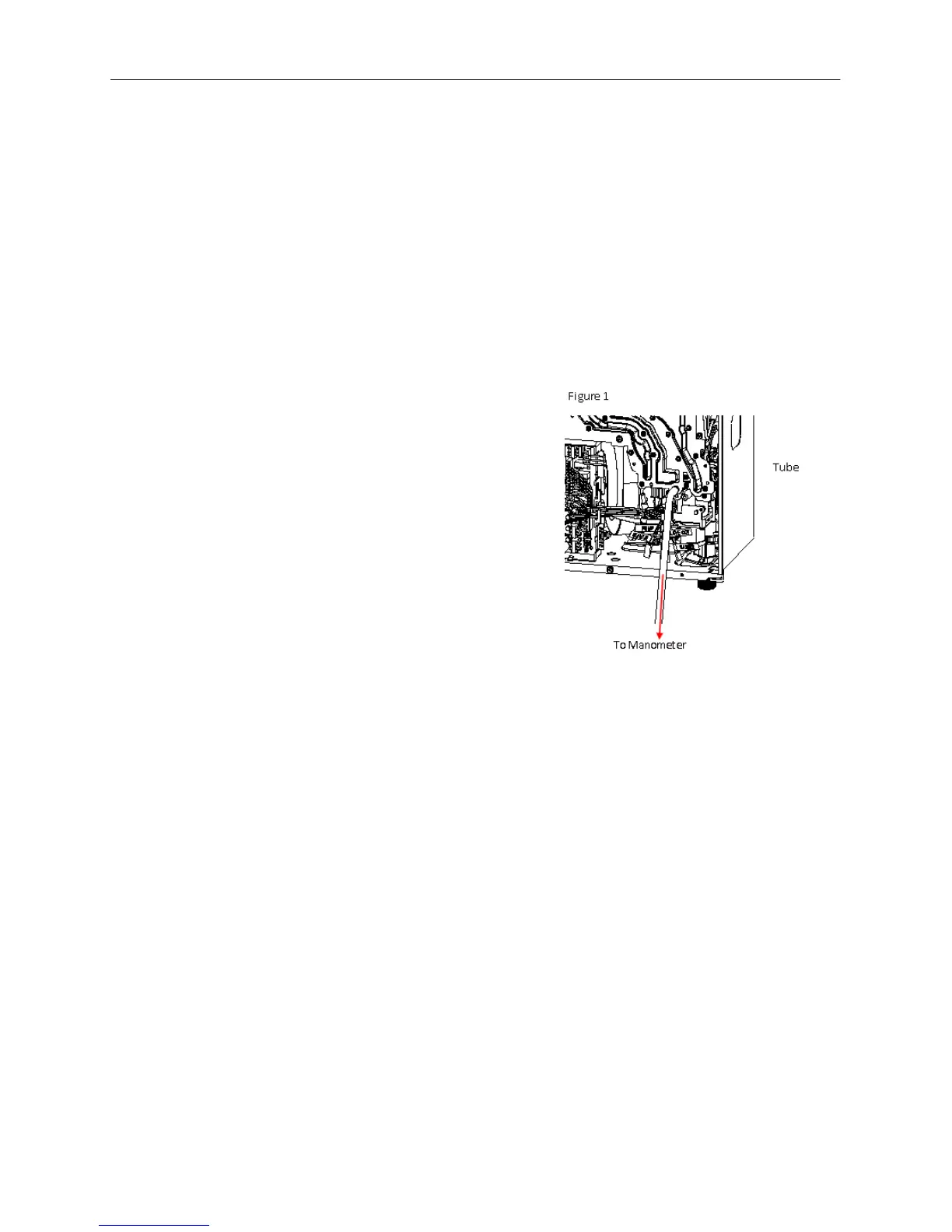

3) Connectamanometertothemanifoldportusing

atube(Figure1).Ensurethatthisconnectionis

secureenoughtopreventgasleak.

4) Runwaterthroughtheunittoactivateits

operation.It

issuggestedthatalargeamountof

flowisdrawninordertopreventoverheating

duringmaxburn.Ifpresenceofagasleakis

detected,immediatelyshutofftheunitand

inspectthetube/manifoldconnection;otherwise,

proceedontothenextstep.

5) Tocheckthemanifoldgaspressureduring

maximumcombustion,pressandholdthe“MAX”

buttononthecomputerboard.Tocheckthemanifoldpressureduringminimum

combustion,pressandholdthe“MIN”buttononthecomputerboard.Thedesired

pressuresarelistedinthespecificationtableatthebeginningofthismanual.

6) Ifthemanifold

pressuresdonotmatchupwiththoselisted, adjustthemanifoldpressure

(seethefollowingprocedure).



Figure19
