MODGAS-XWR2 Technical Guide
COMMUNICATING WIRING
15
Secondary Board 2V2IGN2S - Communicating Wiring

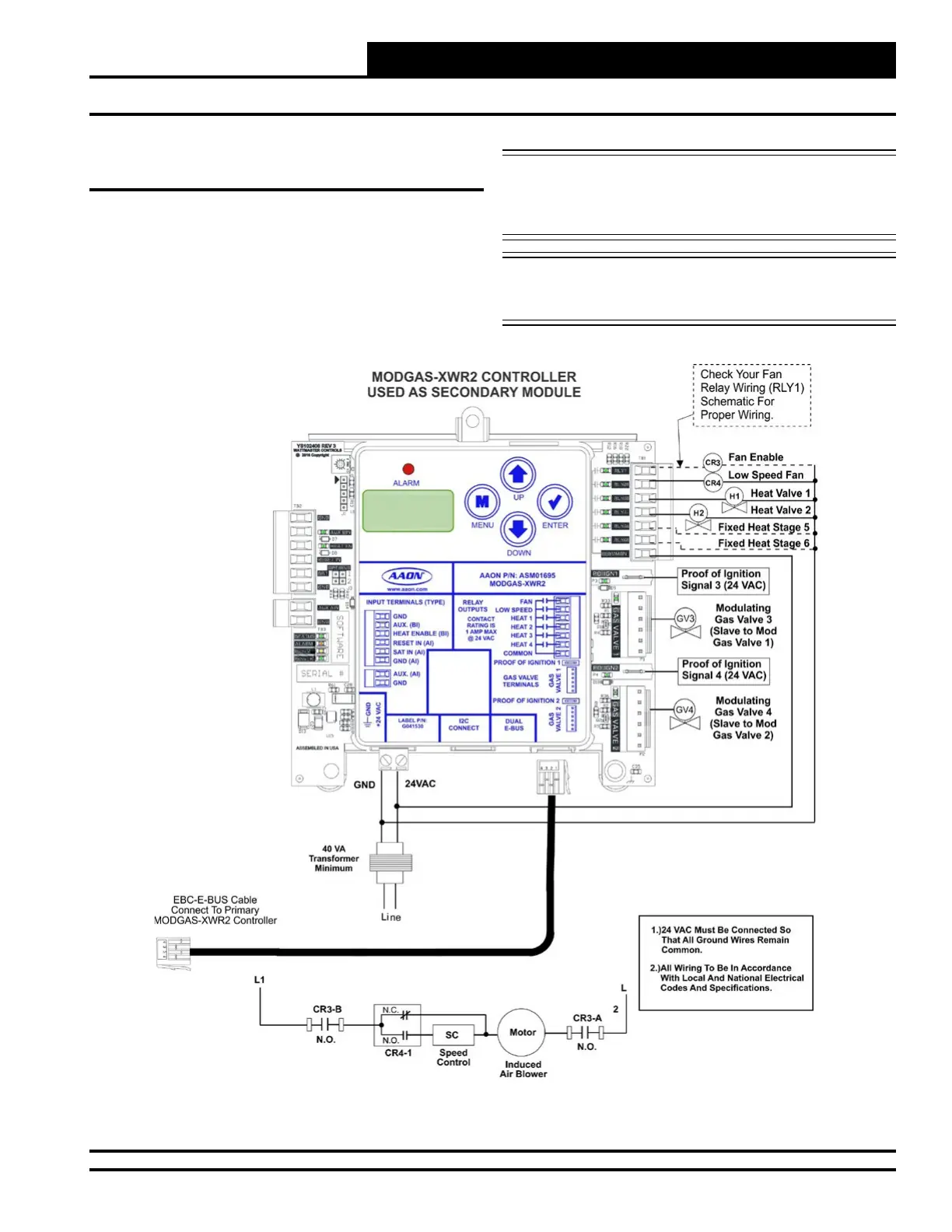

Figure 12: Secondary Board 2V2IGN2S Communicating Wiring Diagram
Secondary Board (2V2IGN2S) -
Communicating Wiring
In this conguration, the Two Modulating Valves wiring on the facing
page is the Primary portion and Figure 12, below is the Secondary por-
tion, thus creating four modulating valves as two stages.
This conguration operates as Stand-Alone (Figure 4, page 7) or
communicating with an AAON Unit Controller.
NOTE: Up to 3 additional xed heat stages can be used by using
Heat Relays 3 & 4 below. If additional xed stages are
required, these should be congured and wired to the
AAON Unit Controller’s relays.
NOTE: The Four Modulating Valves Primary/Secondary
configuration is not supported when using I
2
C
communications.
