COMMUNICATING WIRING
MODGAS-XWR2 Technical Guide
16

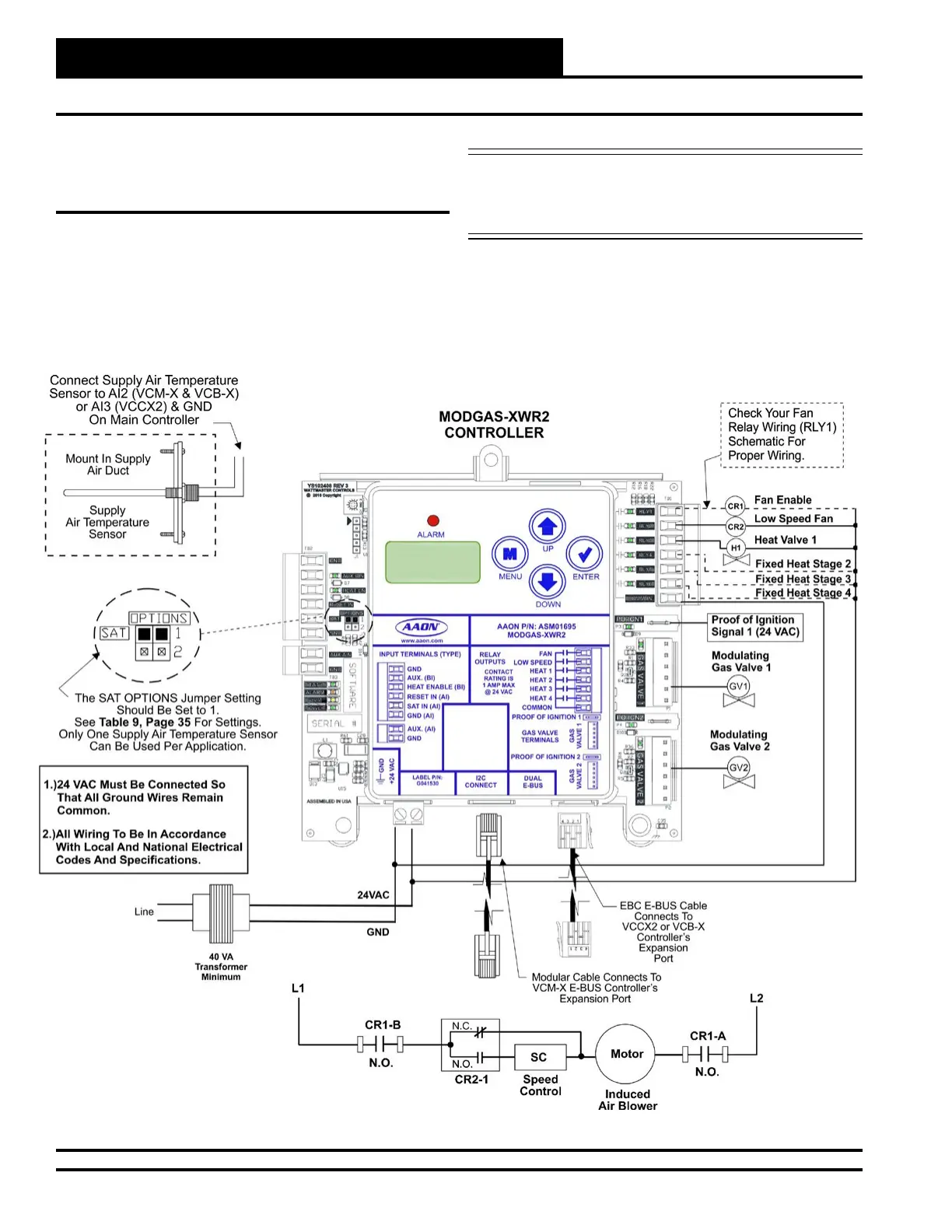

Figure 13: 2 Modulating Valves, 1 Ignitor, 1 Stage Communicating Wiring Diagram
2 Modulating Valves, 1 Ignitor,
1 Stage (2V1IGN1S) -
Communicating Wiring
This conguration operates as Stand-Alone (Figure 5, page 8) or
communicating with an AAON Unit Controller (Figure 13, below).
This conguration is used to control two modulating gas valves (one
on each header), in which the rst and second valves operate together
for one modulating stage. Both valves are connected to Heat 1 Relay.
NOTE: Up to 3 additional xed heat stages can be used by using
Heat Relays 2, 3 & 4 below. If additional xed stages
are required, these should be congured and wired to the
AAON Unit Controller’s relays.
For VCM-X Controllers, use an I
2
C Cable connecting to the appropriate
I
2
C port on the controller.
For all other controllers, use an E-BUS cable connecting to an E-BUS
port on the controller.
2V1IGN1S - Communicating Wiring
