Aaronia BPSG 4 - Amplitude Modulation; Frequency Modulation

HW © 2015 Aaronia AG, DE-54597 Strickscheid, www.aaronia.com, mail@aaronia.de 18
Manual RF Signal-
Generator

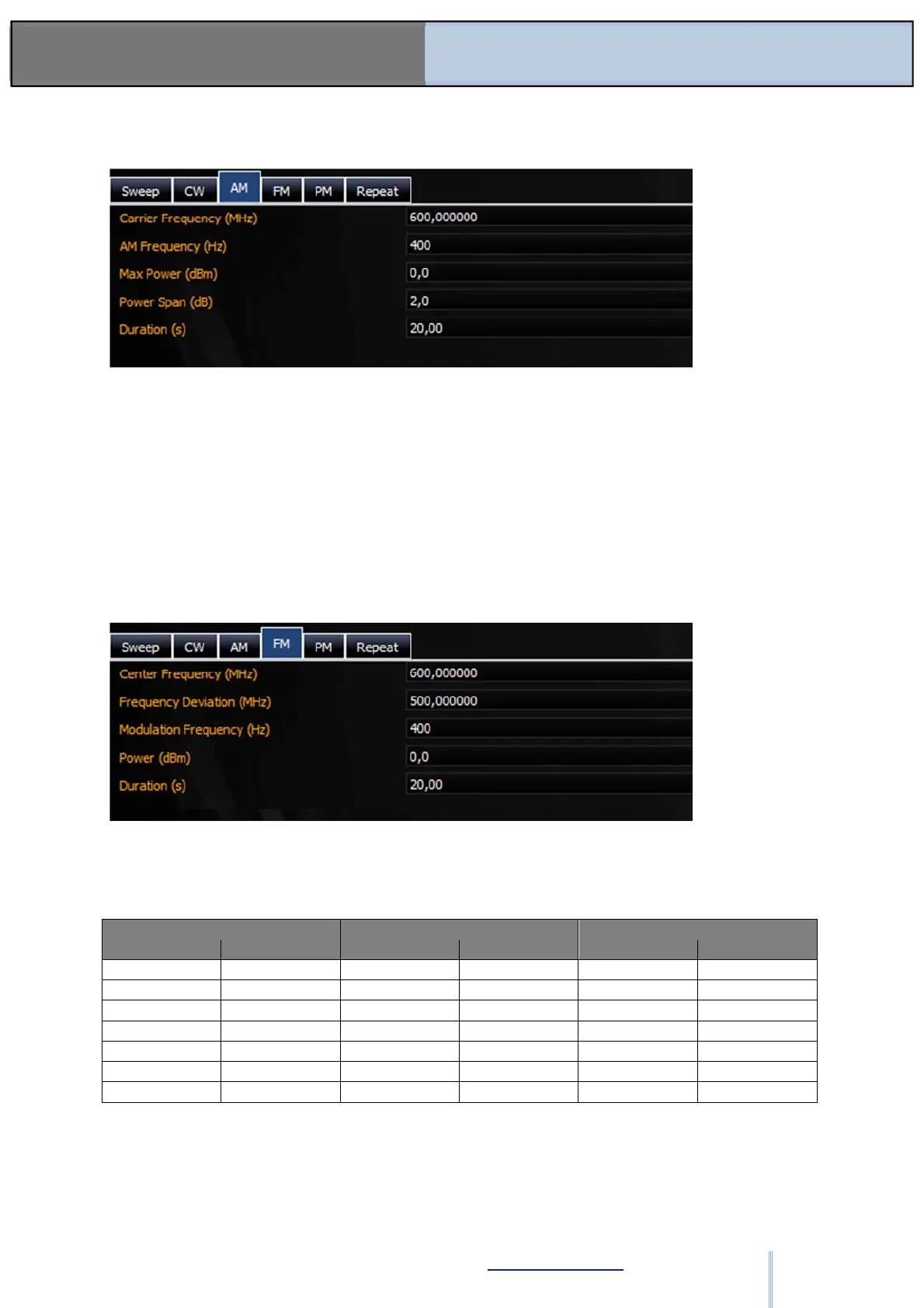

6.4.2.3. Amplitude Modulation
Figure: SW-08
The carrier frequency is output amplitude-modulated. The modulated frequency can be
adjusted from 1 Hz up to 17 kHz. At high frequencies in the kHz range, the accuracy is
partially limited to 50 Hz steps.
Max Power determines the maximum of the modulation. The minimum amplitude is Max
Power minus Power Span. Depending on the device, it may be that the maximum Span of
31.5 dB cannot be reached.
6.4.2.4. Frequency Modulation
Figure: SW-09
The following table shows the possible settings for the FM mode:
Center Frequency Frequency Deviation Modulation Frequency
from To from to from to
100 MHz 399 MHz 1 MHz 3 MHz 1 Hz 100 Hz
400 MHz 499 MHz 1 MHz 3 MHz 1 Hz 80 Hz
500 MHz 599 MHz 1 MHz 3 MHz 1 Hz 70 Hz
600 MHz 899 MHz 1 MHz 3 MHz 1 Hz 60 Hz
900 MHz 949 MHz 1 MHz 3 MHz 1 Hz 50 Hz
950 MHz 2800 MHz 1 MHz 1 MHz 1 Hz 10 Hz
2801 MHz 5999 MHz 1 MHz 1 MHz 1 Hz 4 Hz
