Manual RF Signal-
Generator

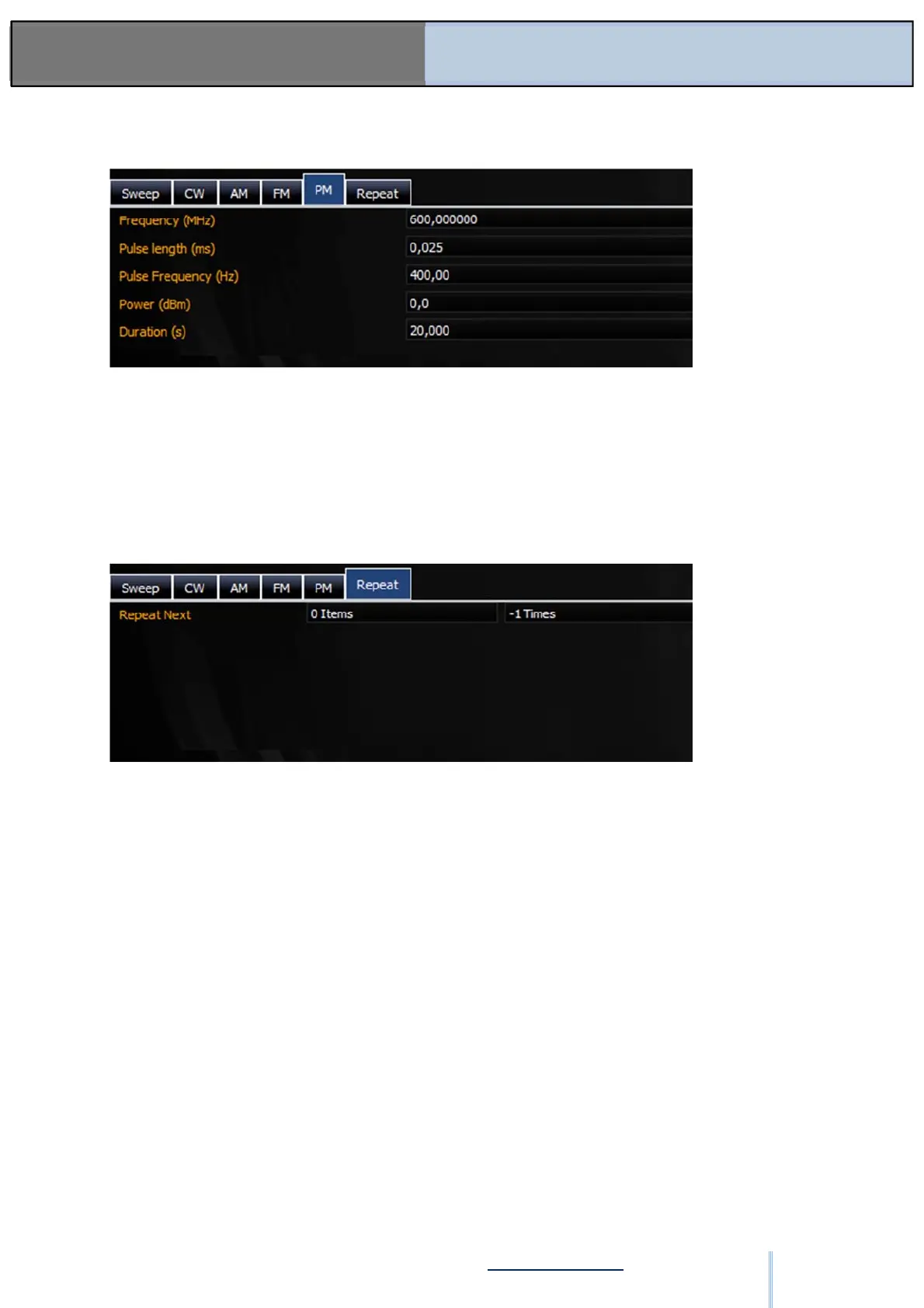

6.4.2.5. Pulse Modulation
Figure: SW-10
The output level is switched to be in time with the Pulse Frequency for the duration of the
pulse length. A pulse length of 0 results in a pulse of about 8 microseconds. The pulse
frequency can be selected from 0.01 Hz (100 seconds) to 15 kHz.
6.4.2.6. Repeat
Figure: SW-11
If a program consists of several parts, then you can repeat individual elements or groups
here. If the number is set to -1, then the group will be repeated indefinitely. The items
determine the group size.
Typically, a program consists of just one part. At the end, it therefore repeats again from the
beginning.
This implicit repetition is canceled with a repeat. This makes it possible to send a sequence
only after turning on the device and then turning off the output.
In the process, the last setting is always retained. Should the device not send any more
levels at the end, you may then close the program with a CW at a level of -50 dBm.
