5 Assembly and start-up
5.1 Drive wheels
CAUTION – Plug-in contacts must be dry!
CAUTION – Drive wheels must be disengaged for assembly and start-up! (see chapter 6.6)

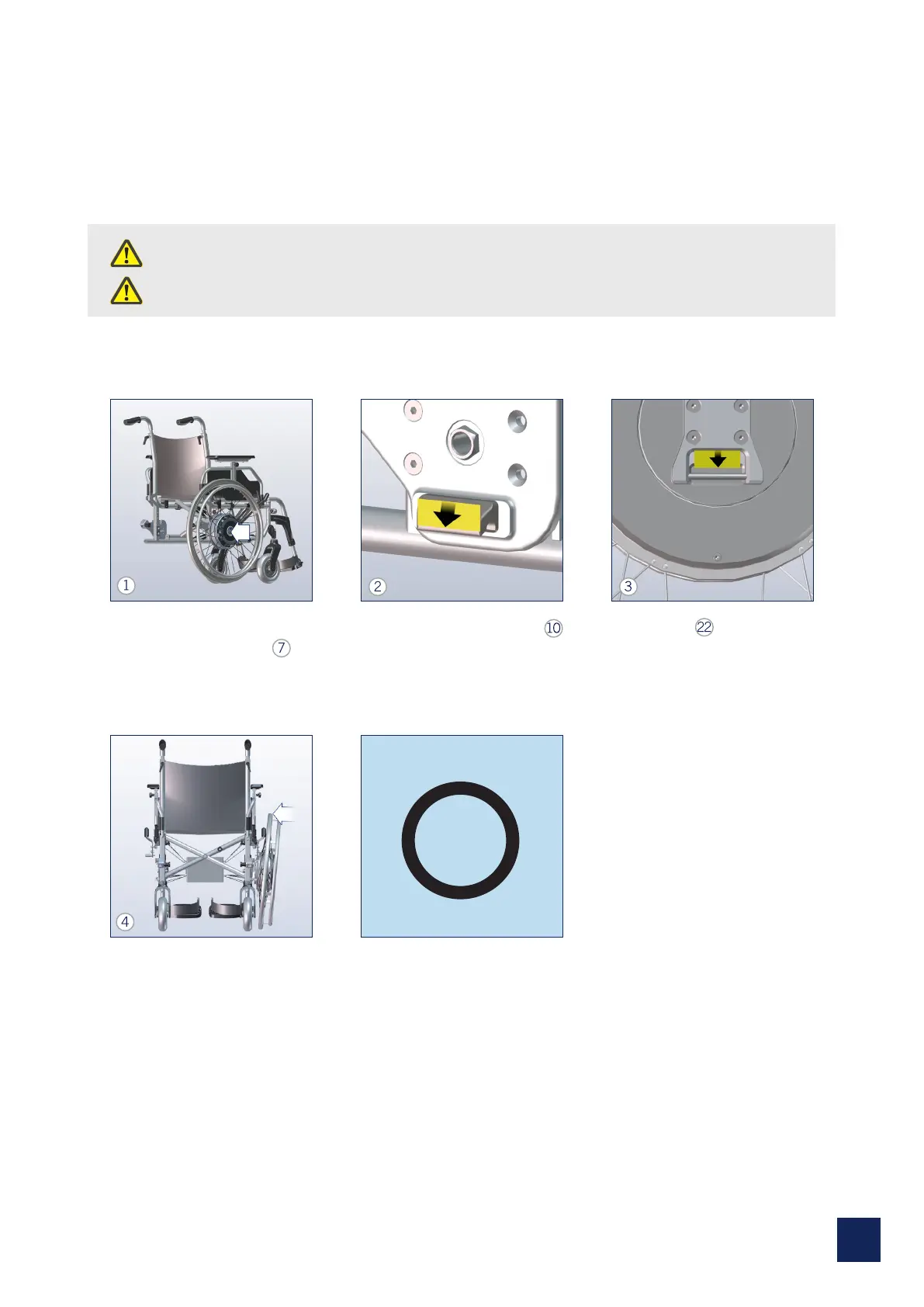

Lift the wheelchair and
position the drive wheel .
Hook the holding xture
of the bracket following the
direction of the arrow into the
holder on the wheel.
Detail view:
Mounting bolt on the wheel.
If the wheelchair still has the original wheels on, then remove them rst.
Lock the drive wheel.
» Must lock into place!
Repeat pictures 1 - 4 on the
other side.
