5.3 Operating unit
CAUTION – Plug-in contacts must be dry!
CAUTION – Never pull on the cable, but on the plug to avoid defects!

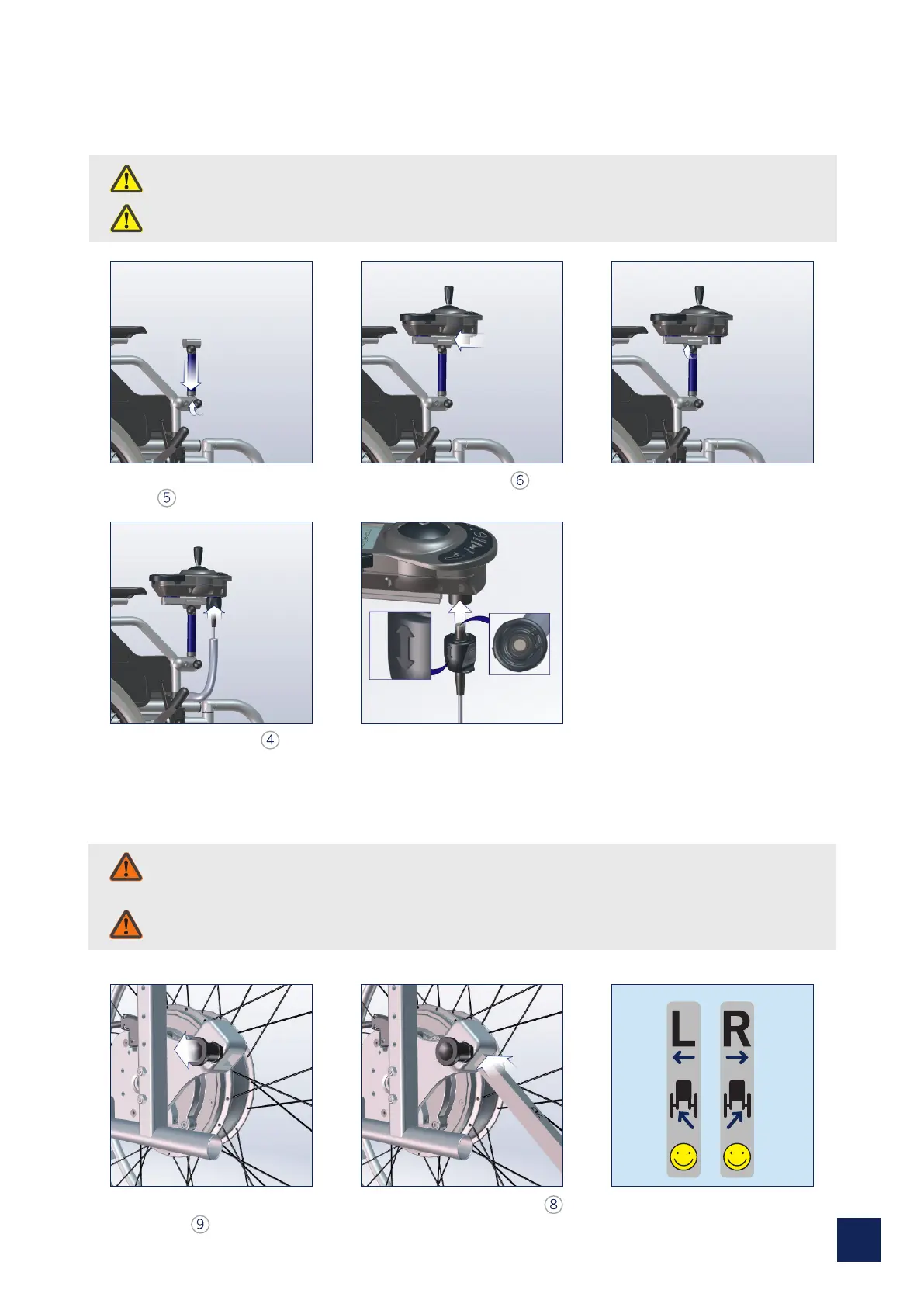

Attach the operating unit
holder .
Slide operating unit into
holder.
Secure using the ball knob.
5.4 Anti-tip supports
WARNING - Never use without both anti-tip supports to prevent the wheelchair from tipping
backwards!
WARNING - Check the anti-tip supports before initial operation to ensure safety!
If anti-tip supports are not available on your wheelchair, use AAT anti-tip supports in pairs!
Remove the locking bolts of
the bracket .
Push the anti-tip support
into the bracket and secure
with the locking pin.
Observe the ‘R’ + ‘L’
markings! Repeat process
on the other side.
Plug in the helix cable . Detail view.
