ABAC FORMULA Series - Additional Information Menu

P. 42 - Chap. 7 Start-up and operation
G
B
7.4.1
Additional information menu
ESC
ESC
ESC
ESC

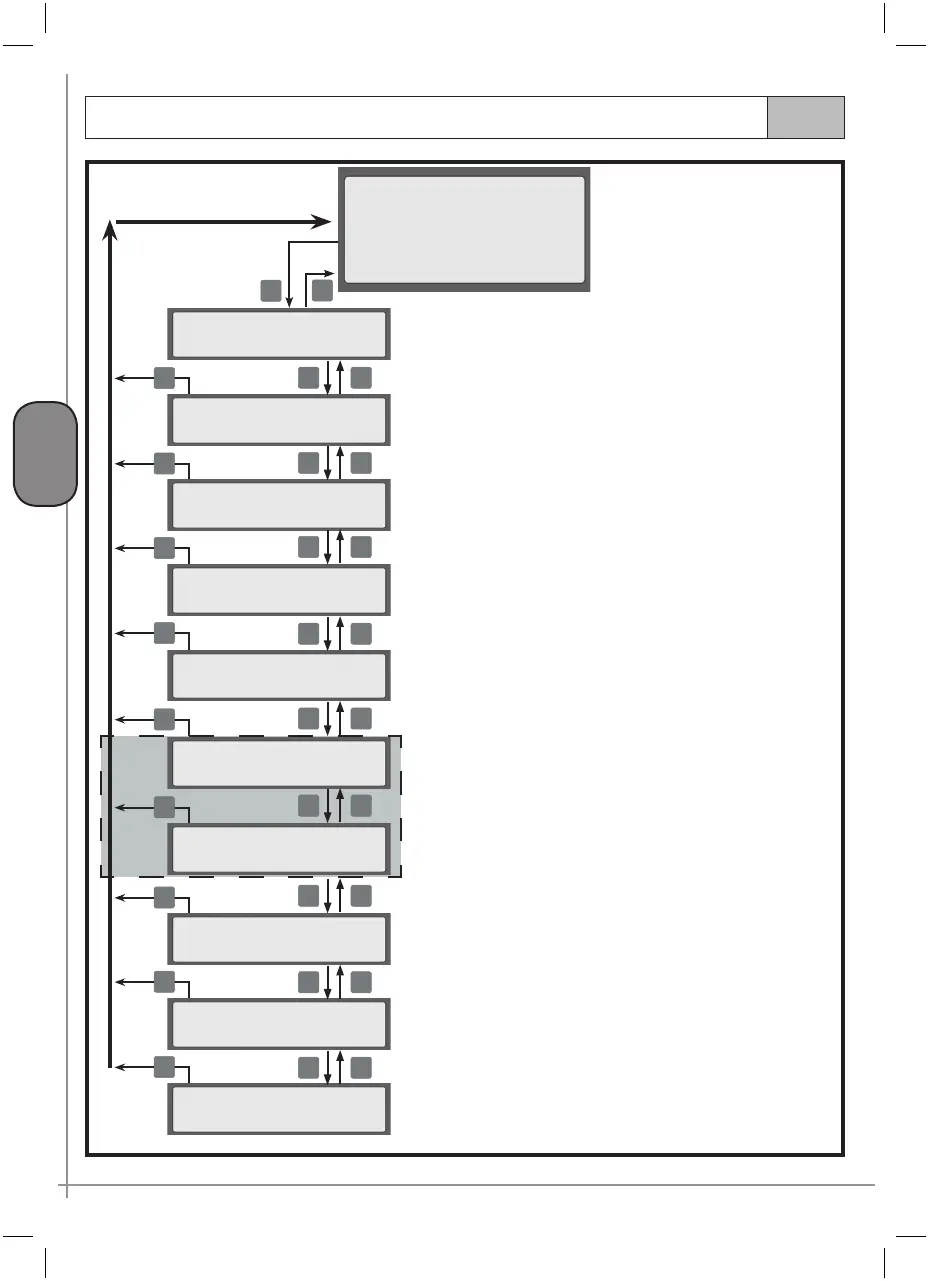

MAIN SCREEN PAGE
Menu A
Pressure XX.X bar
Temperature XXX °C
Ready for start
hour-date
Indicates the maximum operating pressure of the compressor.
(ref. paragraph 7.4.2.5)
Indicates the minimum operating pressure of the compressor.
(ref. paragraph 7.4.2.5)
Operating press.
Max: 8.0 bar
Operating press.
Min: 7.0 bar
Operating mode
State: AUTOMATIC
Type of control
Control: LOCAL
AUTORESTART function
State: OFF
+
-
+
-
+
-
+
-
ESC
ESC
ESC
Operating time
total: XXXX hours
Operating time
on load: XXXX hours
Time to service
oil: XXXX hours
+
-
+
-
+
-
+
-
Indicates operating mode setting:
AUTOMATIC / CONTIN.
(ref. paragraph 7.4.2.3)
Indicates setting of the type of control:
LOCAL / REMOTE / PROGRAM
(ref. paragraph 7.4.2.3)
If enabled, indicates the status of the AUTORESTART function
(automatic restart following blackout)
(ref. paragraph 7.4.2.3)
Indicates the total hours of operation of the compressor
(ref. paragraph 7.4.2.2)
Indicates the hours of operation of the compressor at full load
(ref. paragraph 7.4.2.2.)
Indicates the time remaining to initial maintenance: any other
maintenance operations to be carried out within 100 hours from
initial maintenance are also displayed cyclically
(ref. paragraph 7.4.2.2.)
ESC
ESC
+
-
ID compressor
N° stazione: 1
+
-
Net sequence
ID 4-3-1-2
Only if the CAN-BUS communication module
has been installed
Indicates the order in which the machines are started
(ref. paragraph 7.4.2.4.)
It provides the information consulted most frequently and is shown below.
