ABAC FORMULA Series - Suction Prefilter Replacement; Air Filter Cleaning or Replacement

P. 71 - Chap. 10 Maintenance
G
B

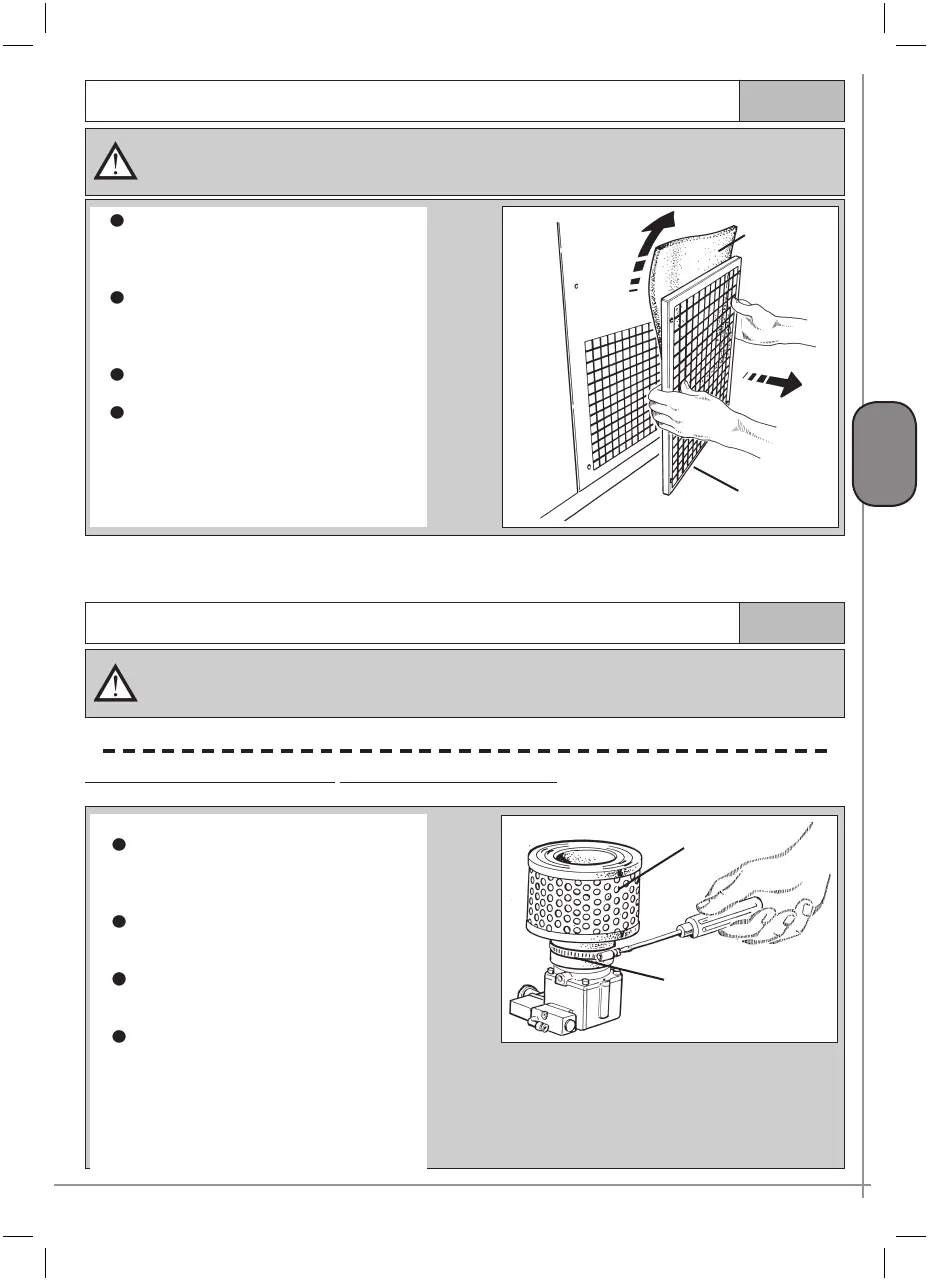

Replacement of the suction prefilter
10.3
Before performing any maintenance operations read the operator safety precautions in
chapter 5 carefully. These precautions must be followed scrupulously for all maintenance
operations
Operate on the outside of the compres-
sor: back off the screws that support
panel PPA of the suction prefilter.
Access the inside of the compressor:
extract the grill of the intake prefilter
and the filter element PA
(Fig. 37)
Replace the filter element PA
Refit the grill of the intake prefilter
Fig. 37
PPA
PA
To reset the scheduled maintenance counter (for enabled users only), see paragraph 7.4.2.2.
Cleaning or replacing the air filter
10.4
Before performing any maintenance operations read the operator safety precautions in
chapter 5 carefully. These precautions must be followed scrupulously for all maintenance
operations
GENESIS - FORMULA - MODULO 5-5-15 kW / 7,5-20 hp (BA 51)
Open the upper panel PS of the com-
pressor cabinet, backing off the lock
screws
Open the front panel PF of the compres-
sor cabinet using the key provided
Loosen the clip FFA shown in Fig. 38
and remove air filter FA
Clean the filter by directing a jet of air
inside it or replace the filter as pre
-
scribed in the maintenance schedule.
Do not use fluids or detergents to clean
the filter
FFA
Fig. 38
FA
