P. 77 - Chap. 10 Maintenance
G
B

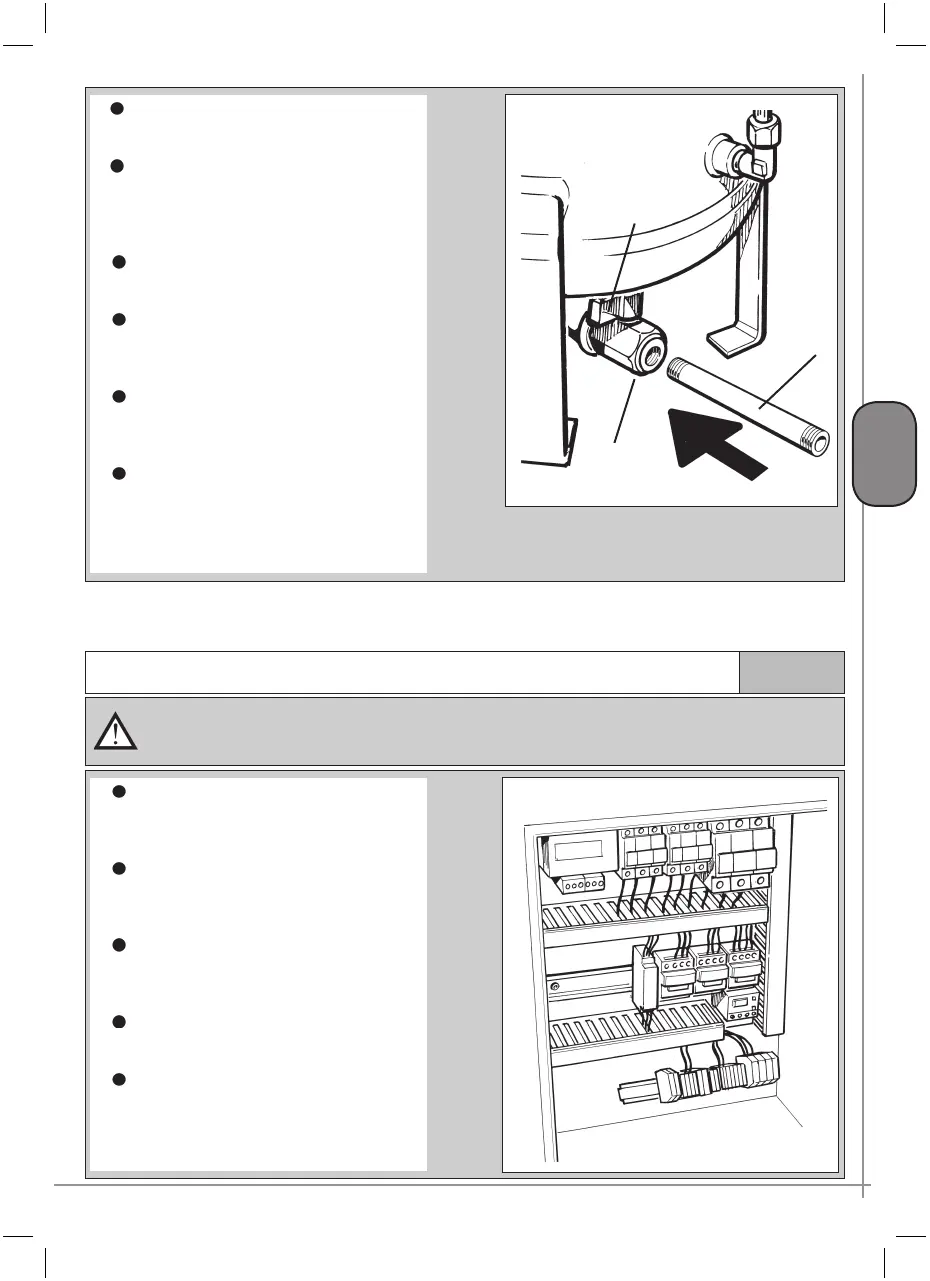

Remove the front panel PF with the key
provided
Connect fitting R provided, which must
communicate with a suitable collection
recipient, to fitting
DO after unscrewing
the safety plug (Fig. 48)
Partially open drain valve RSO (Fig.
48)
Follow the operation and close oil drain
valve RSO as soon as oil starts flowing
out
Check the oil level and top up, if
required, as described in the paragraph
“Checking the level and topping up”
Replace the safety plug and the PF
panel
Fig. 48
SA
RSC
DO
RSO
The air receiver and separator condensate should be drained manually on a weekly basis - or more
frequently. The user is responsible for this maintenance operation.
Replacing the fuses
10.8
Before performing any maintenance operations read the operator safety precautions in
chapter 5 carefully. These precautions must be followed scrupulously for all maintenance
operations
GENESIS - FORMULA:
Open the corner panel SPA of the com
-
pressor cabinet using the key provided
MODULO:
Open the electric box panel
SCE using
the key provided
Replace the damaged fuses. Follow
the amperage specifications provided
in paragraphs 12.8, 12.9
GENESIS - FORMULA:
Close the corner panel SPA
MODULO:
Close the electric box panel SCE
Fig. 49
R
