- 15 -
PHASE 2 - TRANSMITTER INSTALLATION

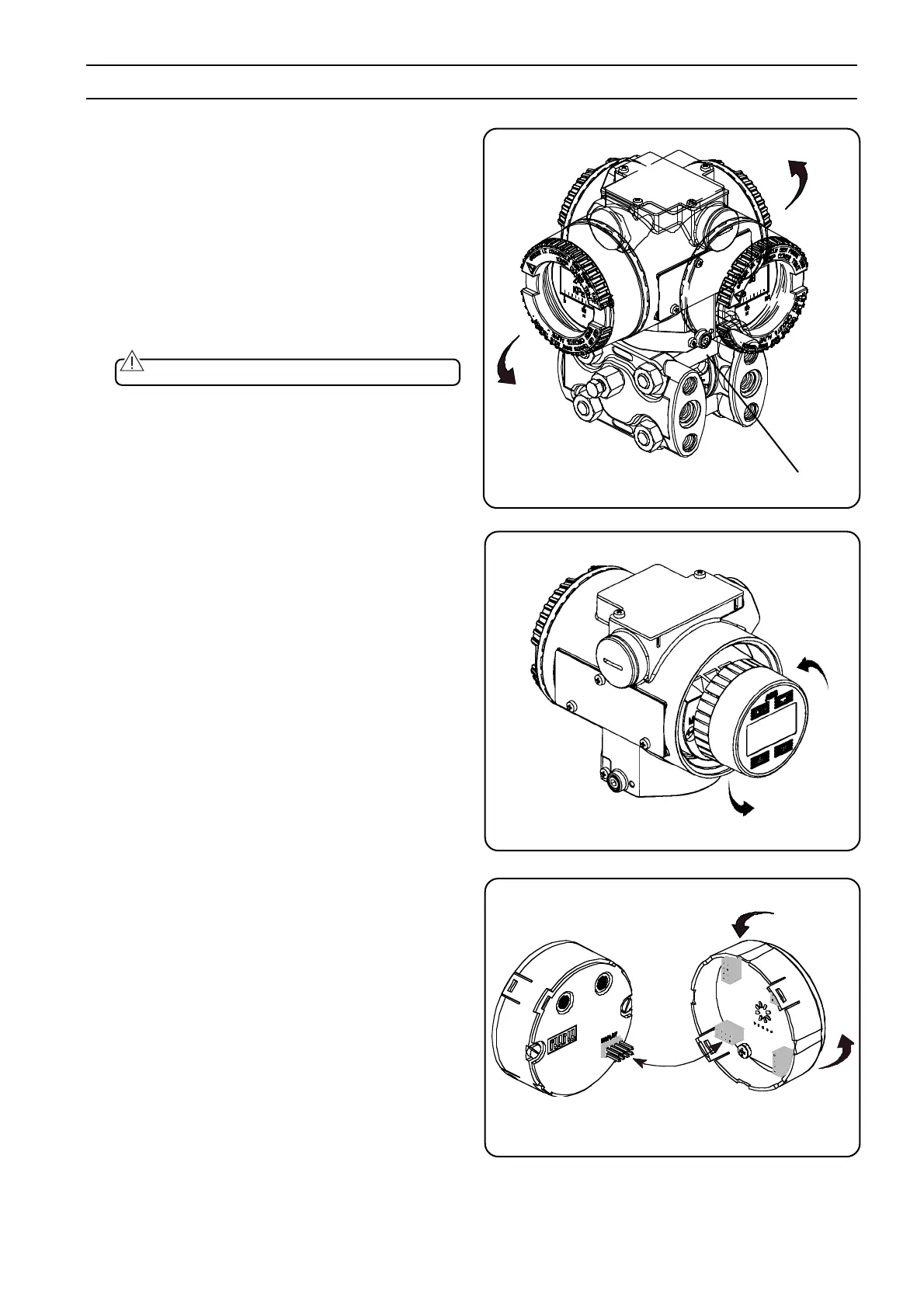

3.4 ROTATION
Housing Rotation
To improve field access to wiring or the readability of the
optional LCD meter it is possible to rotate the Housing and the
Meters or the Integral display.
Housing Rotation
1. Unlock the housing rotation set screw by turning it 1 turn
(use the 3 mm Allen key supplied with the instrument)
2. Turn the housing clock wise or counterclockwise up to
180° from its original position.
Caution: over rotating will damage the transmitter.
3. Tighter the set screw.
Output Meters rotation
In case an optional meter is installed, it is also possible to rotate
the meter 90° degree clockwise or 255° counterclockwise with
15° steps.
Just turn it in the required position gripping around the complete
meter to avoid pulling the cover from the base of the meter.
Integral Display rotation
In case an optional integral display meter is installed, it is
possible to mount the display in four different positions rotated
clockwise or counterclockwise with 90° steps.
This is possible by using one of the four connections located on
the back of the display at a 90° distance each from the other.
set
screw
