ABB 2600T Series Instructions For Installation And Commissioning

- 7 -
LH
A
B
C
H L
B
A
C
Orifice plate
PHASE 2 - TRANSMITTER INSTALLATION
3. TRANSMITTER INSTALLATION
The following examples are standard mounting locations for instrumentation suitable for these main types of applications:
3.1 TRANSMITTER LOCATION
Flow
gate valves
filling tees
vent valve
3-valve
manifold

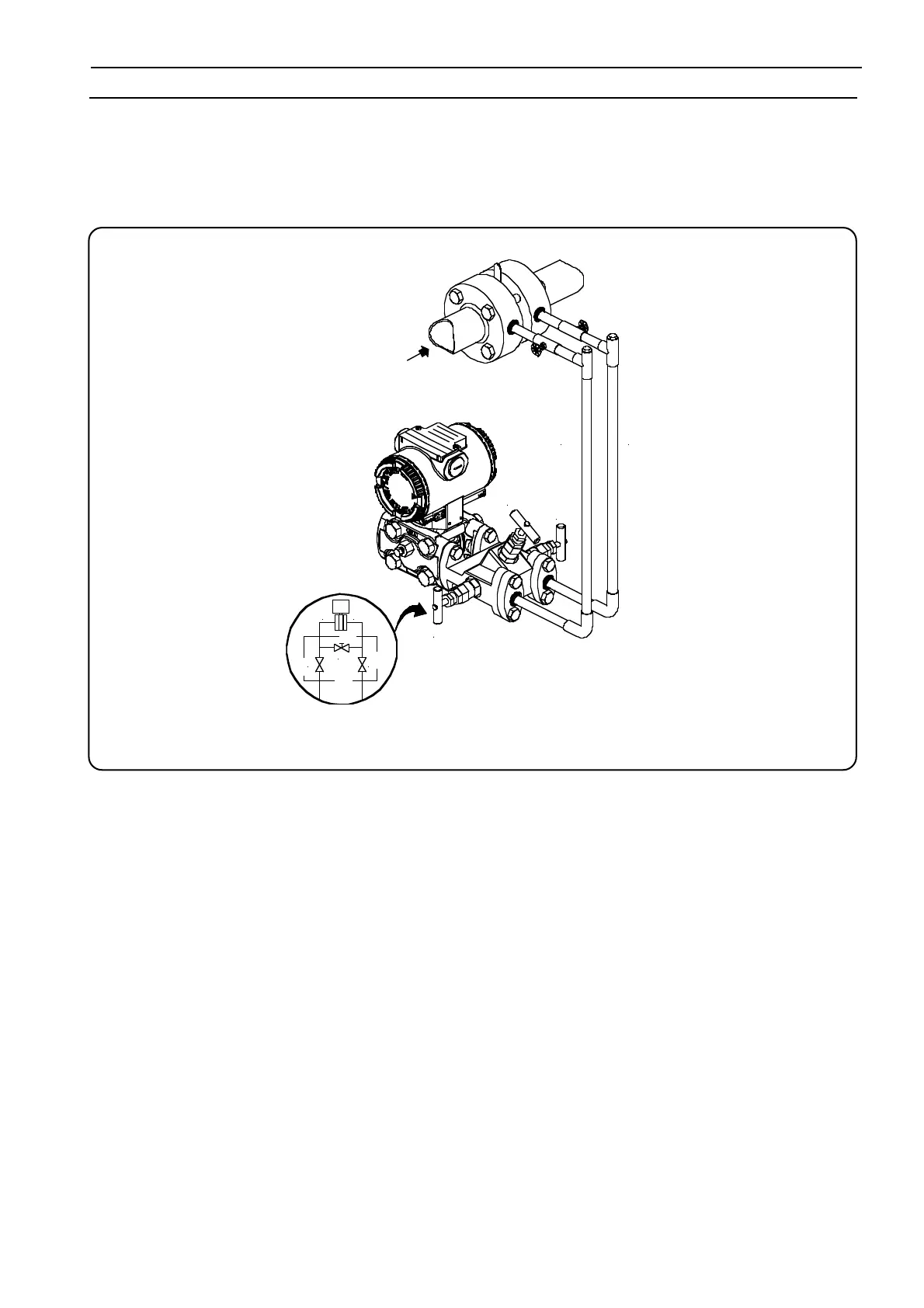

Flow measurement with clean liquids or steam
(condensable vapor)
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the drain/vent valve upward.
4. In case of steam application fill the vertical section of the
connecting lines with a compatible fluid through the
dedicated filling tees.
C
