ABB 2600T Series - Range & Span consideration

- 8 -
Min. Level
H
L
Max. Level
L
H
A
C
B
A B
C
H L
L H
C
A
B
A B
C
H L

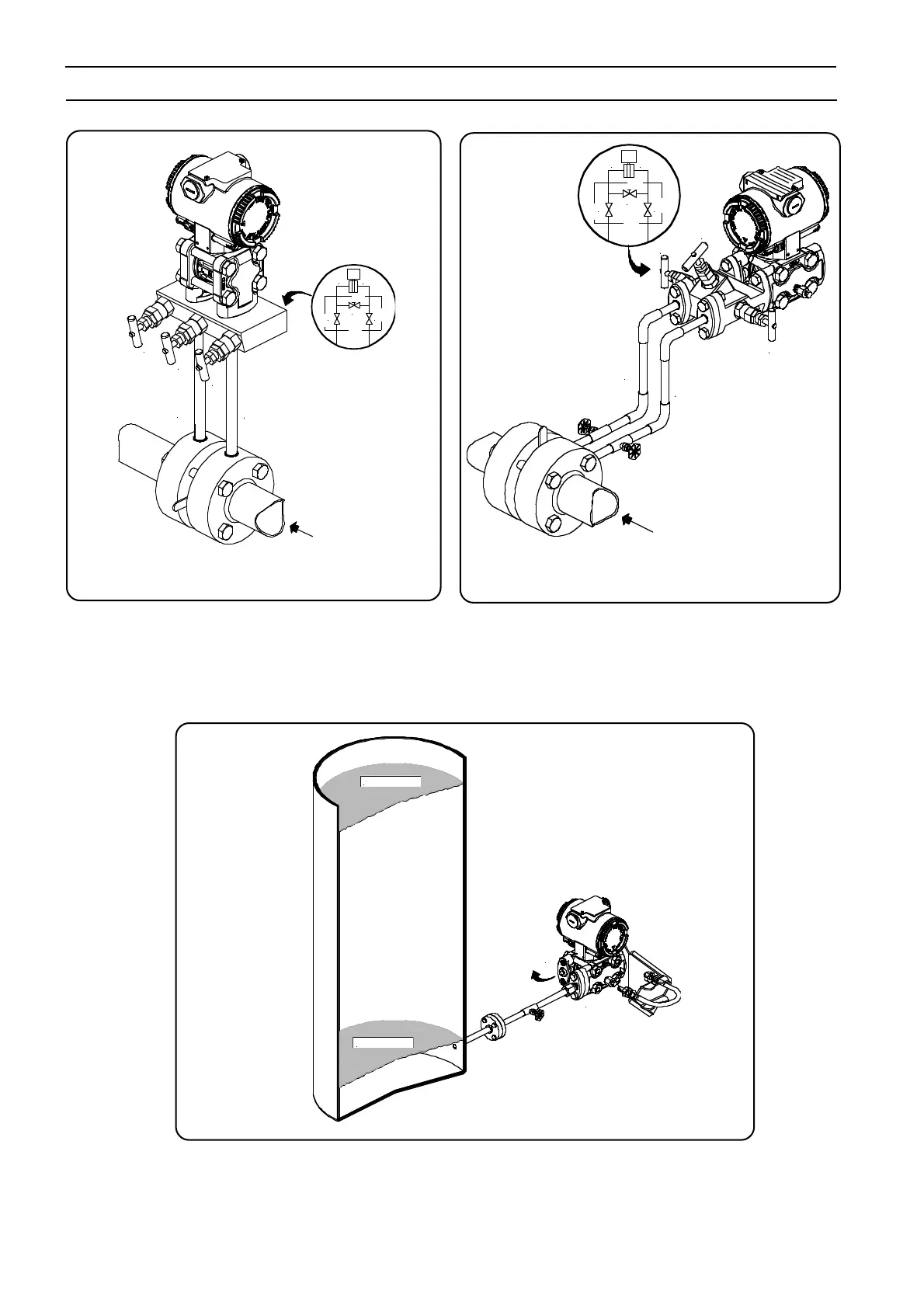

PHASE 2 - TRANSMITTER INSTALLATION
Flow measurement with gas or liquids with solids in suspension
1. Place the taps to the top or side of the line.
2. Mount the transmitter above the taps.
Level measurement with open tanks
1. Mount the transmitter at the same height or below the lowest level to be measured.
2. Connect the + (H) side of the transmitter to the bottom of the tank.
3. Vent the - (L) side of the transmitter to the atmosphere.
Flow
3-valve
manifold
gate valve
gate
valves
3-valve
manifold
drain
valve
Flow
