C
F
G
B
A
E
D
1
2 43
2 31
GUID-4AA8A443-6E37-4C73-A864-C9E37DD3322F V2 EN

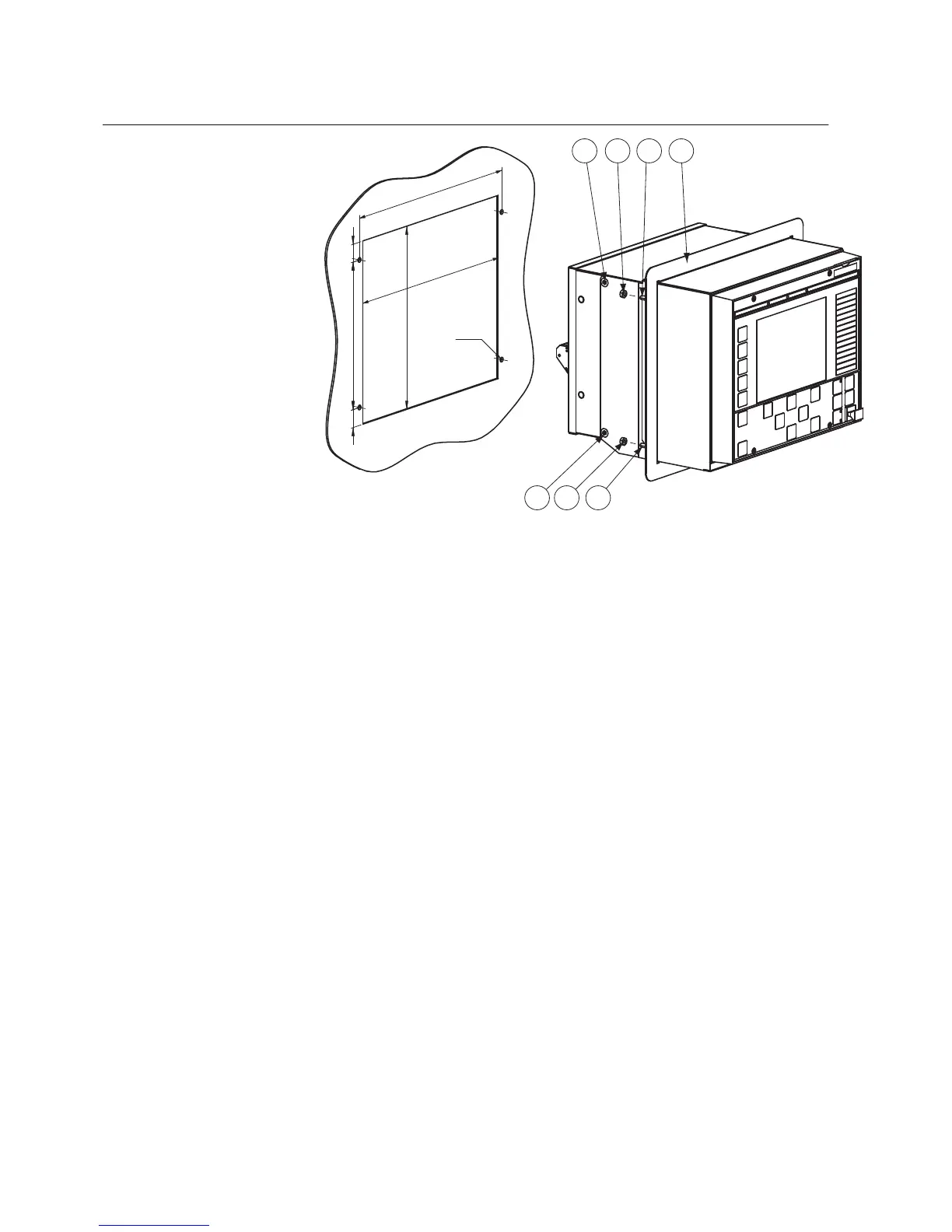

Figure 4: Semi-flush mounting the IED into a panel cut-out
A
240 mm 1 Screws
B 19 mm 2 Nuts and washers
C 229 mm 3 Threaded studs
D 157 mm 4 Raising frame
E 195 mm
F ∅6 mm
G 19 mm
5. Place a nut and a washer on each threaded studs.
6. Tighten the nuts.
Section 4 1MRS755958 C
Mounting
18 630 series
Installation Manual
