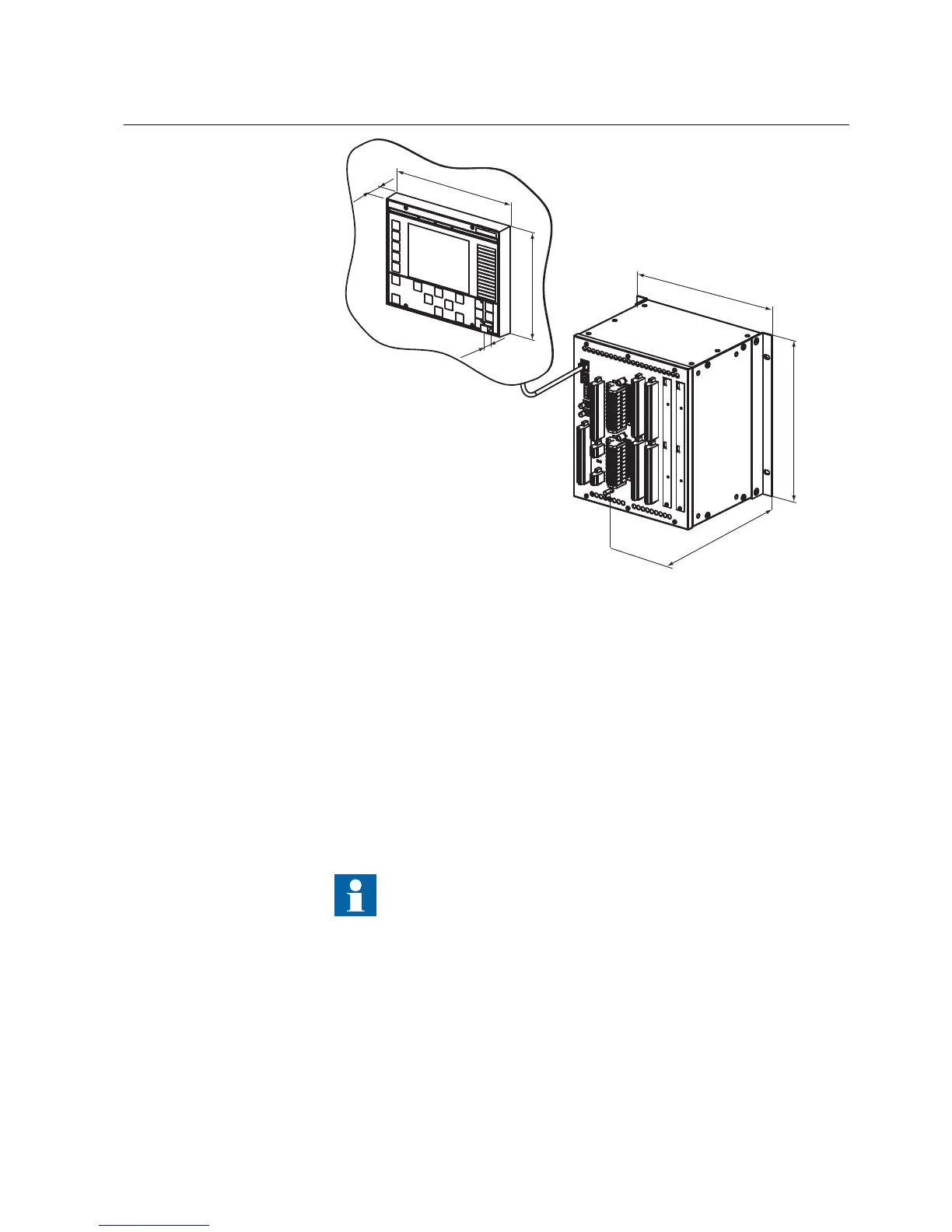

Figure 19: External LHMI display wall mounted and connected to the 6U
main unit
A
25.5 mm
B 220 mm
C 13 mm
D 177 mm
E 258.6 mm
F 265.9 mm
G 224 mm
Check the allowed minimum bending radius from the optical cable
manufacturer.
4.3.6 Arranging ventilation
Ventholes are located at the bottom and on the back plate of the IED. Reserve
sufficient space round the IED to ensure adequate ventilation.
1MRS755958 C Section 4
Mounting
630 series 35
Installation Manual
