4.3.4 Wall mounting the IED
1. Drill four screw holes according to the dimensional drawing.
2. Mount the mounting brackets using the required screws.
3. Remove the plastic plugs from the side of the IED.
4. Fit the IED securely between the mounting brackets by using the required
screws.
5. Tighten the screws.
F
C
2
1
D E
A
B
G
GUID-7DF6B376-60FC-4E11-802C-6D77F3485EBB V1 EN

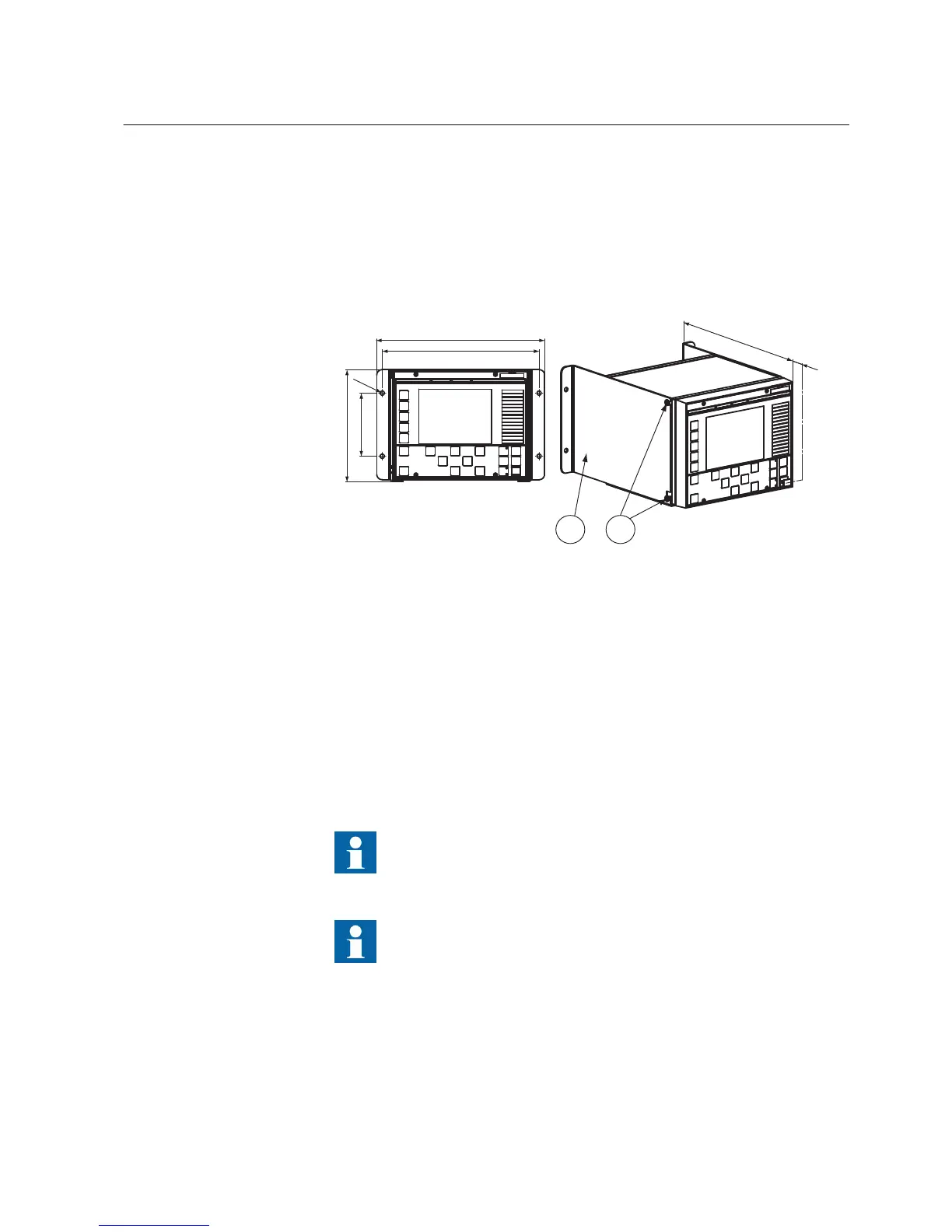

Figure 11: Wall mounting the IED
A
270 mm 1 Mounting bracket
B 252.5 mm 2 Screw
C ∅6.8 mm
D 180 mm
E 101.6 mm
F 296 mm
G 13 mm
Minimum of 50 mm space is needed between the two kits.
Check the allowed minimum bending radius from the optical cable
manufacturer.
1MRS755958 C Section 4
Mounting
630 series 25
Installation Manual
