4.3.3 Rack mounting the IED
4.3.3.1 Rack mounting a single IED
1. Remove the four plastic plugs from the right-hand side of the IED and attach
the right mounting panel securely using the required screws.
2. Tighten the screws.
1
1
2
GUID-E794D0E2-17A4-4040-8E49-5607C1DB72FB V1 EN

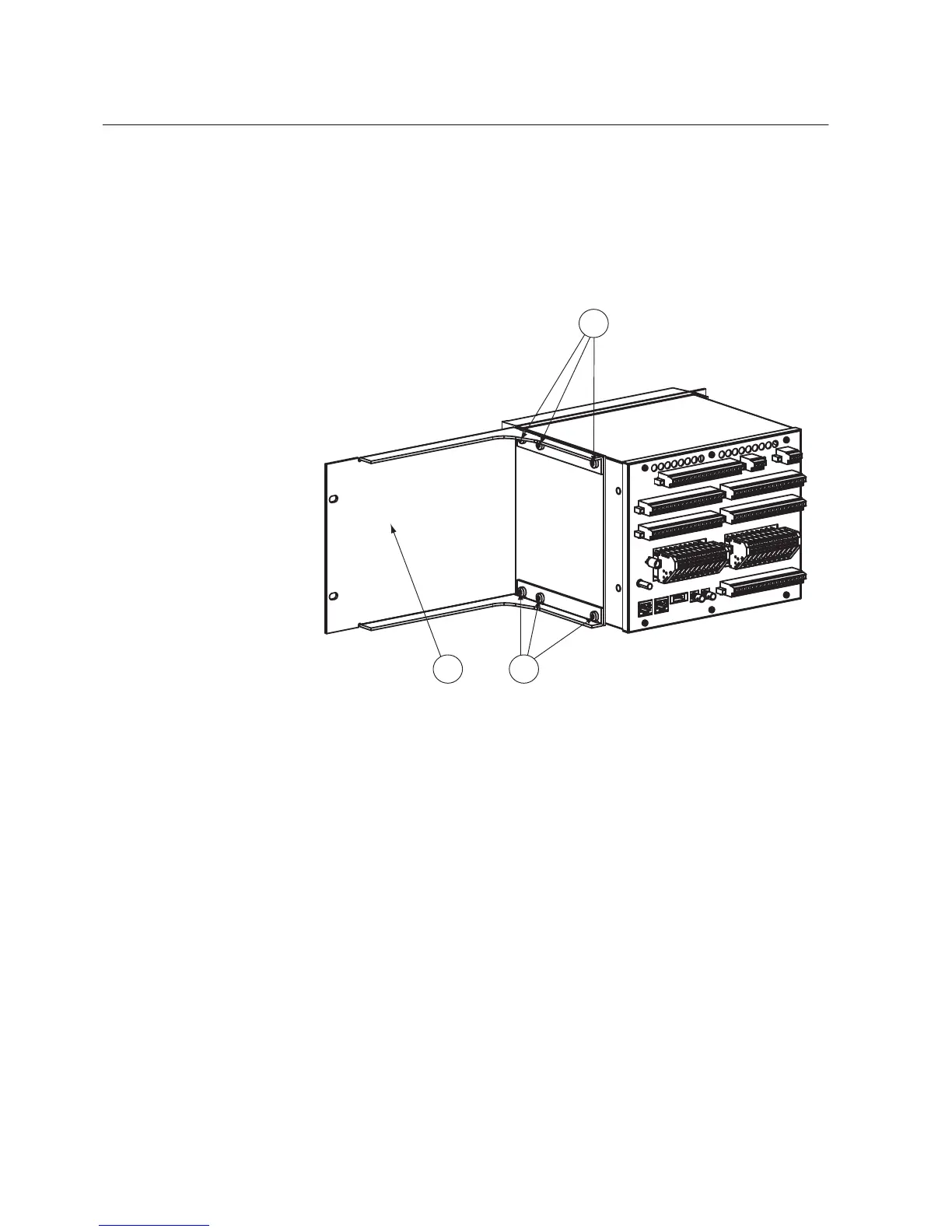

Figure 6: Mounting the bracket
1
Screws
2 Right mounting bracket
3. Attach the left mounting bracket to the left-hand side of the IED using the
required screws.
4. Tighten the screws.
5. Mount the IED with the rack mounting panels to the 19" rack.
6. Tighten the screws.
