GUID-4A5C6C47-FD7F-4AFD-8C7D-A7E669D6A7F6 V1 EN

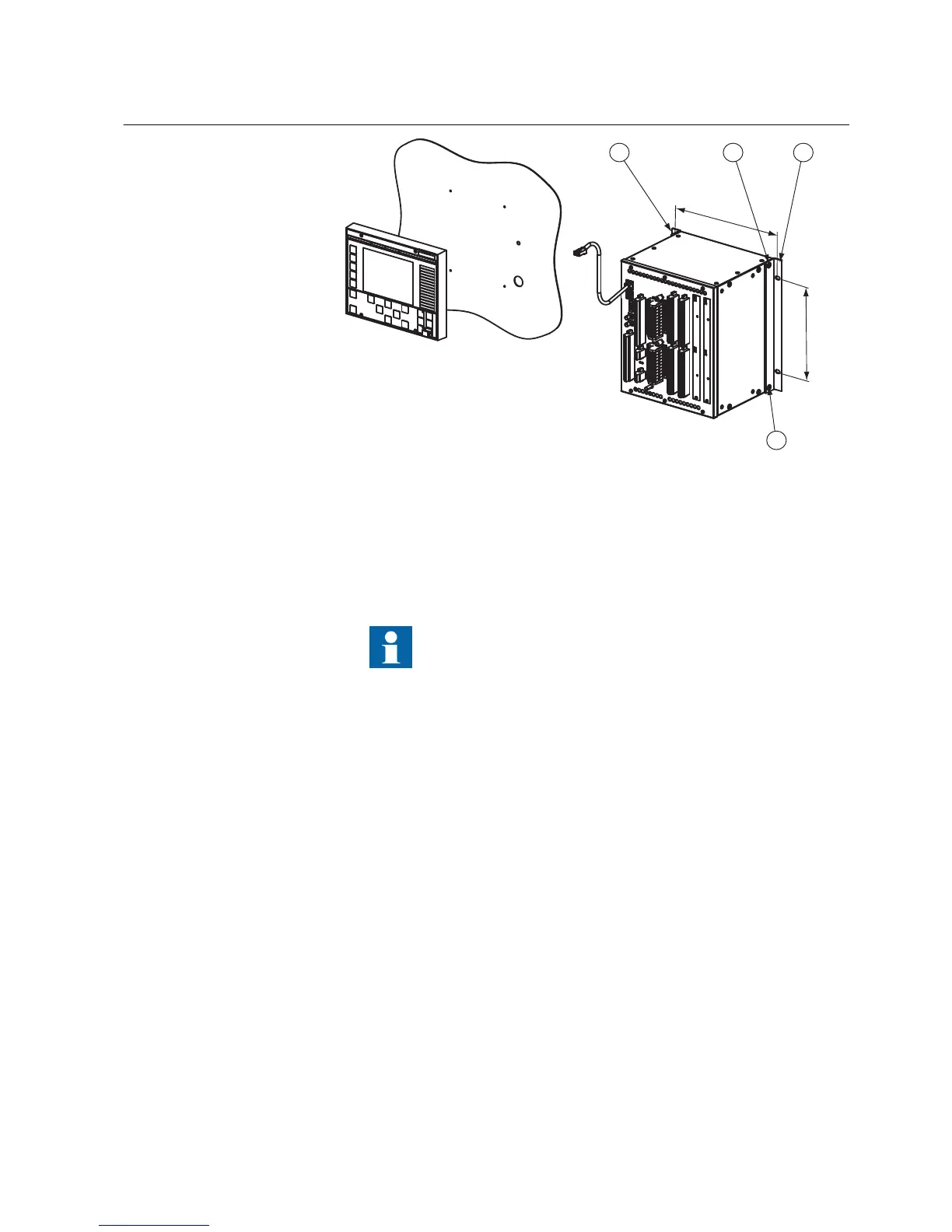

Figure 17: 6U main unit and external LHMI display
A 241.1 mm 1 Screws
B 190.5 mm 2 Mounting brackets
The width of the 4U and 6U main units is 224 mm.
4. Tighten the screws.
5. Connect a cable to the RJ-45 connection on the front panel of the main unit to
the corresponding connection on external LHMI display module.
1MRS755958 C Section 4
Mounting
630 series 33
Installation Manual
