IEC09000616 V2 EN

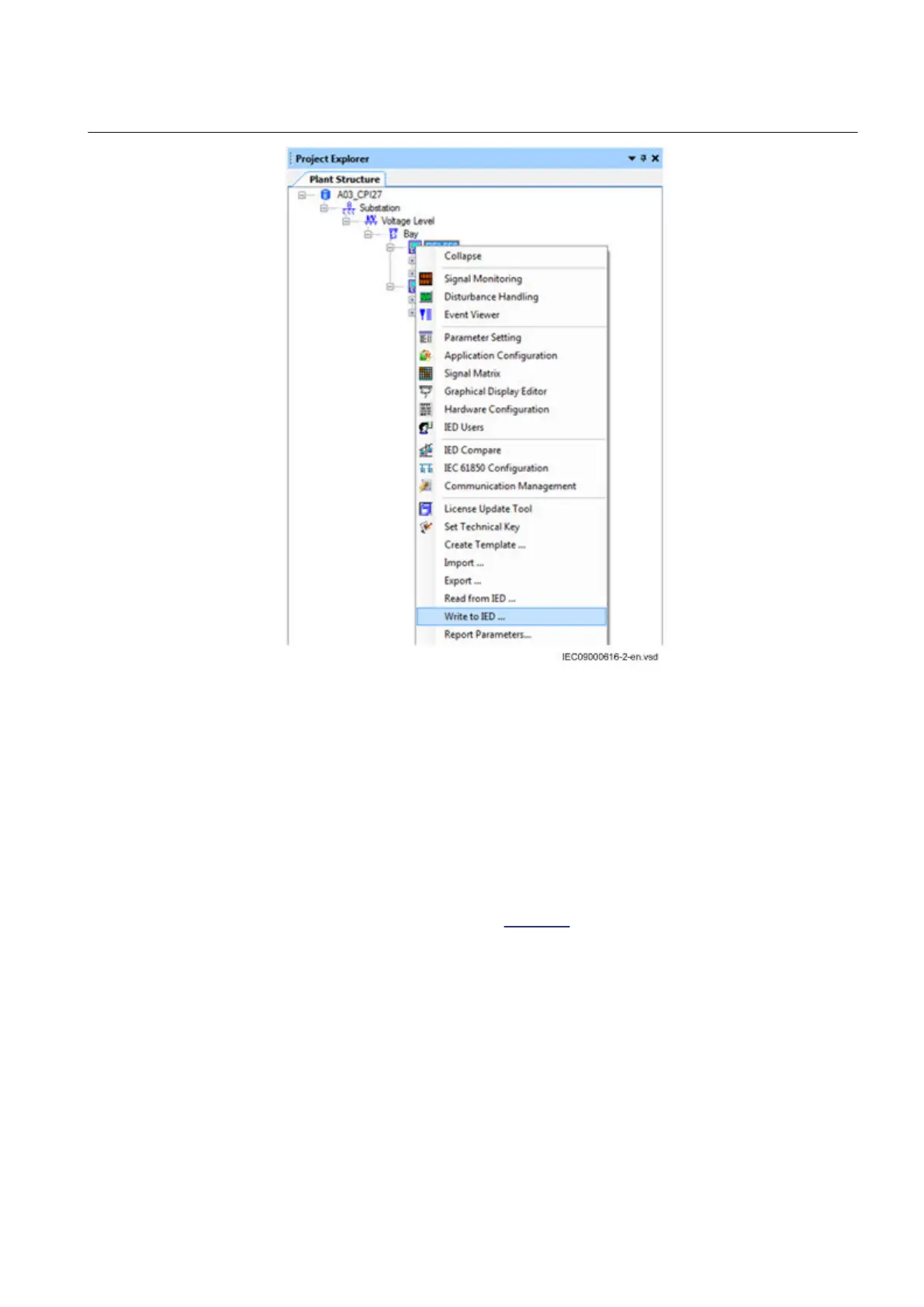

Figure 69: Common write menu
7.5.2 Importing ICD or CID files
Procedure to import a complete ICD file or CID file:
1. Select an existing IED to import IEC 61850 files.
2. Select the file type of IEC 61850 to import from the Files of type drop down list
(ICD or CID)
3. The SCL Import Option menu opens, which queries how the file should be
handled during import, see
Figure 70.
1MRK 511 284-UEN A Section 7
IEC 61850 communication engineering
650 series 99
Engineering manual
