8 Disassembly and assembly / 8.13 Fitting diffuser, wall insert
© Copyright 2018 ABB. All rights reserved. HZTL4034_EN Revision N November 2018
Fitting the wall insert

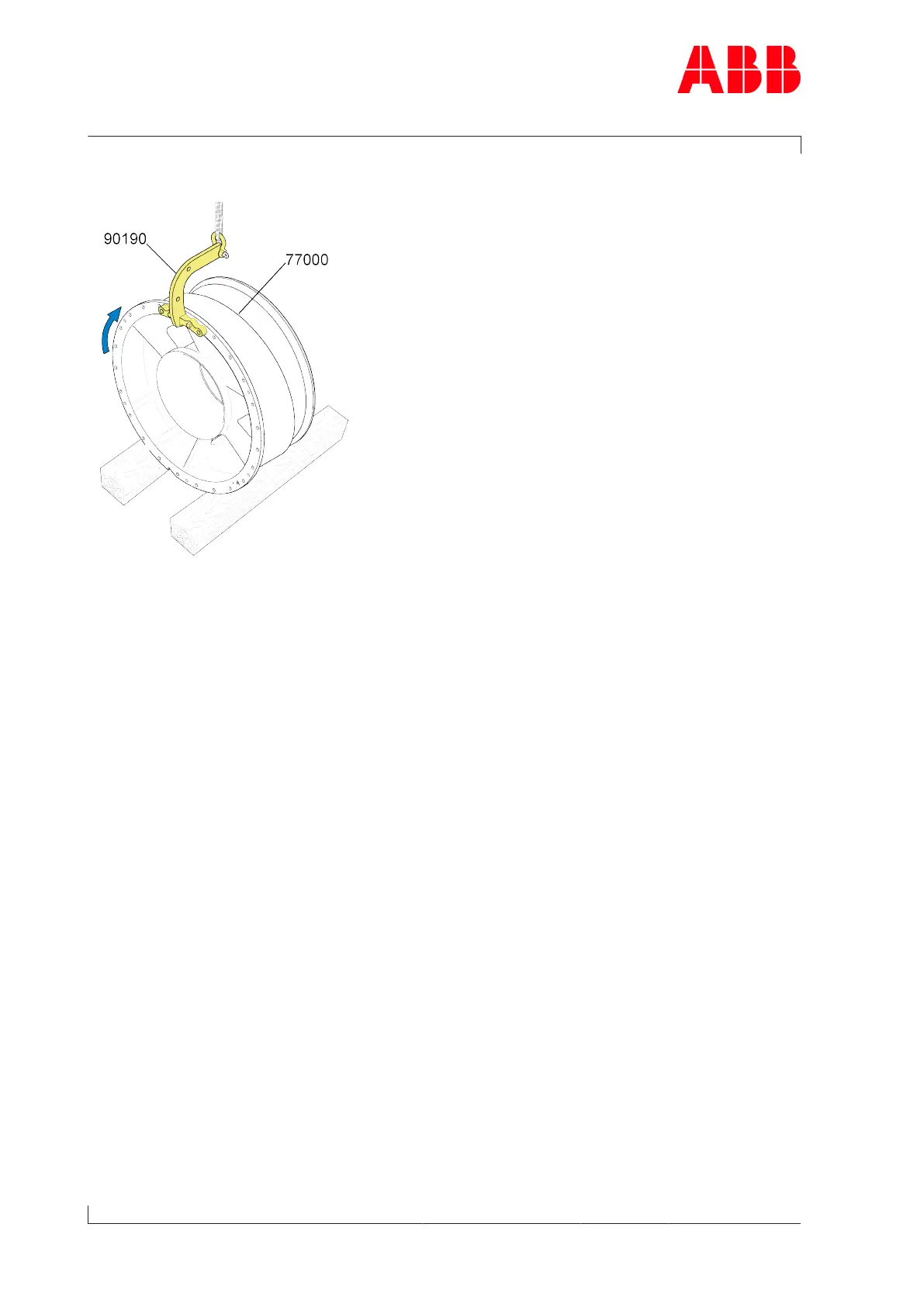

Fig.57: Positioning wall insert
u Carefully bring wall insert (77000) into vertical position with the lifting device (90190).
