ABB A175-L37 - Fig. 41: Dismantling the Nozzle Ring (A175-L and Smaller)

Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.8 Dismantling the insulation, the gas
inlet casing and the nozzle ring (A175-L and smaller)
© Copyright 2018 ABB. All rights reserved. HZTL4034_EN Revision N November 2018
Dismantling the nozzle ring

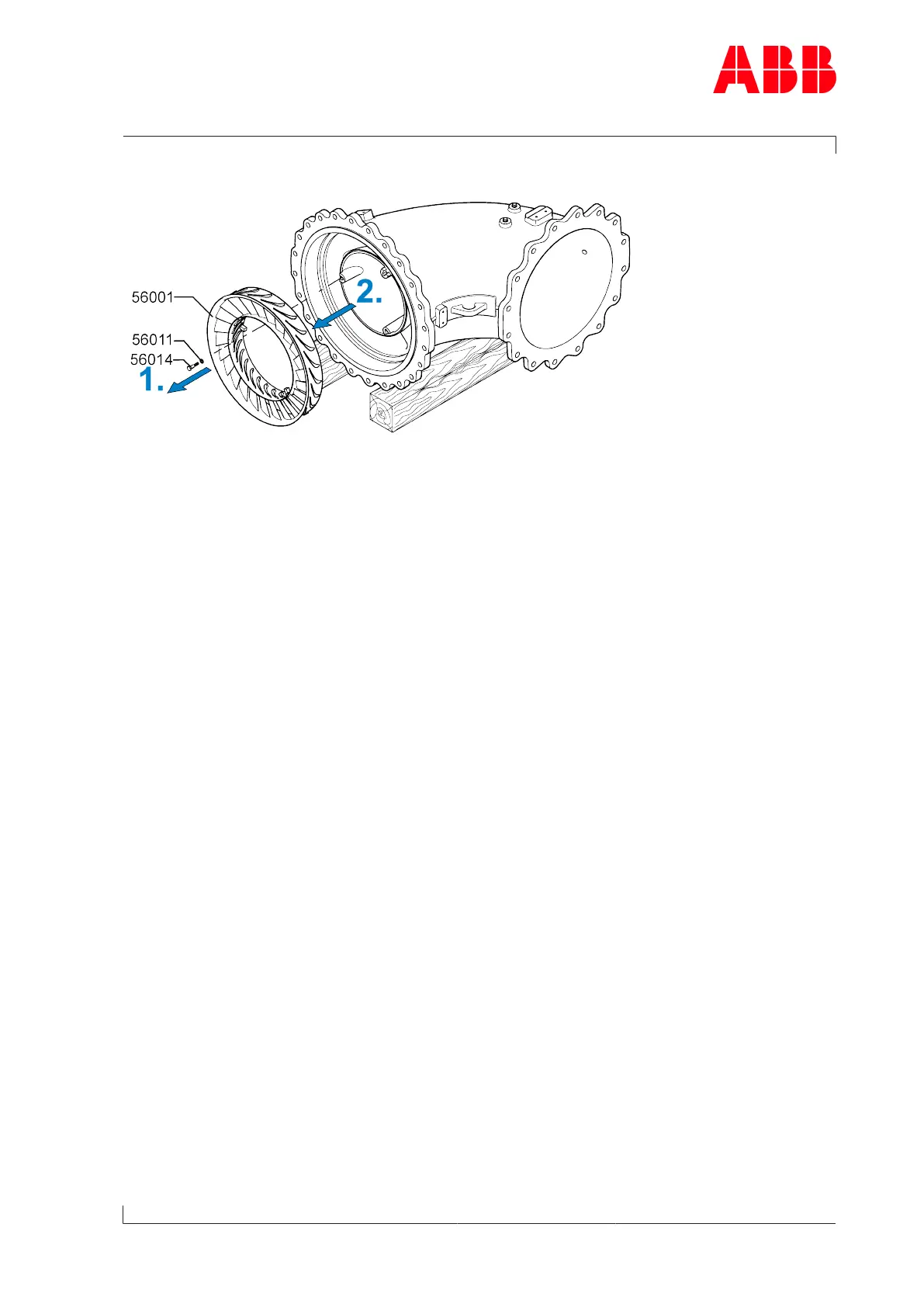

Fig.41: Dismantling the nozzle ring (A175-L and smaller)
1. Loosen screws(56014) and remove with washers(56011).
2. Remove and put down nozzle ring(56001).
Page 69 / 110
