8.14.3 Fitting the filter silencer (cast)
If the turbocharger is also fitted with a noise package, chapter Fitting the filter silencer with
noise package →88 must be observed.

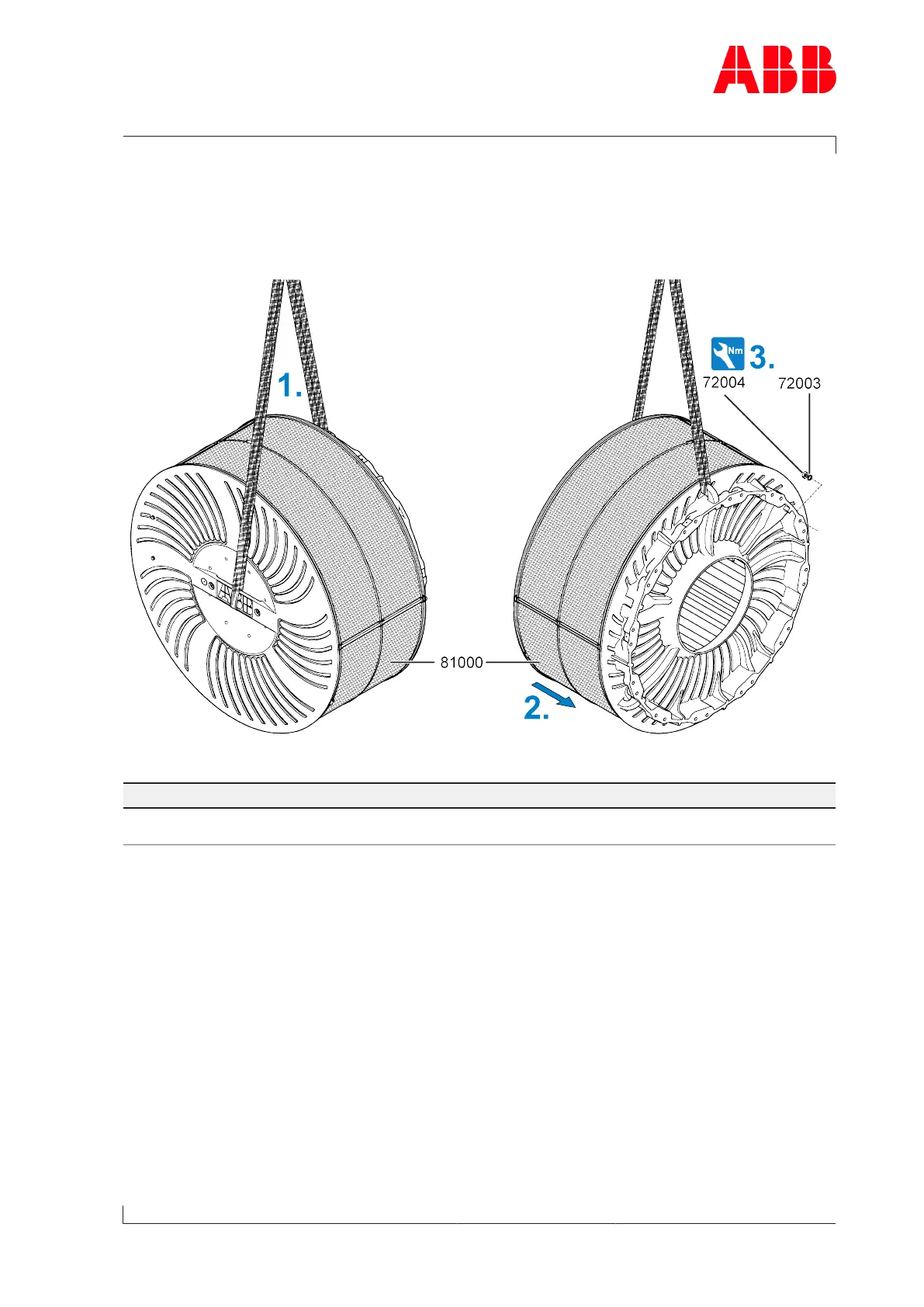

Fig.60: Fitting the filter silencer
Part number A165-L A170-L A175-L A180-L A185-L A190-L
72004 M14
130Nm
M16
200Nm
M18
300Nm
M20
420Nm
M22
570Nm
M24
710Nm
Table43: Tightening torque (72004)
1. Attach the lifting gear to the front lug and rear eyelet of the filter silencer (81000).
2. Position filter silencer on compressor casing.
3. Fit nuts (72004) with washers(72003) and tighten.
u Fit insulation as far as necessary.
