8.8 Dismantling the insulation, the gas inlet casing
and the nozzle ring (A175-L and smaller)
Dismantling the insulation
NOTICE
Dry cleaning
The dry cleaning does not have to be removed to dismantle the insulation.

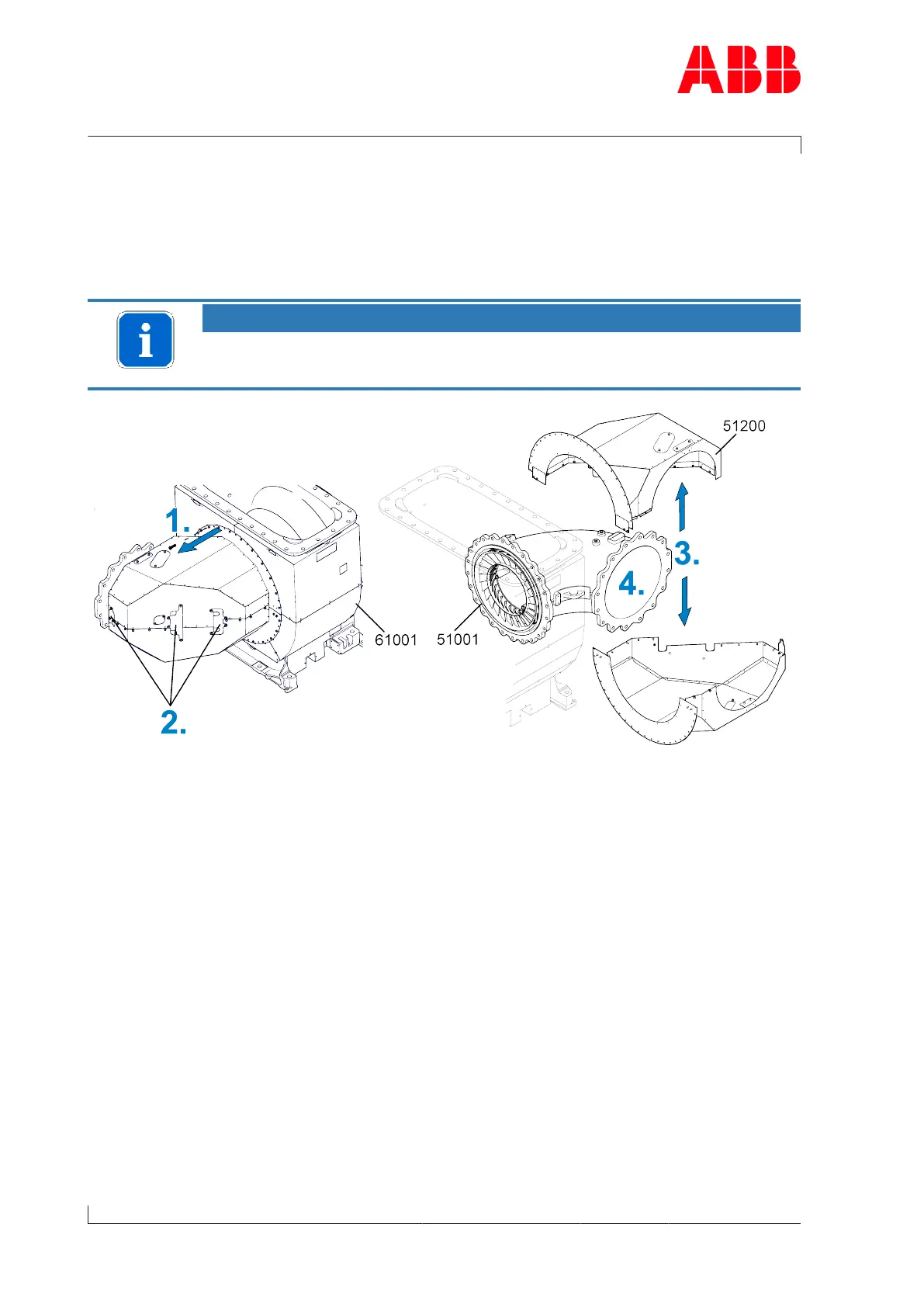

Fig.38: Removing the insulation (A175-L and smaller).
1. Loosen and remove screws of insulation jackets(51200) from gas outlet casing(61001).
2. Loosen and remove all connecting plates of insulation jackets.
3. Remove insulation jackets.
4. Detach flange connection between gas inlet casing (51001) and bellows.
