Dismantling the gas inlet casing (A175-L and smaller) – screwed variant

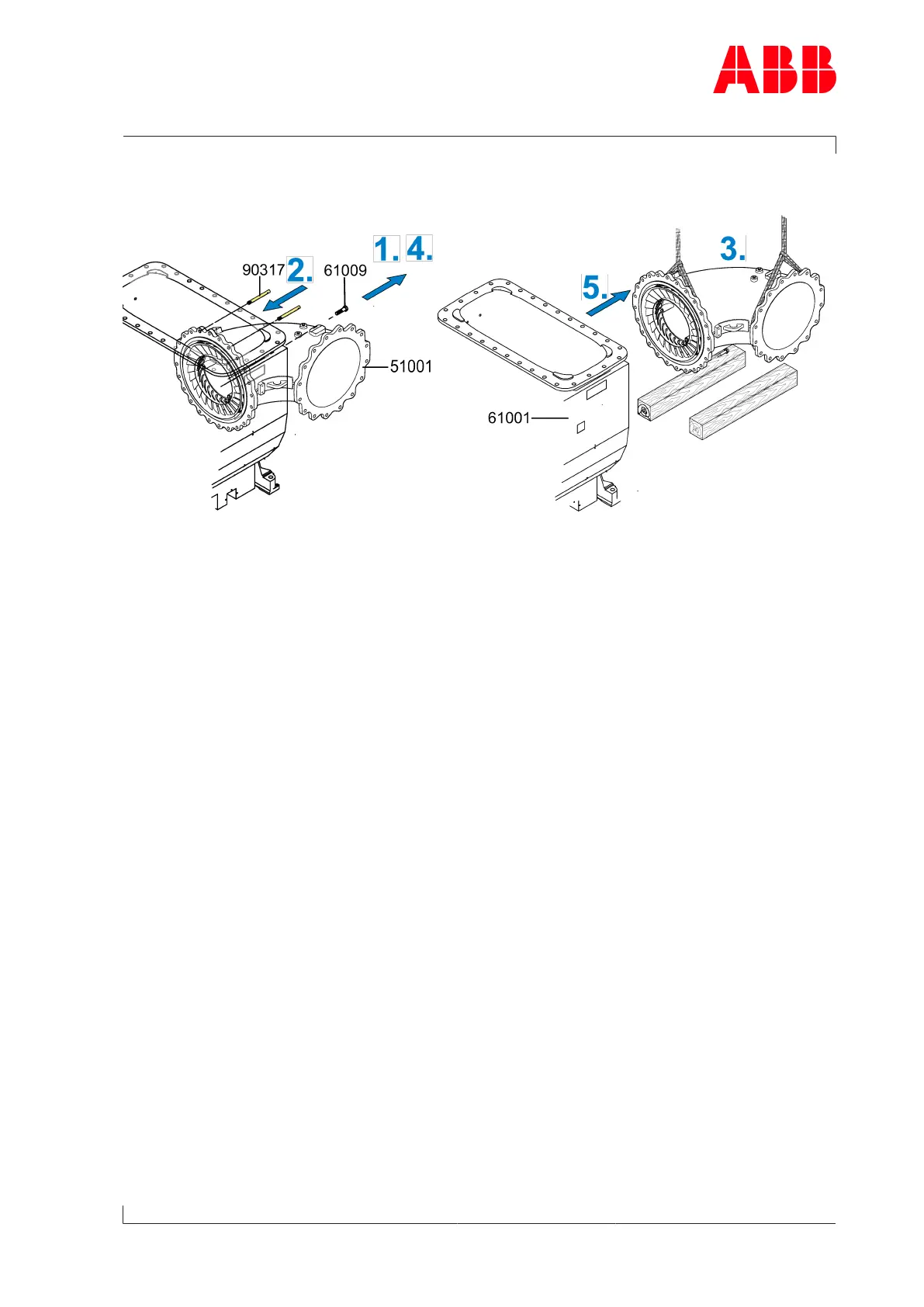

Fig.39: Dismantling the gas inlet casing (A175-L and smaller) – screwed variant
u If one of the screws (61009) shears off when loosening, an ABB Turbocharging Service
Station should be contacted.
1. Loosen crosswise and remove all but two opposite screws(61009).
2. Fit two guide studs(90317) in the upper area on the gas outlet casing.
3. Loop around the gas inlet casing(51001) with lifting gear.
4. Loosen and remove remaining screws(61009).
5. Carefully move out gas inlet casing and put down, remove guide studs.
