Mounting AC 800M Units onto DIN-Rail Section 2 Installation
52 3BSE 027 941 R301
Removing Units Complete with Baseplates
Use the procedure below to remove a unit, complete with baseplate:
1. Isolate the power supply to the controller units.
2. Remove any detachable cables from the appropriate unit baseplate.
3. Rotate the locking device to the SLIDE position (2) on the unit baseplate,
see Figure 8 on page 51.
4. Gently ease the unit/baseplates sideways in order to release the contacts of the
unit baseplate being removed.

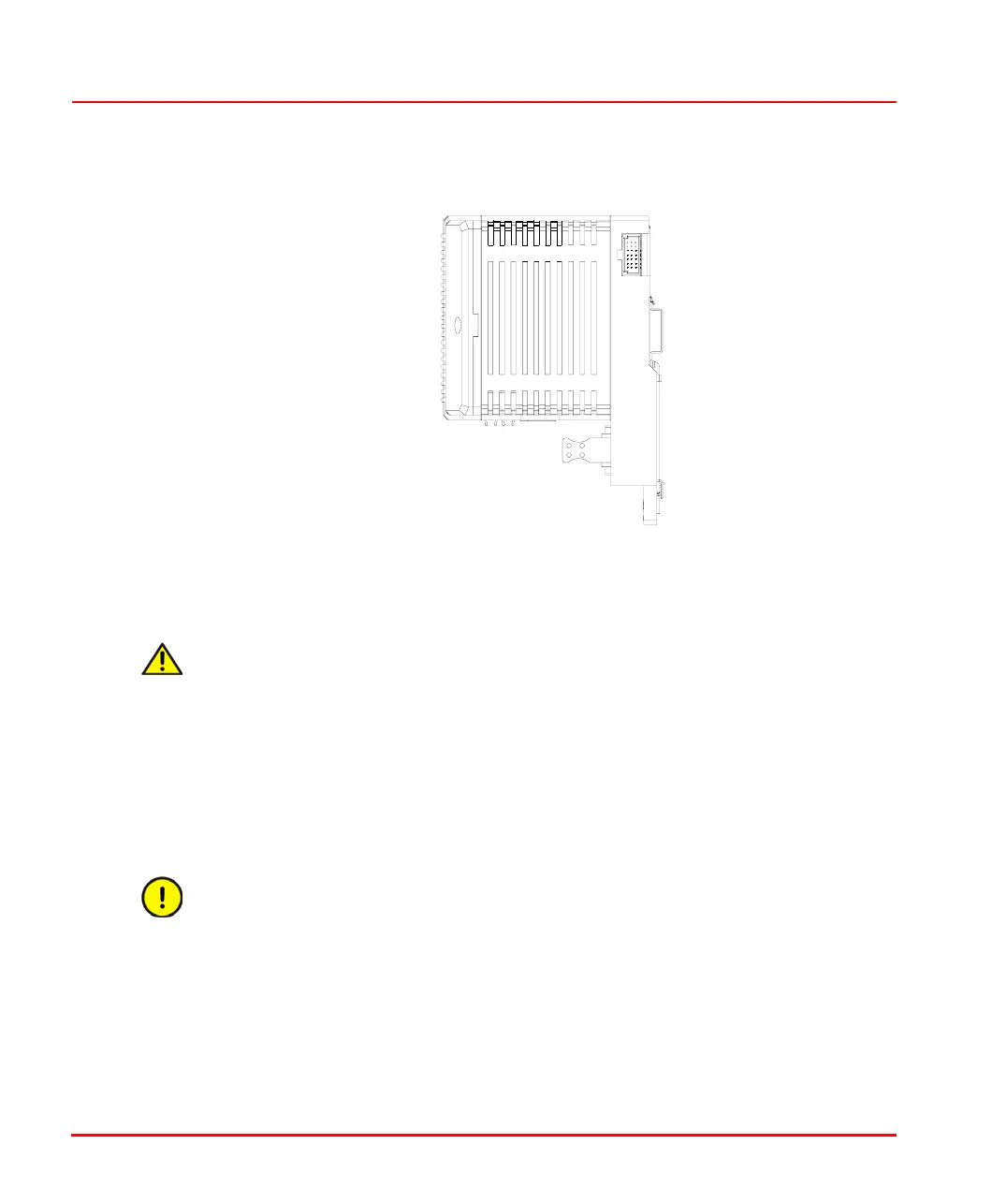

Figure 10. AC 800M Controller – Side View
The AC 800M units must be disconnected from the power source before removing
them from a DIN-rail!
In order to provide adequate access and removal space, note that the SLIDE
sequence must be carried out on the unit baseplates adjacent to the unit that is
to be removed.
