Section 2 Installation Mounting AC 800M Units onto DIN-Rail
3BSE 027 941 R301 53
5. Turn the locking device anti-clockwise to the OPEN position (1) and ease the
unit baseplate outward and upward at the base. Lift the unit to remove it from
the DIN-rail.
The unit baseplates are easily disconnected from each other by gently prying
them apart with a blade screwdriver (see Figure 11 on page 53).

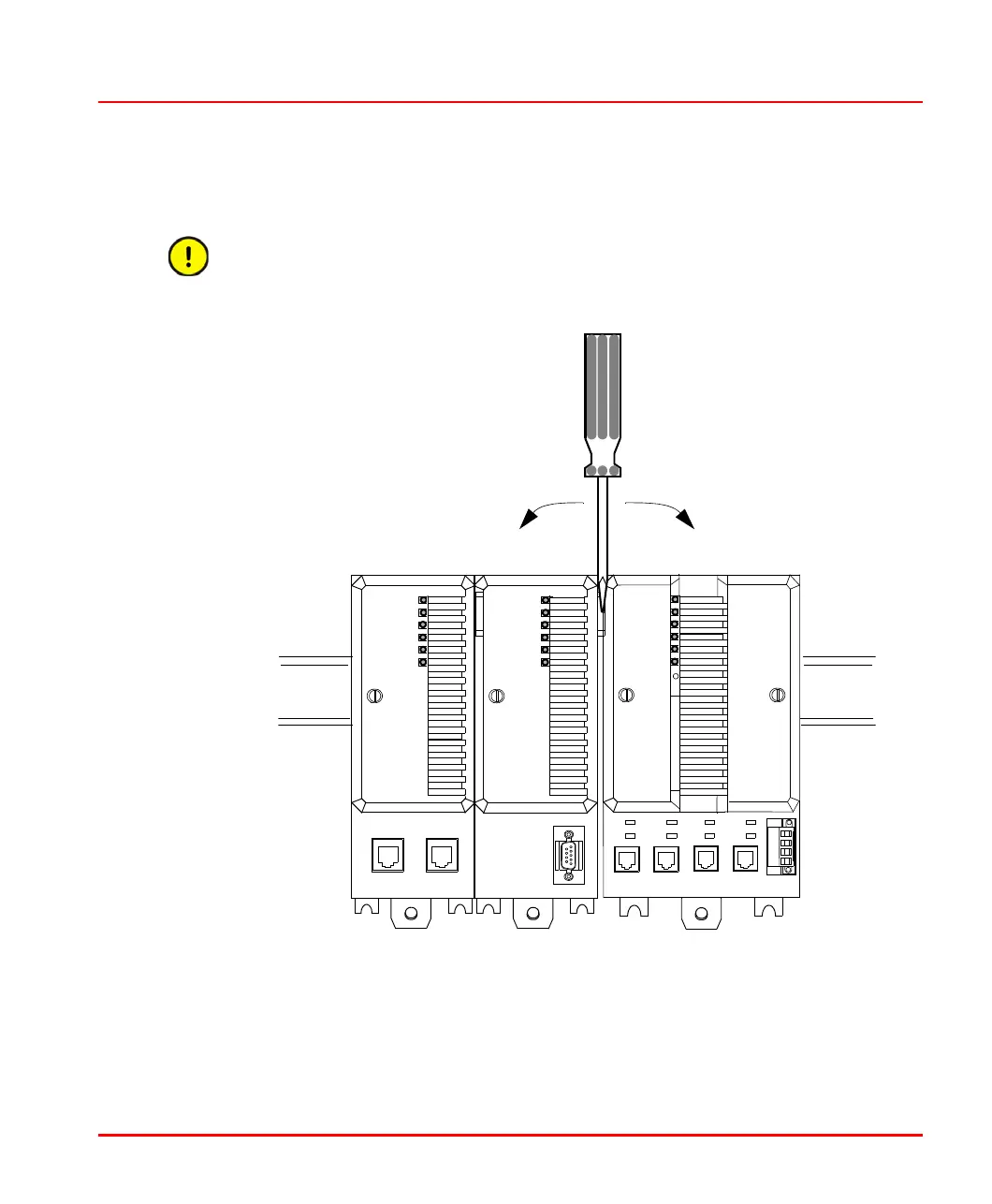

Figure 11. Separating the Baseplates
