Section 2 Installation Mounting AC 800M Units onto DIN-Rail
3BSE 027 941 R301 55
will occur. If difficulty is experienced with installing a unit onto a baseplate, this is a
positive indication that the Alpha code lock/unit compatibility is incorrect.
See Figure 12 on page 55 for further details of the Alpha code lock arrangement.
The mechanical keys are delivered pre-set and must not be altered. This prevents the
removable interface being placed on the wrong type of baseplate.

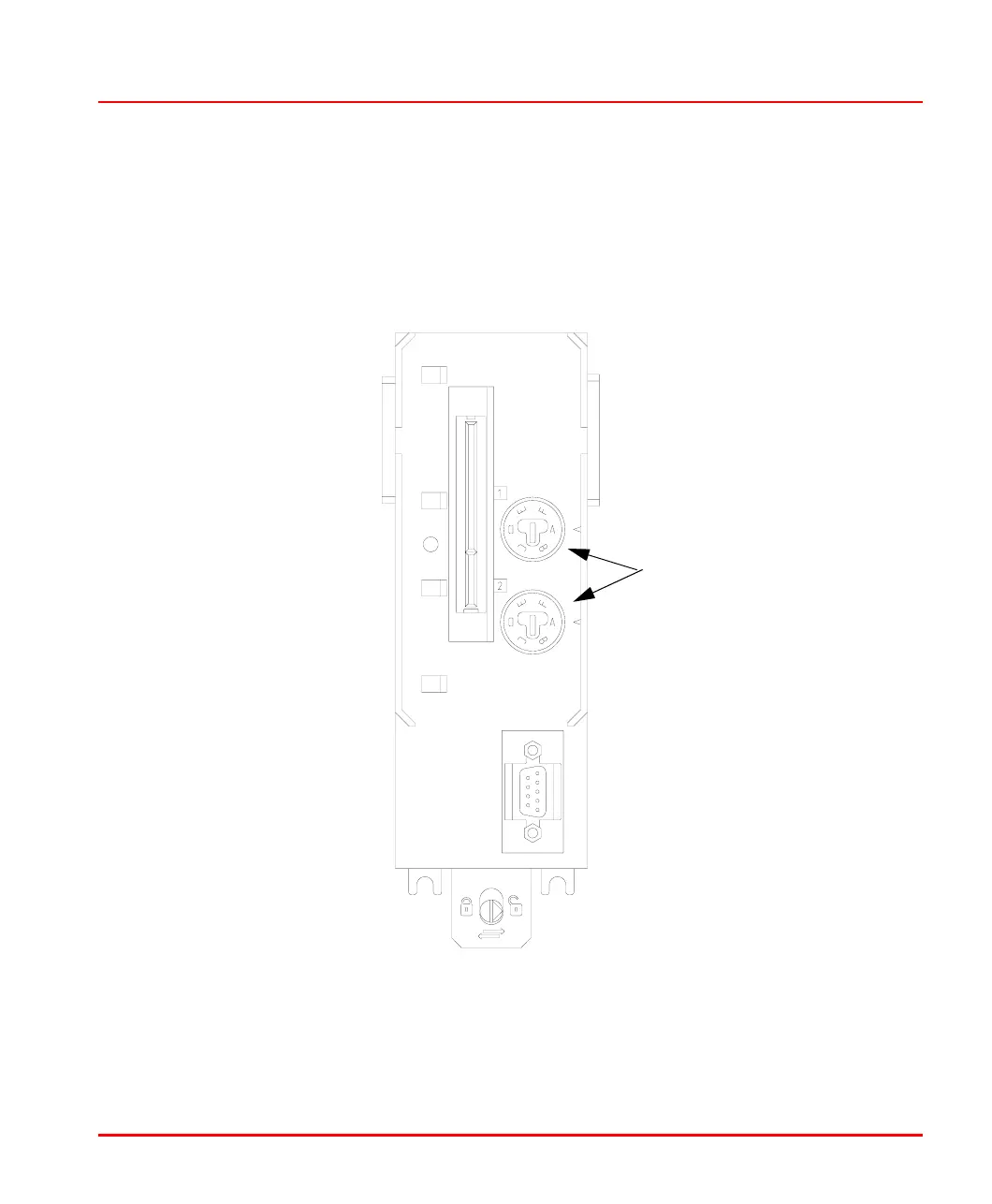

Figure 12. Unit Baseplate – Alpha Code Lock Arrangement
Pre-Set
Alpha Code Key
