ACS 400 User’s Manual 5
Units with IP 54/NEMA Type 12 & NEMA Type 4 Enclosures
The IP 54/NEMA Type 12 & 4 protection class has a different outer plastic cover. The IP 54/NEMA
Type 12 & 4 enclosures use the same internal plastic shell as the IP21 enclosure, but an internal
fan is added to improve cooling. This structure increases the dimensions compared to the IP 21
enclosure, but does not require a de-rating.

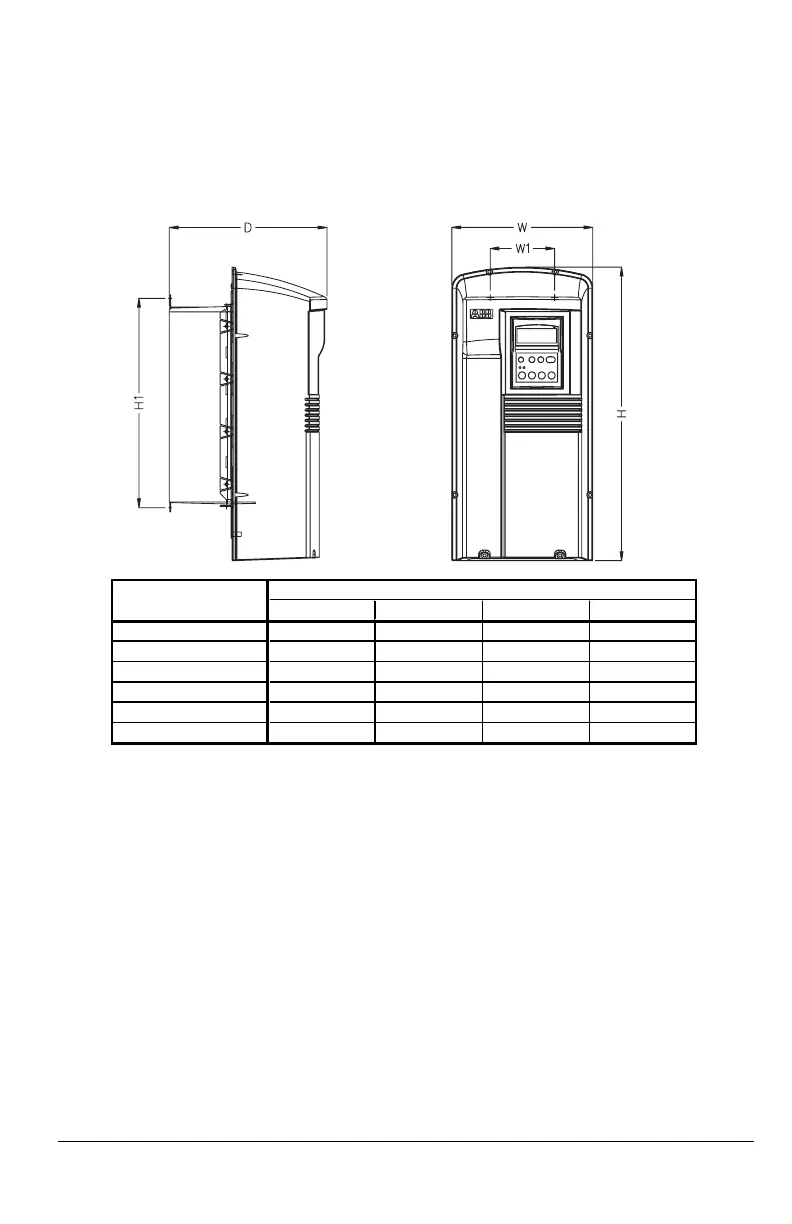

Figure 3 IP 54/NEMA Type 12 & 4 enclosures
A complete set of dimensional drawings for the NEMA Type 12 & 4 ACS 400 drives is located in
“Appendix D” on page 167.
R1 R2 R3 R4
W 8.43" / 214 8.43" / 214 10.09" / 256 10.09" / 256
W1 3.86" / 98 3.86" / 98 6.30" / 160 6.30" / 160
H 17.72" / 450 21.65" / 550 25.27" / 642 29.21" / 742
H1 12.52" / 318 16.42" / 417 20.79" / 528 24.38" / 619
D 9.43" / 240 9.96" / 253 11.00" / 280 12.28" / 312
Mass (lb / kg) 12.8 / 5.8 19.8 / 9 40.8 / 18.5 59.5 / 27
Frame Size, IP54 / NEMA 12Dimensions
Reference (in / mm)
