143 ACS2000 AFE 1MVA UM 3BHS297030 ZAB E01 REV. J
—

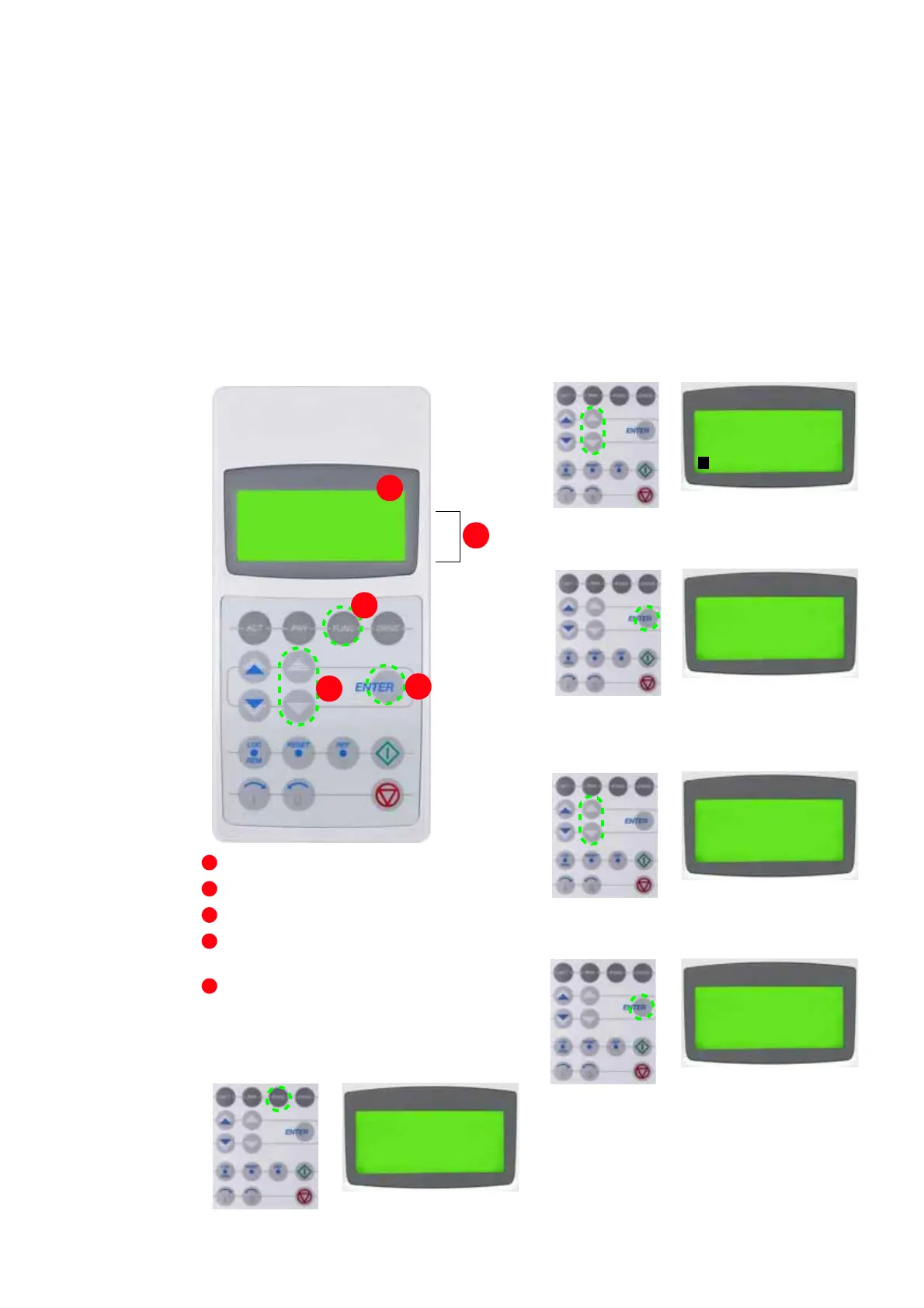

9.7 Functions mode
9.7.1 Overview
The functions mode is used to set the display con-
trast.
Status line
Selectable functions
Selection key for functions mode
Slow navigation key for selecting a line (and
adjusting the contrast)
Enter key for confirming the selection
9.7.2 Adjusting the display contrast
1. To enter the functions mode, press the FUNC
key.
2. To select the contrast adjustment function,
press the slow navigation keys until the blinking
cursor reaches the CONTRAST line.
3. To enter the contrast setting function, press
the ENTER key.
4. To change the contrast value, press a slow navi-
gation key.
5. To confirm the selection and to return to the
actual signals display, press the ENTER key.
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
4
CONTRAST
1
2
3
4
5
1
2
3
4
5
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
4
CONTRAST
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
4
CONTRAST
1 L ->
0.0 rpm
CONTRAST
[4]
1 L ->
0.0 rpm
CONTRAST
[6]
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
6
CONTRAST
