2.7 Cooling system
2.7.1 Fan unit configurations
The drive and the integrated transformer are each
equipped with fan units. Optionally, the drive and
the integrated transformer can have a redundant
fan configuration, ensuring full operation in the
event of fan failure.
The drive can be equipped with fan units of the fol-
lowing types:
—
References
—

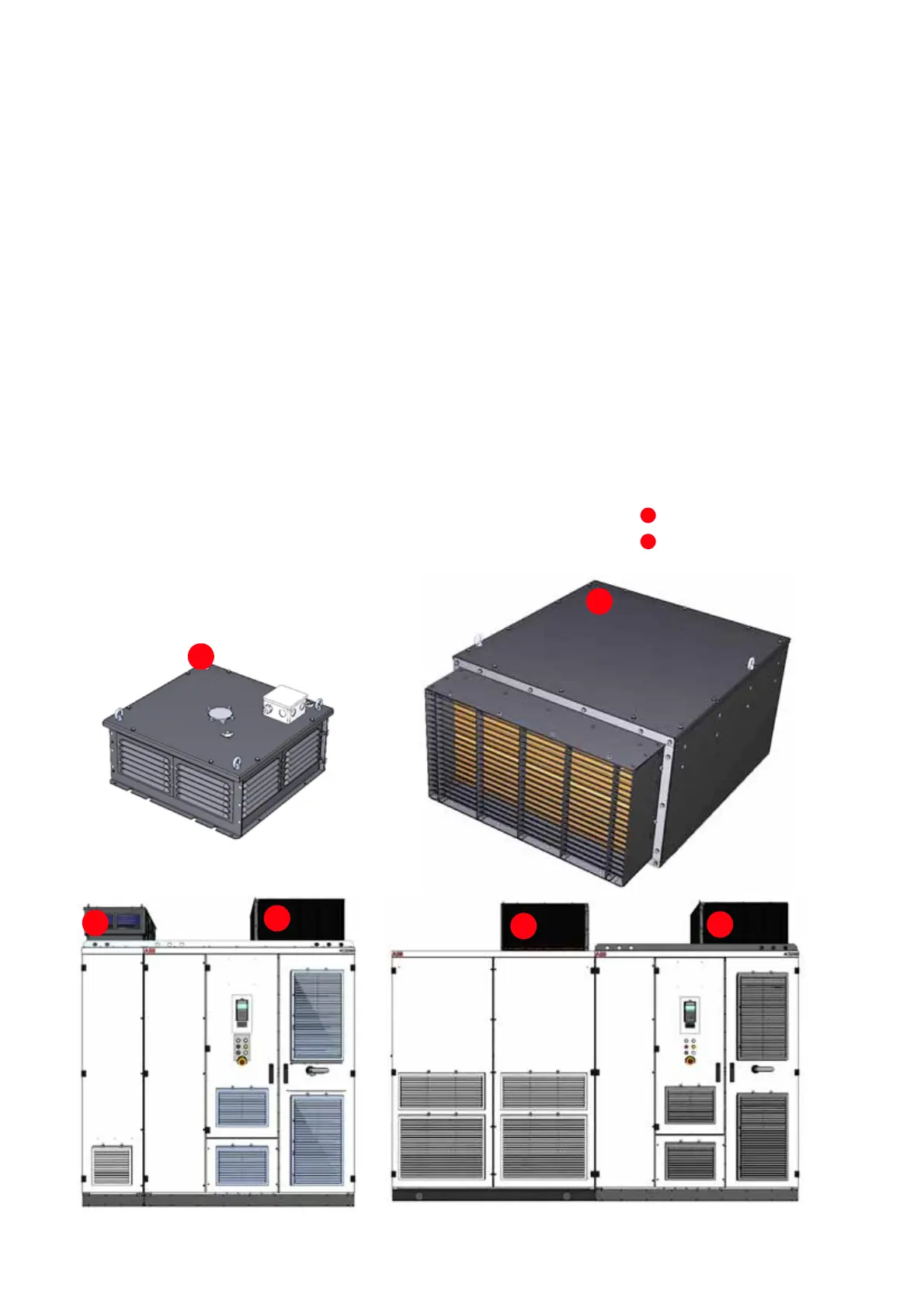

2-15 Fan unit types
—
2-15
ACS2000 DTL
ACS2000 with integrated transformer
1
1
1
1
2
2
Fan unit type 1
Fan unit type 2
1
2
