51 ACS2000 AFE 1MVA UM 3BHS297030 ZAB E01 REV. J
3.2.1 Local control panel
The local control panel on the door of the control
compartment serves as the basic user interface for
monitoring, control, operation of the drive, and
setting of parameters.
For further information, see Chapter 8 - Operation
and Chapter 9 - CDP control panel.
!
For information on the devices present in
the control compartment of the drive, see
Appendix D – Wiring diagrams.
!
For 24 V circuits the ATO style blade fuses
rated 3 A, 32 V are used.
—
References
—

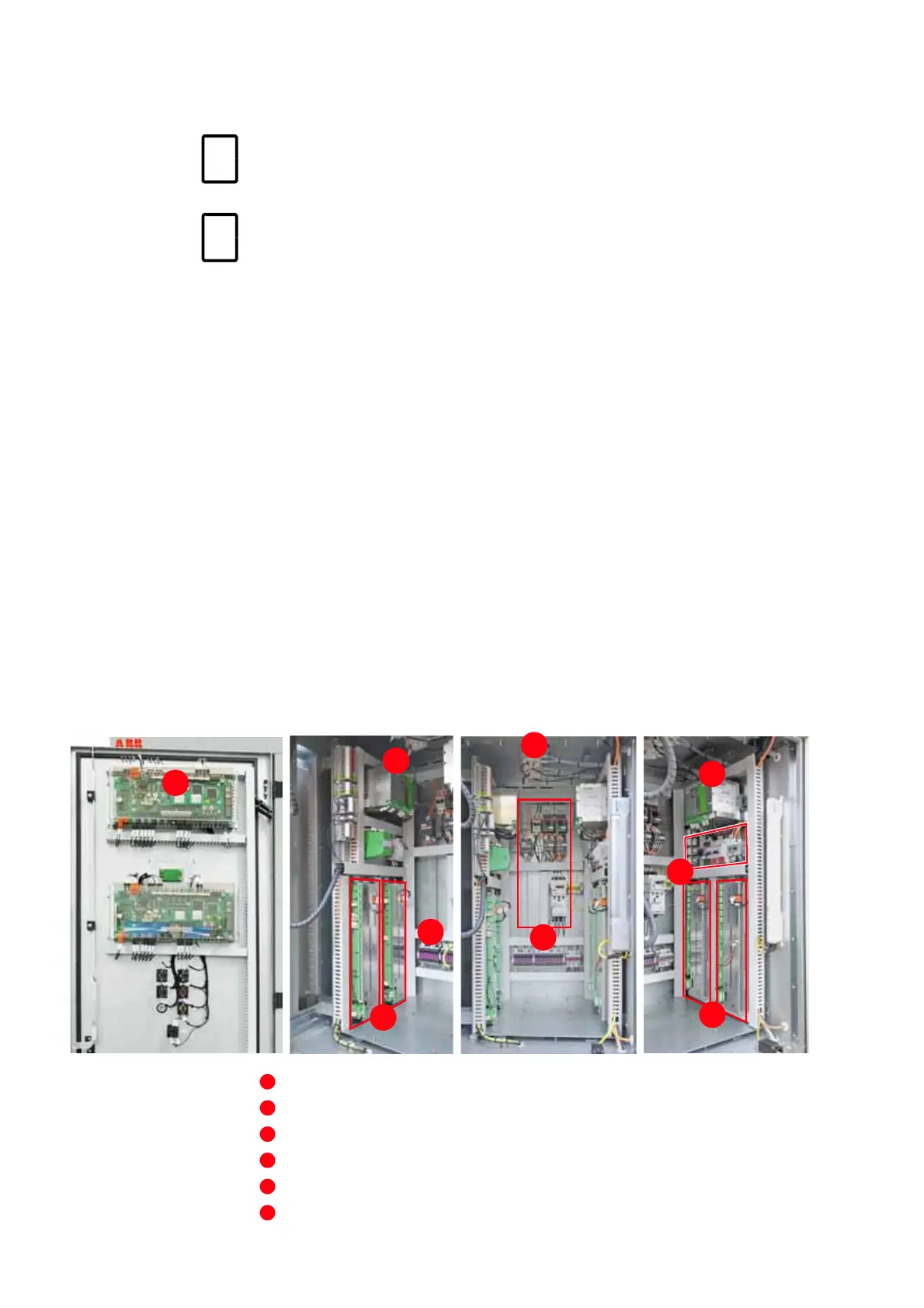

3-3 Control compartment
details
—
3-3
AMC circuit boards
IOEC modules with analog and digital intputs and outputs
Circuit breakers, auxiliary relays and contactors
Power supply units
Air pressure switches
24 V power distribution terminals
1
2
3
4
5
6
1
2
6
3
3
2
4
5
4
