CHAPTER 10 – PREVENTIVE AND CORRECTIVE MAINTENANCE 152
10.2 Identifying electrical
equipment
10.2.1 Device identification
To facilitate the identification in wiring diagrams
and parts lists, all devices are labeled in accor-
dance with IEC 81346-1.
10.2.2 Cables and wires
Cables and wires in the drive are equipped with
marker sleeves that carry the same identification
number as in the wiring diagrams.
10.2.3 Understanding wiring diagrams
For information on item designation and
cross-reference conventions, see the
applicable Wiring diagrams.

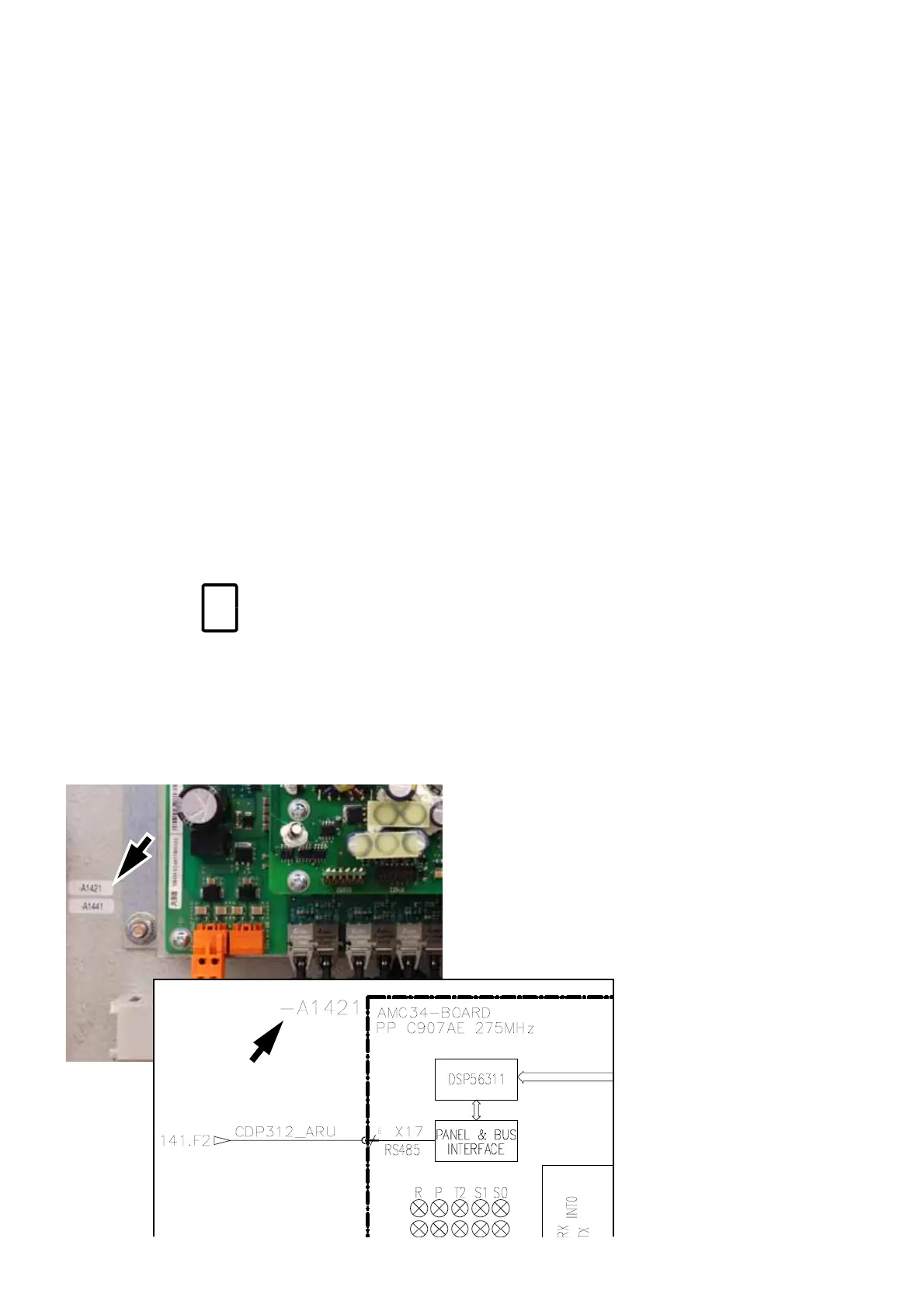

10-1 Device identification
