Mechanical installation
24
Installing the cable glands (optional, +H376)
1. Remove the sticker labeled REMOVE BEFORE USE.
2. Tighten the cable glands that you want to use with their back nuts. The tightening
torque depends on the cable gland size:
•M12: 3 N·m
•M25: 8 N·m
• M32: 10 N·m
3. Lead the cable through the gland and tighten until the gasket of the lead-through
is tightly around the cable. The cable diameter depends on the cable gland size:
• M12: 3.5…7.0 mm
• M25: 9.0…17.0 mm
• M32: 11.0…21.0 mm

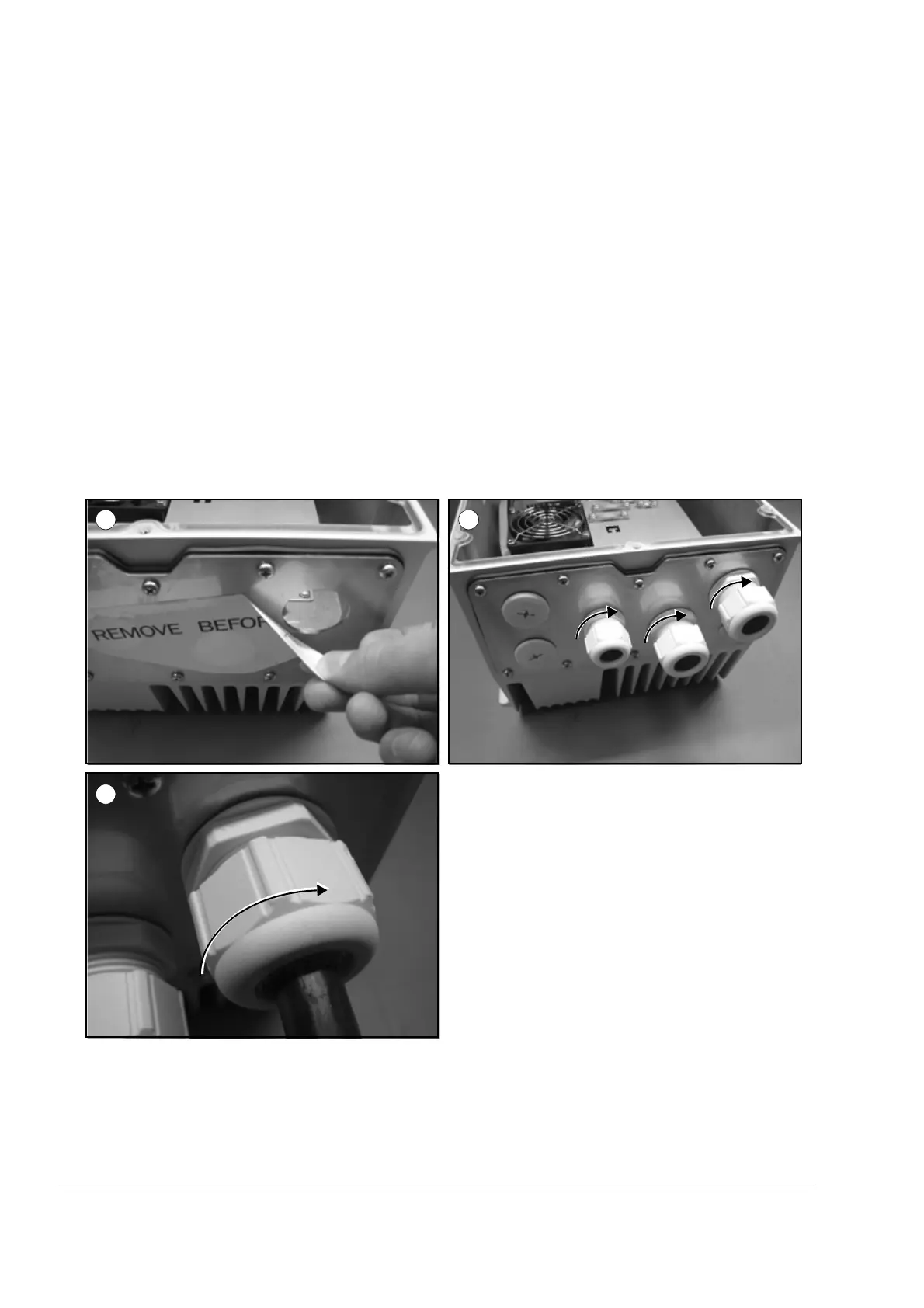

1 2
3
