Hardware description
17
Hardware description
What this chapter contains
The chapter describes the construction and type code information in short.
Overview
The ACS350 with IP66 casing is a wall mountable drive for controlling AC motors.
The construction of frame sizes R1 and R3 varies to some extent.
9 EMC filter grounding screw (EMC).
10 Varistor grounding screw (VAR)
11 Fieldbus adapter (serial communication module)
connection
12 I/O connections
13 Input power connection (U1, V1, W1), brake resistor
connection (BRK+, BRK-) and motor connection (U2,
V2, W2)
14 Clamping plate
15 Cable glands
1 Cooling element
2 Mounting holes
3 Control Panel
4 Front cover
5 Panel connection
6 Option connection
7 FlashDrop connection
8 Power OK and Fault LEDs

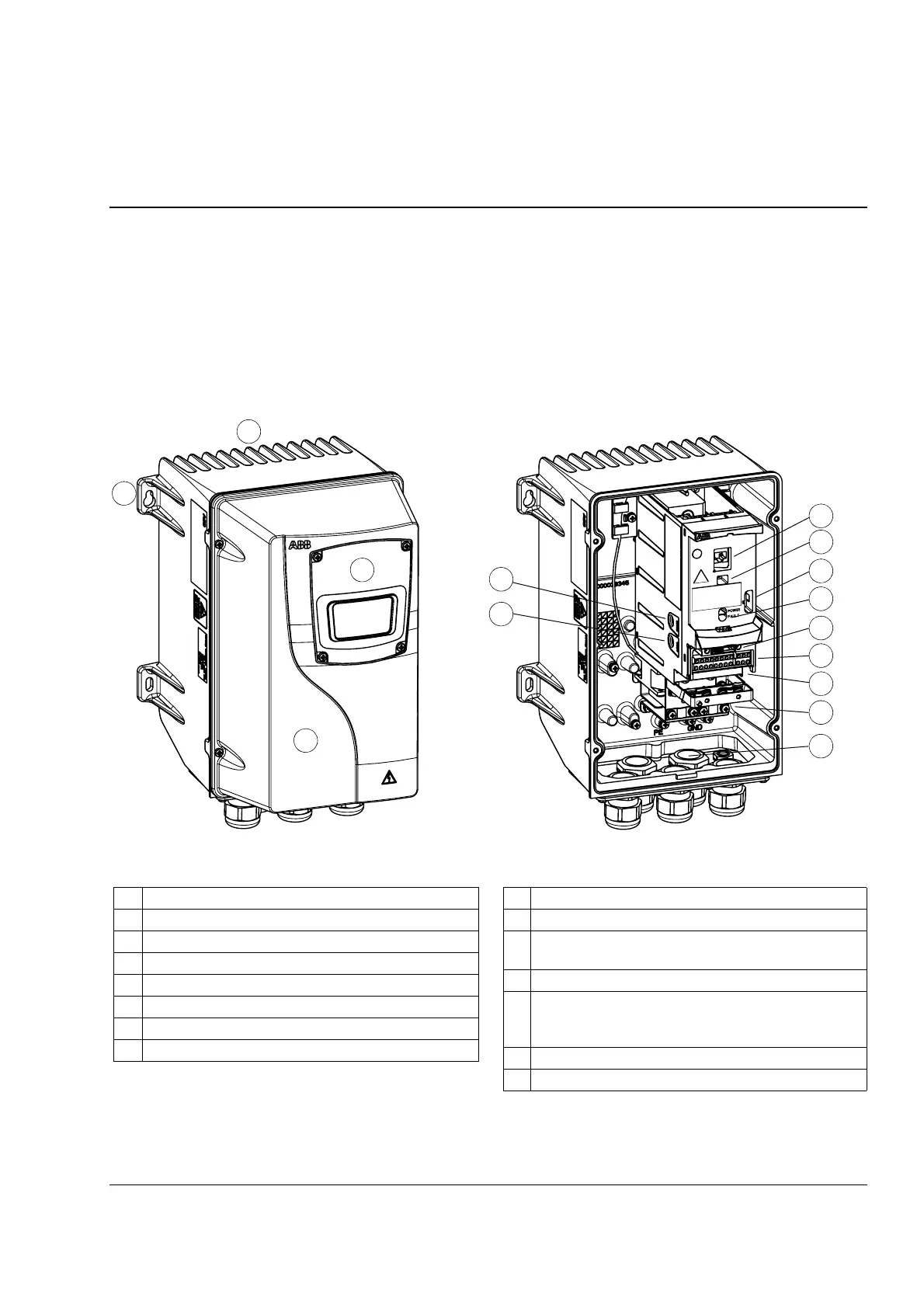

Covers off (R1)Covers on (R1)
1
2
3
4
9
5
7
6
10
11
12
13
14
15
8
