10
Slide connector
onto tubing
Slide ferrule onto tubing
Push tubing onto jetwash
port, screw connector onto
jetwash port and tighten to
recommended torque of
60cNm
1
Remove jetwash port sealing
nut and retain for further use
(
See Note below)
2
3
4
…2 MECHANICAL INSTALLATION

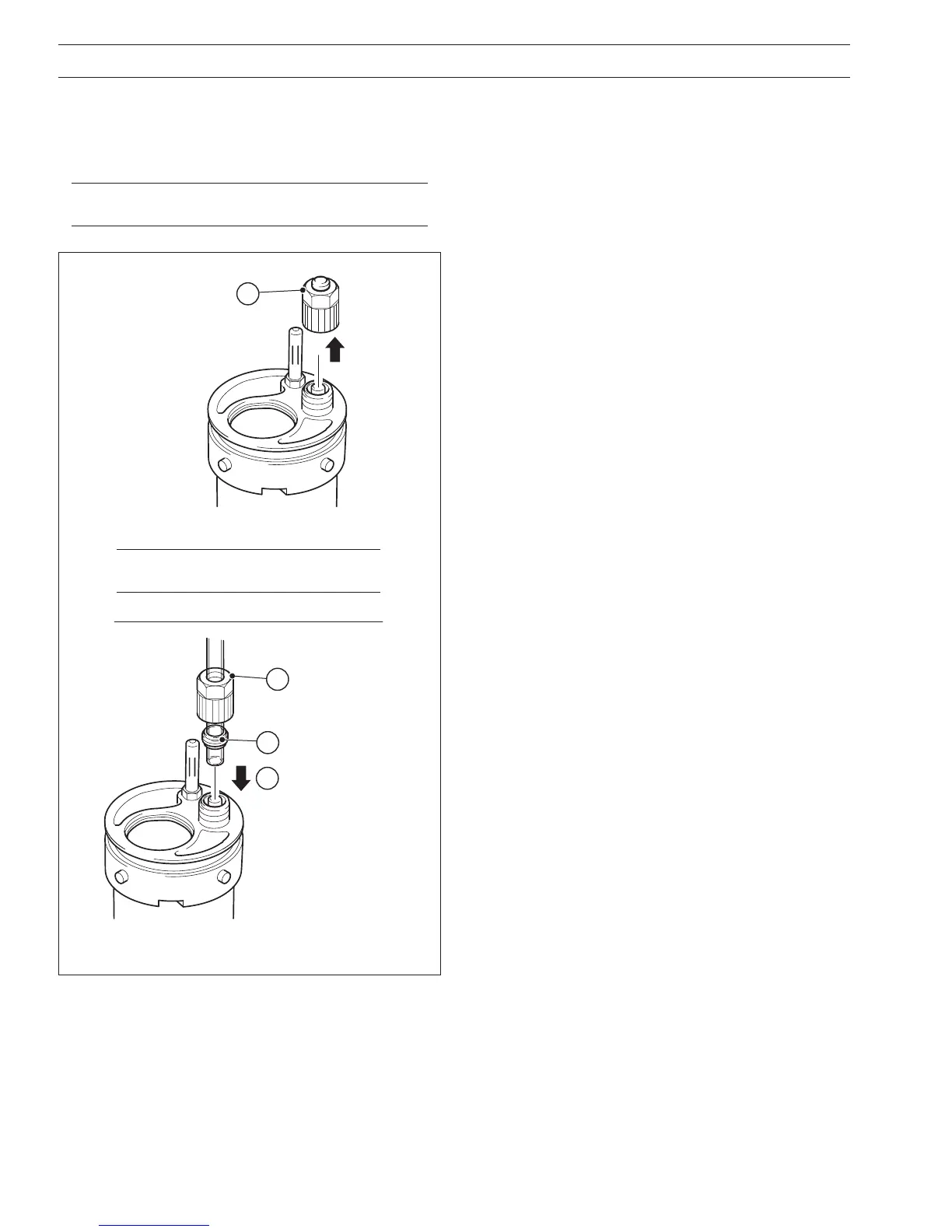

Fig. 2.9 Fitting Jetwash Supply Tubing
2.5 Jetwash System Assembly – Fig. 2.9
The system is supplied with a blanking plug fitted to the jetwash
tubing connector. If the jetwash system is to be used, remove
the plug and fit the jetwash supply tube as shown in Fig. 2.9.
Note. Recommended tubing is 6mm OD semi-rigid
polyethylene tube (part no. 0212035).
Note. The seal nut must be fitted when
the jetwash tubing is not being used.
