ABB AP200 Series User Manual

5
2.1.3 Model AP203 Flanged Dip (Immersion) System – Fig. 2.3
This system is designed to be installed over an unpressurized tank or channel. A sliding flange is supplied to enable adjustment of the
immersion depth. A suitable mounting bracket or support must be supplied by the user.

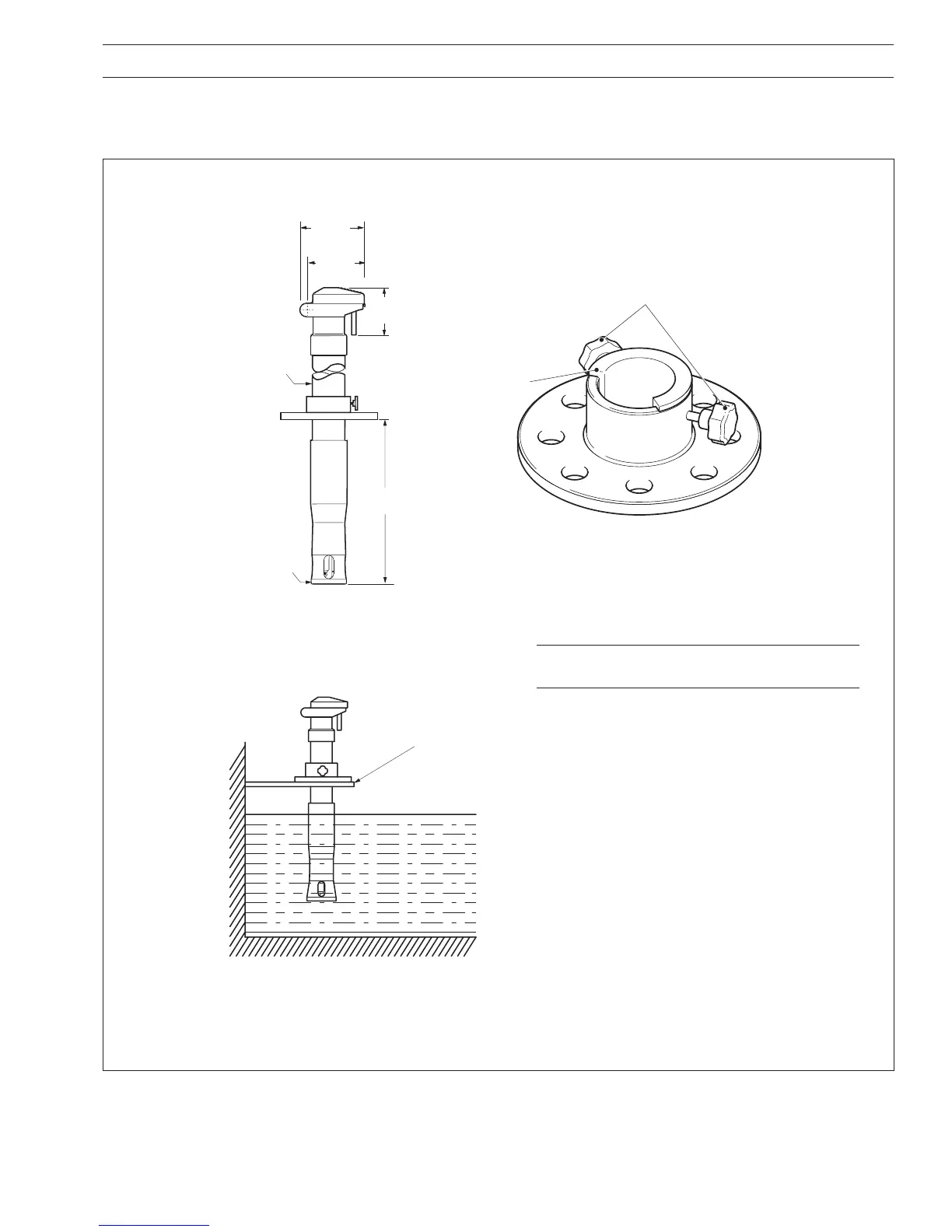

Fig. 2.3 Model AP203 Flanged Dip (Immersion) System
Typical Installation
Dimensions
Mounting Flange
100
(3.94)
90
(3.54)
1, 2 or 3 m
(39.37, 78.74, 118.11)
74
(2.91)
ø50
ø56
Mounting bracket
supplied by user
Thumb-screws
(
see Note below)
Insert
2 MECHANICAL INSTALLATION…
Note. Ensure the thumb-screws compress the
insert when clamping the flange to the dip tube.
Dimensions in mm (in.)
