AquaMaster 3
Electromagnetic flowmeter 2 Mechanical Installation
8 User Guide OI/FET2XX–EN Rev. E

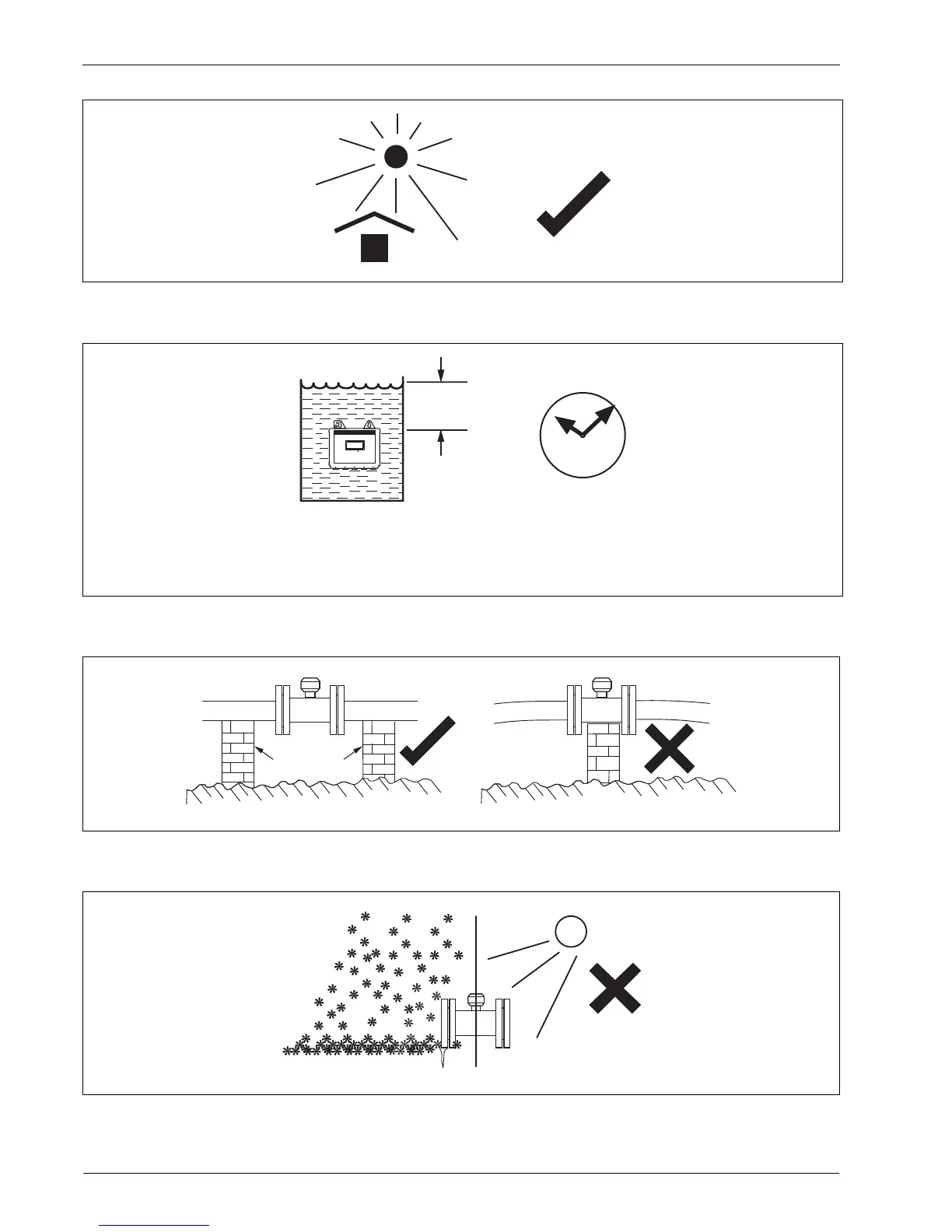

Fig. 2.9 Shade
Fig. 2.10 Within Environmental Rating
Fig. 2.11 Above Ground
Fig. 2.12 Temperature Difference
<2 m 78 in.)
Submerged
– 9 Months
Accrued Time
IP68 (NEMA 6P)
ENCLOSURE 6P
Not applicable to GSM Integral Aerial Installations – see section 2.4.1, page 13
Supports
