AquaMaster 3
Electromagnetic flowmeter 2 Mechanical Installation
User Guide OI/FET2XX–EN Rev. E 7

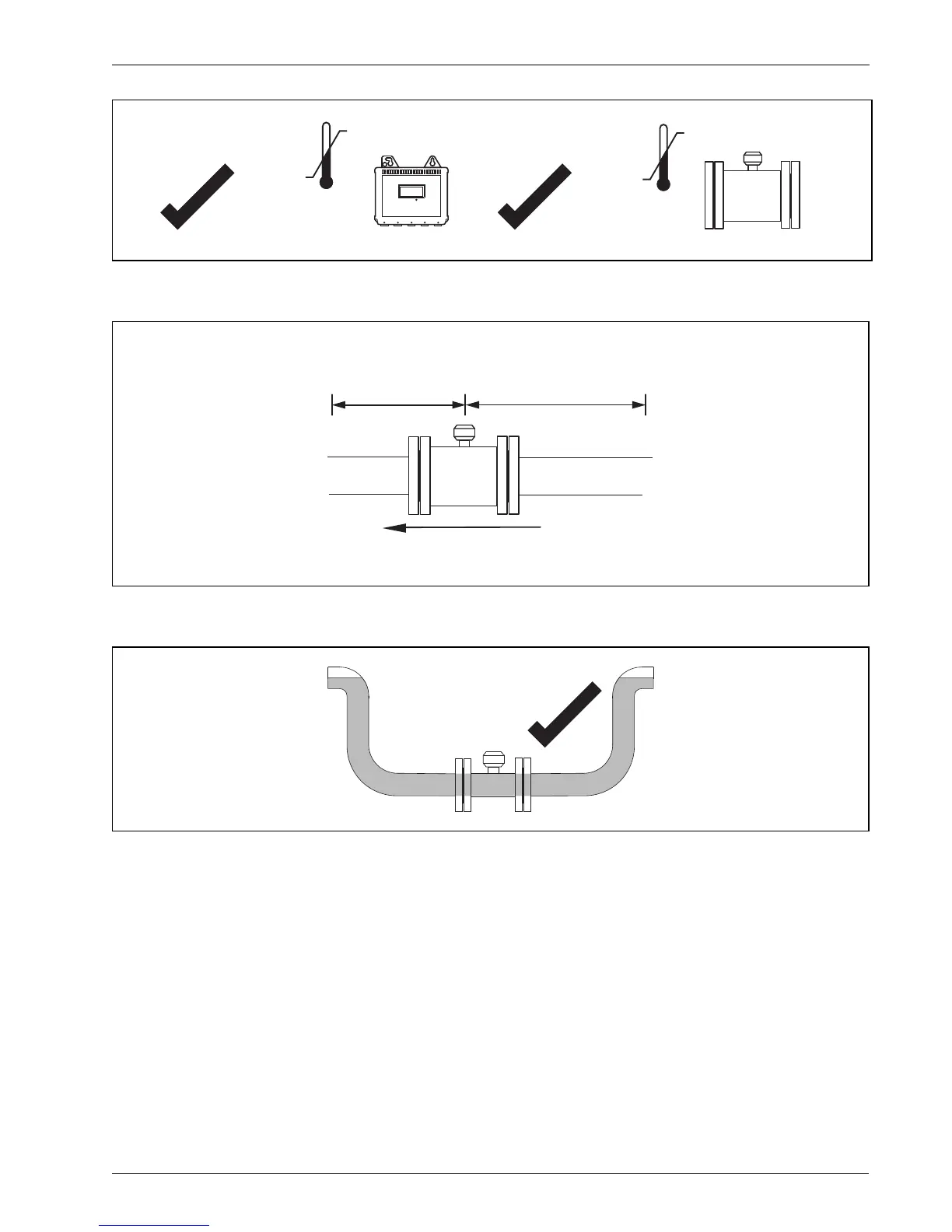

Fig. 2.6 Within Temperature Limits
Fig. 2.7 Straight Pipe Requirements
Fig. 2.8 Fluid Level
60 °C (140 °F) Maximum
–20 °C
(–4 °F)
Minimum
–10 °C
(14 °F)
Minimum
70 °C (158 °F) Maximum
0 Pipe Diameters 0 Pipe Diameters
Minimum Minimum
Flow Direction
2 Pipe Diameters 5 Pipe DiametersFull Bore Sensor (MM/GF)
Reduced Bore Sensor (MM/GA)
