AquaMaster 3
Electromagnetic flowmeter 5 Specification
User Guide OI/FET2XX–EN Rev. E 45

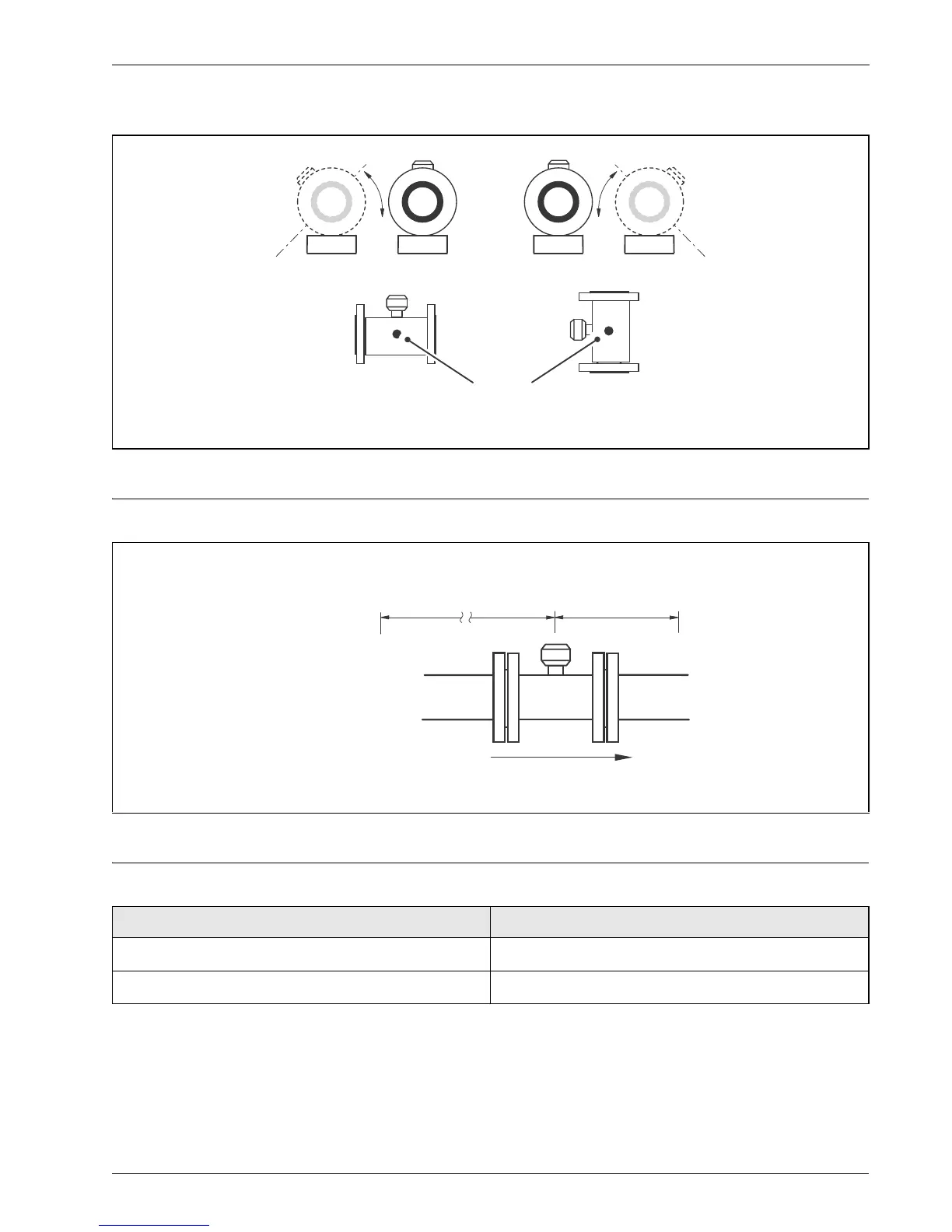

Mounting
Pipe conditions
Pressure loss (MM/GA only)
Flow Rate Pressure Loss in bar (psi)
Q
3
<0.63 (9.1)
Q
3
/2 <0.16 (2.3)
Sensor Electrodes
45 ° Maximum
Flow Direction
0 x pipe dia.
minimum
0 x pipe dia.
minimum
MM/GA
>5 x pipe dia. >2 x pipe dia.
MM/GF
